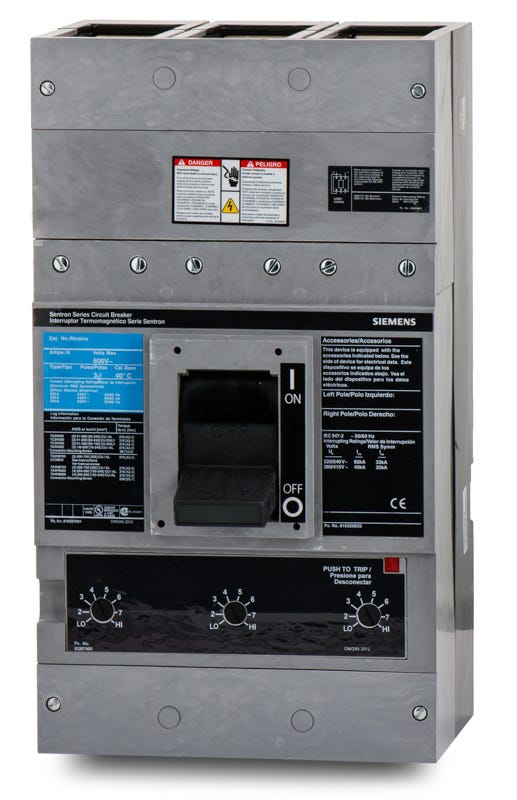

Siemens HPD63F160 Frame Only
The Siemens HPD63F160 is a circuit breaker frame with a current rating of 1600 Amps and a voltage rating of 600VAC. It has an interrupting rating of 50kAIC at 600V, 65kAIC at 480V. The HPD63F160 has a feed-thru connection type and includes long time and instantaneous trip functions. This is a Frame Only. Order trip separately.
Specifications
| Amperage | 1600 A |
|---|---|
| Voltage | 600VAC |
| Series | Sentron |
| Poles | 3 |
| Phase | 3 |
|---|---|
| Interrupting Rating | 50kAIC at 600V, 65kAIC at 480V |
| Frame Type | HPD |
|---|---|
| Connection Type | Feed-Thru |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 6.19 |
| Width (in) | 9 |
| Height (in) | 16 |
| Wire Gauge | 300 to 500KCM, Cu/Al |
| Protection | Thermal Magnetic |
|---|---|
| Functions | Long Time and Instantaneous Trip |
| Approval | UL, IEC |
|---|---|
| Standards | RoHS |
| Temperature Rating | 40 °C |
| Brand | Siemens |
|---|---|
| MPN | HPD63F160 |
| UPC | 783643226197 |
