Siemens HRD63F200 Circuit Breaker
- 3 Pole
- Bolt-On
Quantity

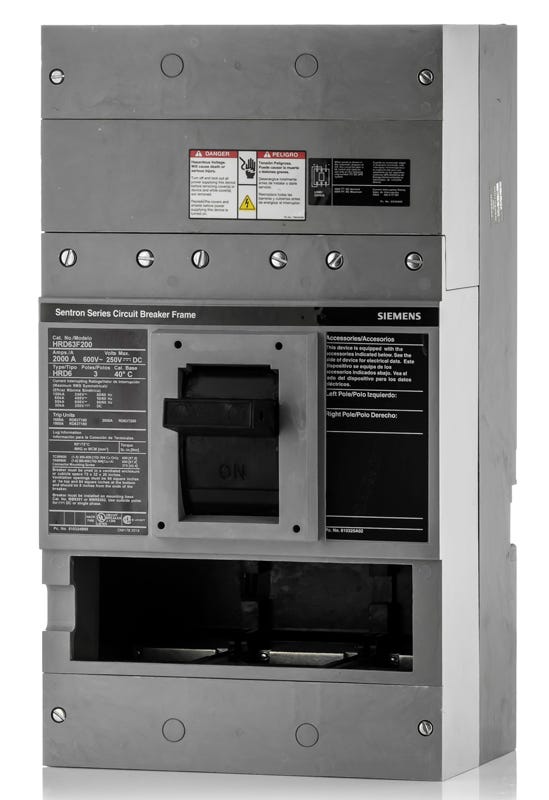

Siemens HRD63F200 3 Pole Circuit Breaker
New
Quantity
Description
Siemens HRD63F200 3 Pole Circuit Breaker
The Siemens HRD63F200 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 2000 Amps and a voltage rating of 600V. It has an interrupting rating of 65kA@480V. The HRD63F200 has a bolt-on connection type and includes LI - long time and instantaneous functions.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | HRD63F200 |
| Series | HRD |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600 V |
| Phase | 3 |
Product FAQs
6 answersWhat frame family does the HRD63F200 belong to?
The HRD63F200 is part of the Siemens Sentron RD frame family. It is designed for high-capacity industrial applications and accepts interchangeable trip units.
What does the 'H' in the HRD63F200 catalog number stand for?
The 'H' indicates that this is a high-interrupting capacity version of the standard RD frame, which provides the elevated 65kA interrupting rating at 480V.
What does the 'F' in the HRD63F200 catalog number indicate?
In Siemens Sentron nomenclature, the 'F' designates the breaker frame. While this catalog number represents the frame itself, it must be paired with a compatible trip unit to provide the specified protection functions.
What do the LI trip functions on this breaker indicate?
The LI designation stands for Long-Time and Instantaneous trip functions. This provides both delayed overload protection (Long-Time) and immediate short-circuit protection (Instantaneous).
Is the Siemens HRD63F200 compatible with older I-T-E systems?
Yes, Siemens Sentron RD frame breakers are fully backward compatible and serve as direct replacements for legacy I-T-E HRD6 frame circuit breakers with matching specifications.
Can the trip unit on the HRD63F200 be swapped out?
Yes, the Siemens RD frame features an interchangeable trip unit design. This allows panel builders to change the trip rating or protection type without replacing the entire breaker frame.
