Siemens JXD22B300 - 300A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU JXD22B300
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens JXD22B300 - 300A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU JXD22B300
Select Item Condition
Earn 1650 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens JXD22B300 - 300A 2 Pole Molded Case Circuit Breaker

New

$1650.60 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

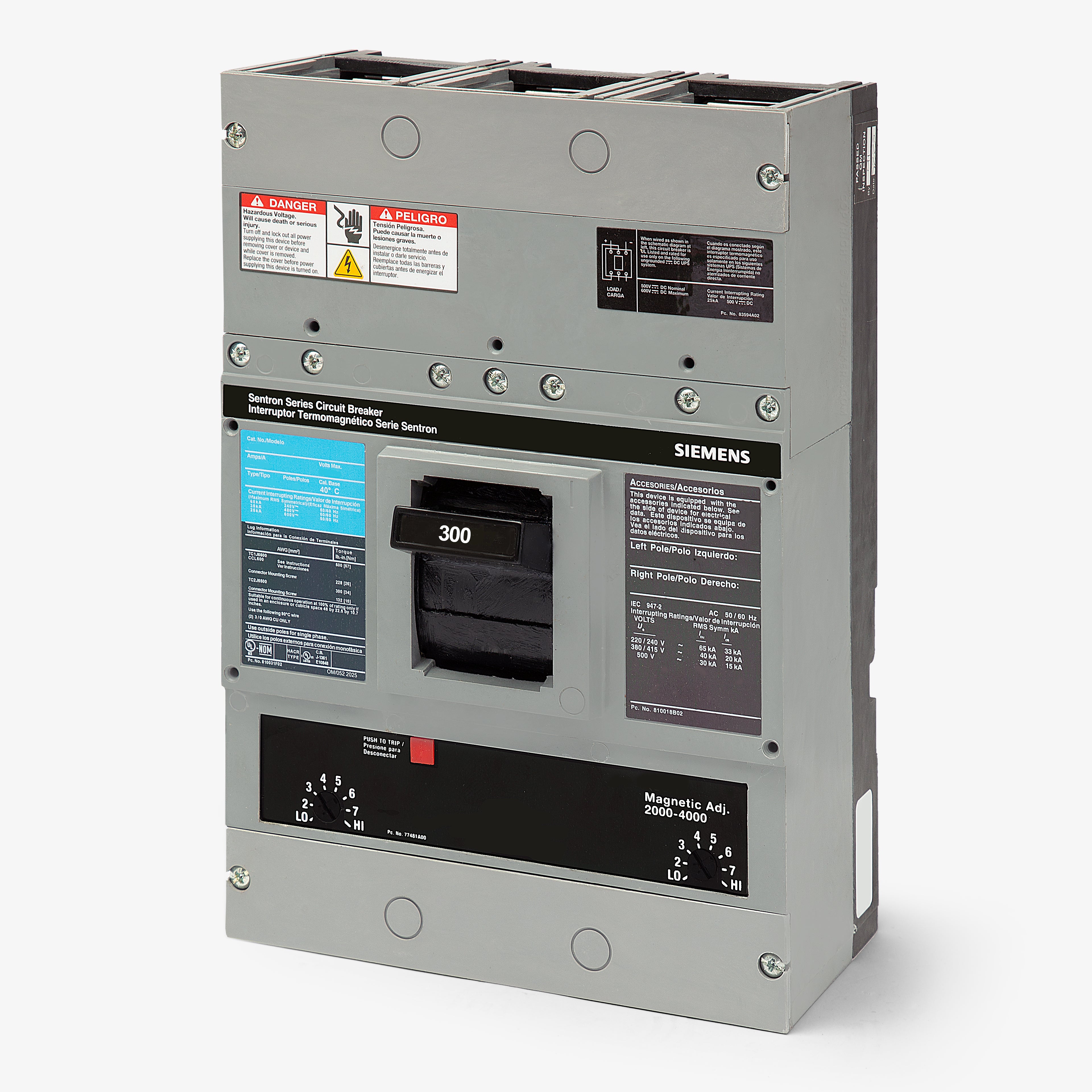

Engineered for demanding commercial and industrial applications, the Siemens JXD22B300 is a 2-pole, 300A molded case circuit breaker from the proven Sentron family. It features a rugged JD frame design and provides dependable long-time and instantaneous (LI) trip functions to safeguard critical electrical infrastructure. This bolt-on breaker installs into Siemens P4 and P5 panelboards, SB switchboards, and motor control centers. Rated at 65kAIC at 240VAC, it includes an adjustable magnetic trip.

Specifications

Brand Siemens
Series JXD2
Part Number JXD22B300
Amperage 300A
Voltage 240VAC, 250VDC
Poles 2
Phase 1
AIC Rating 65kA @ 240VAC, 30kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens Sentron Panelboards, P4 Panelboards, P5 Panelboards, SB Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic

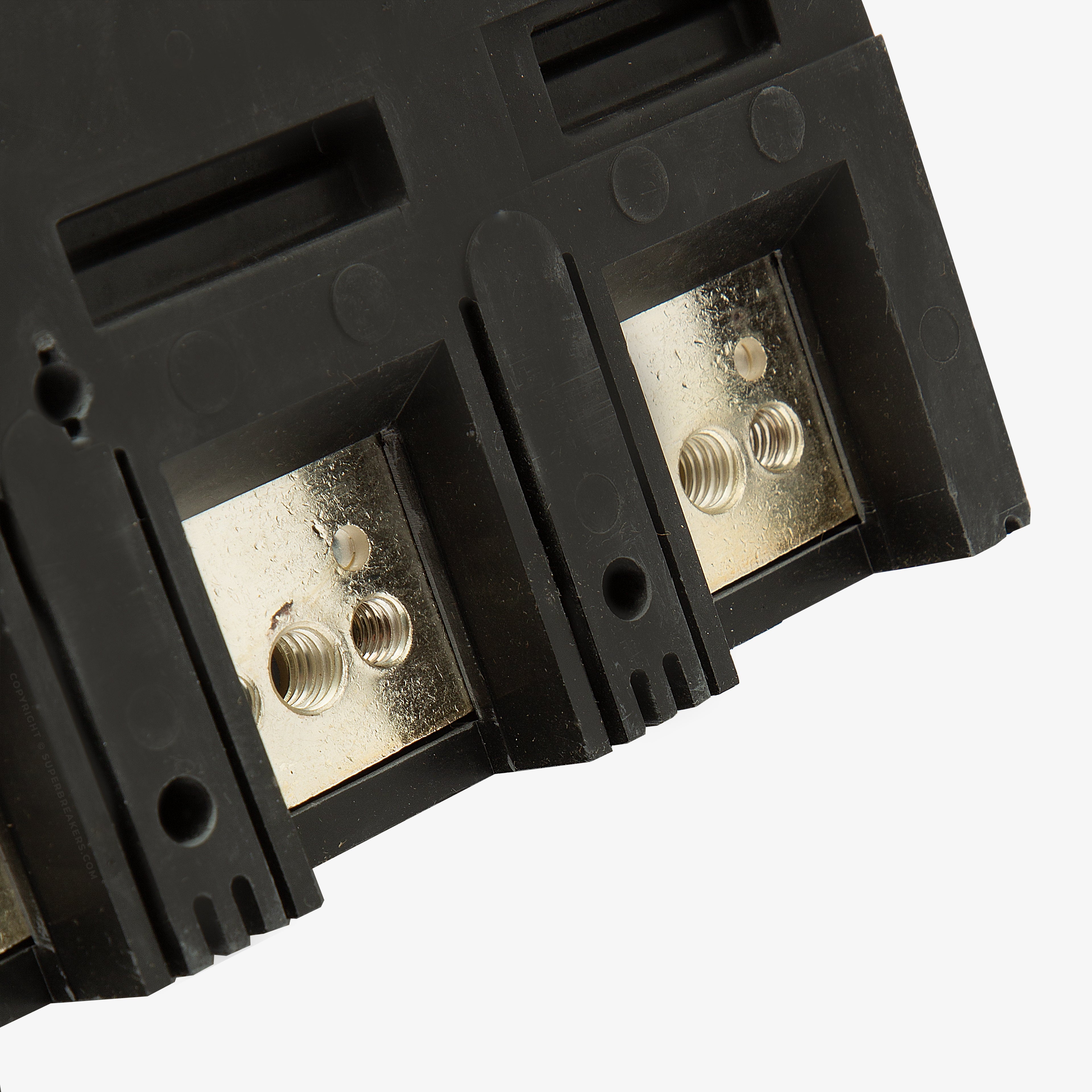

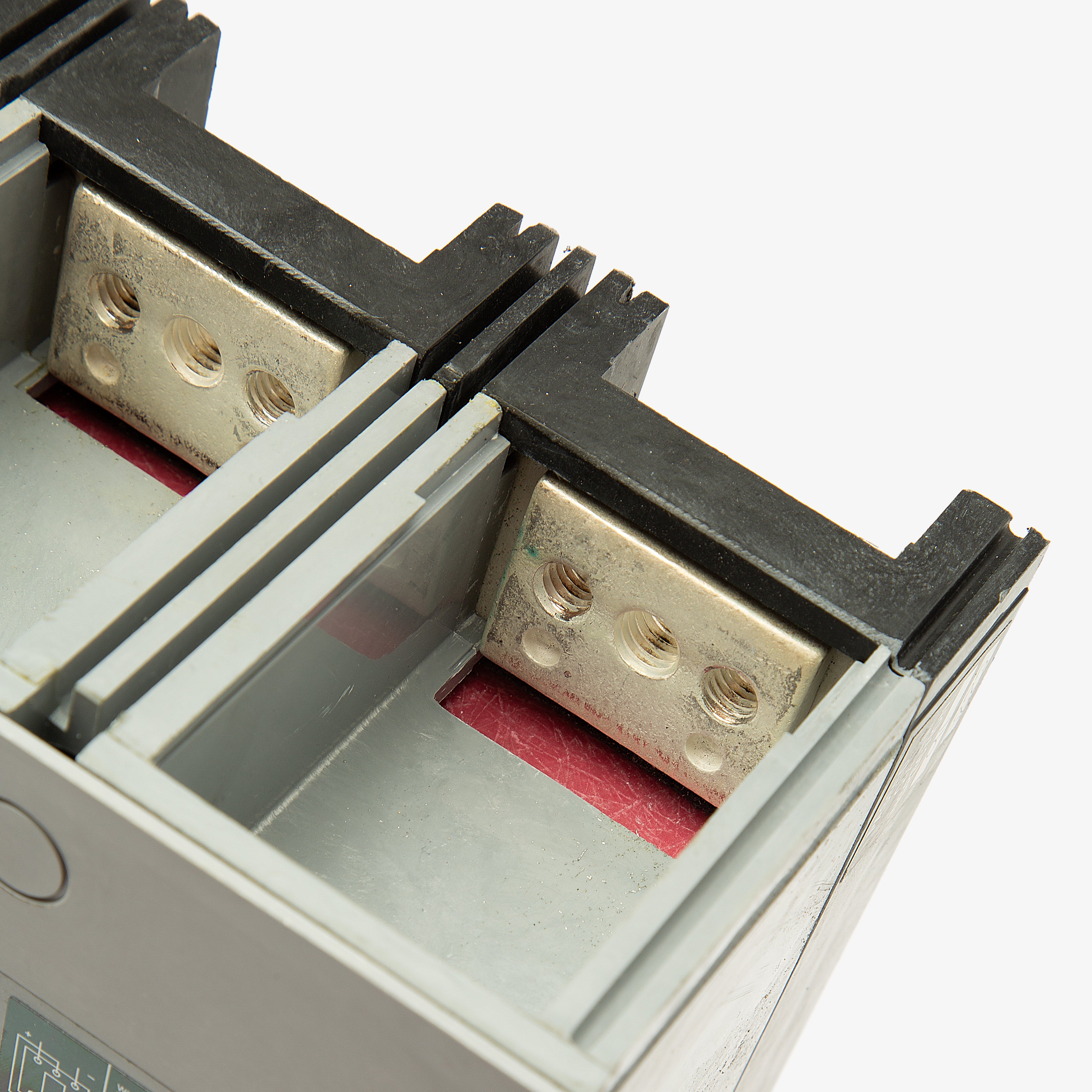

Wire Gauge 3/0 AWG - 500 kcmil (Cu/Al)
Max Wire 500 kcmil
Min Wire 3/0 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Lugs Not Included (Requires TA2J6500)
Standards CSA C22.2 No. 5, HACR Rated, UL 489
Approval CSA, UL
Temp Rating 40C

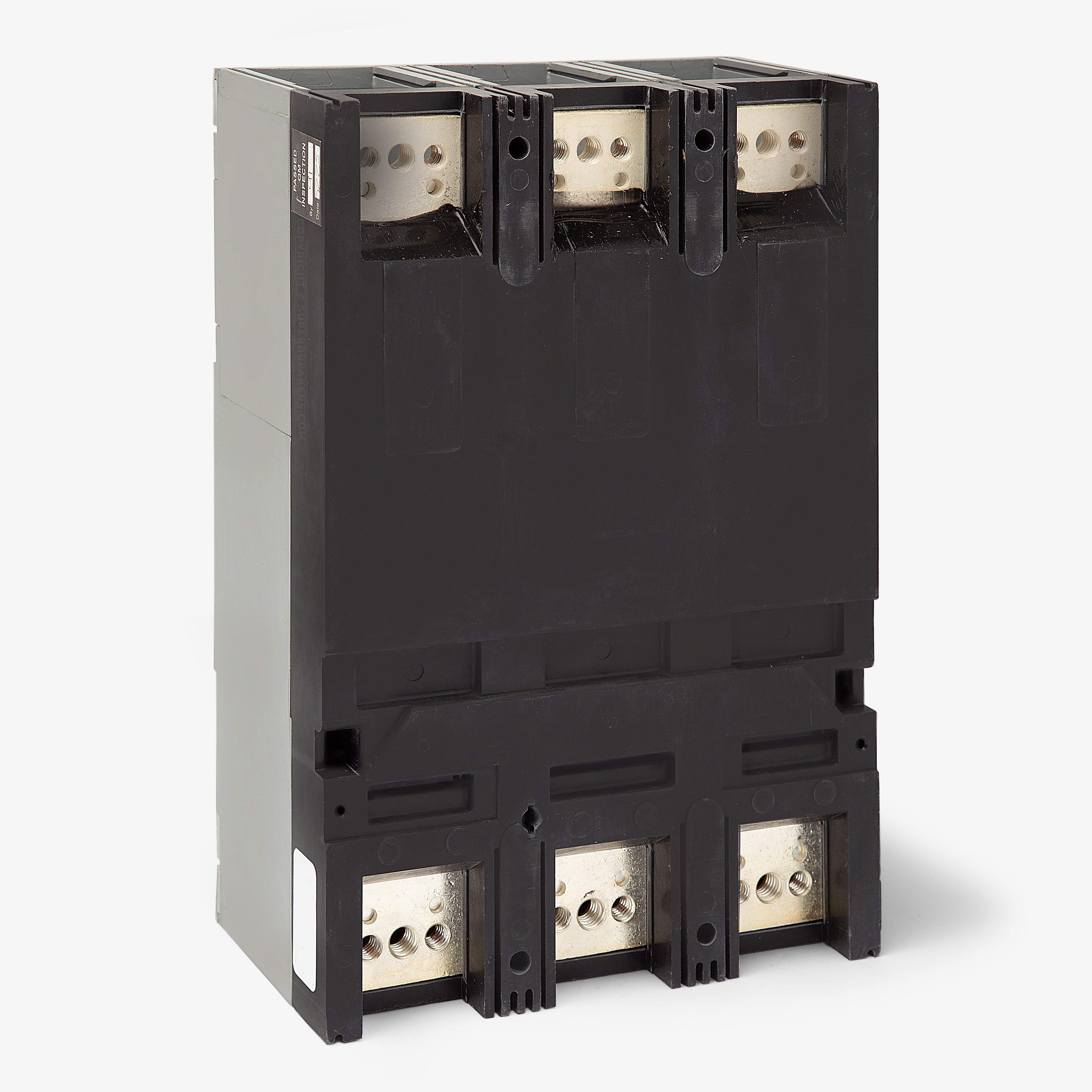

Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip, 2-Pole in 3-Pole Housing
