Siemens JXD23B200 - 200A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU JXD23B200
Siemens JXD23B200 3 Pole Circuit Breaker
Free Shipping Over $99

Siemens JXD23B200 - 200A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU JXD23B200
Select Item Condition
Earn 2098 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Siemens JXD23B200 3 Pole Circuit Breaker

Siemens JXD23B200 - 200A 3 Pole Molded Case Circuit Breaker

New

$2098.92 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

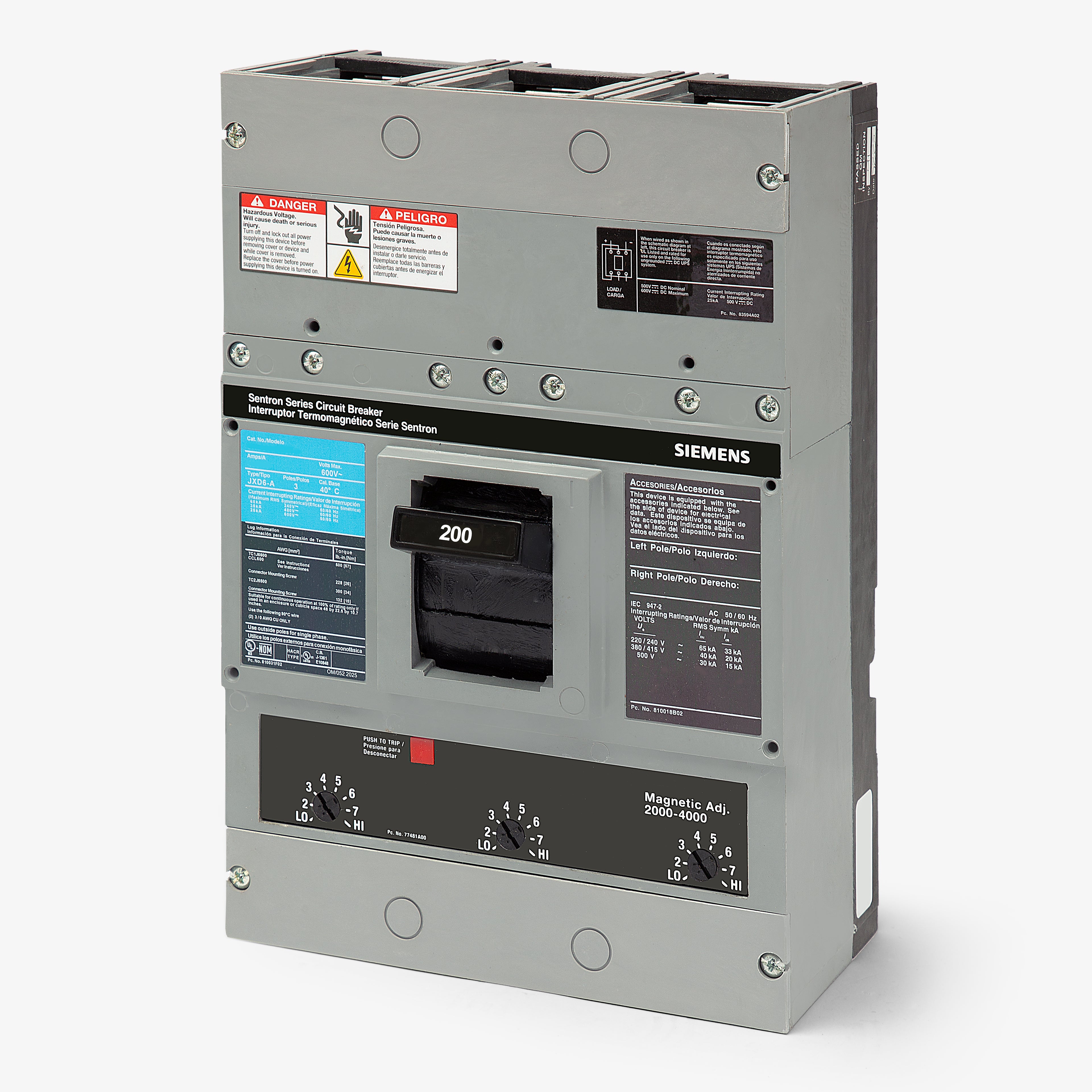

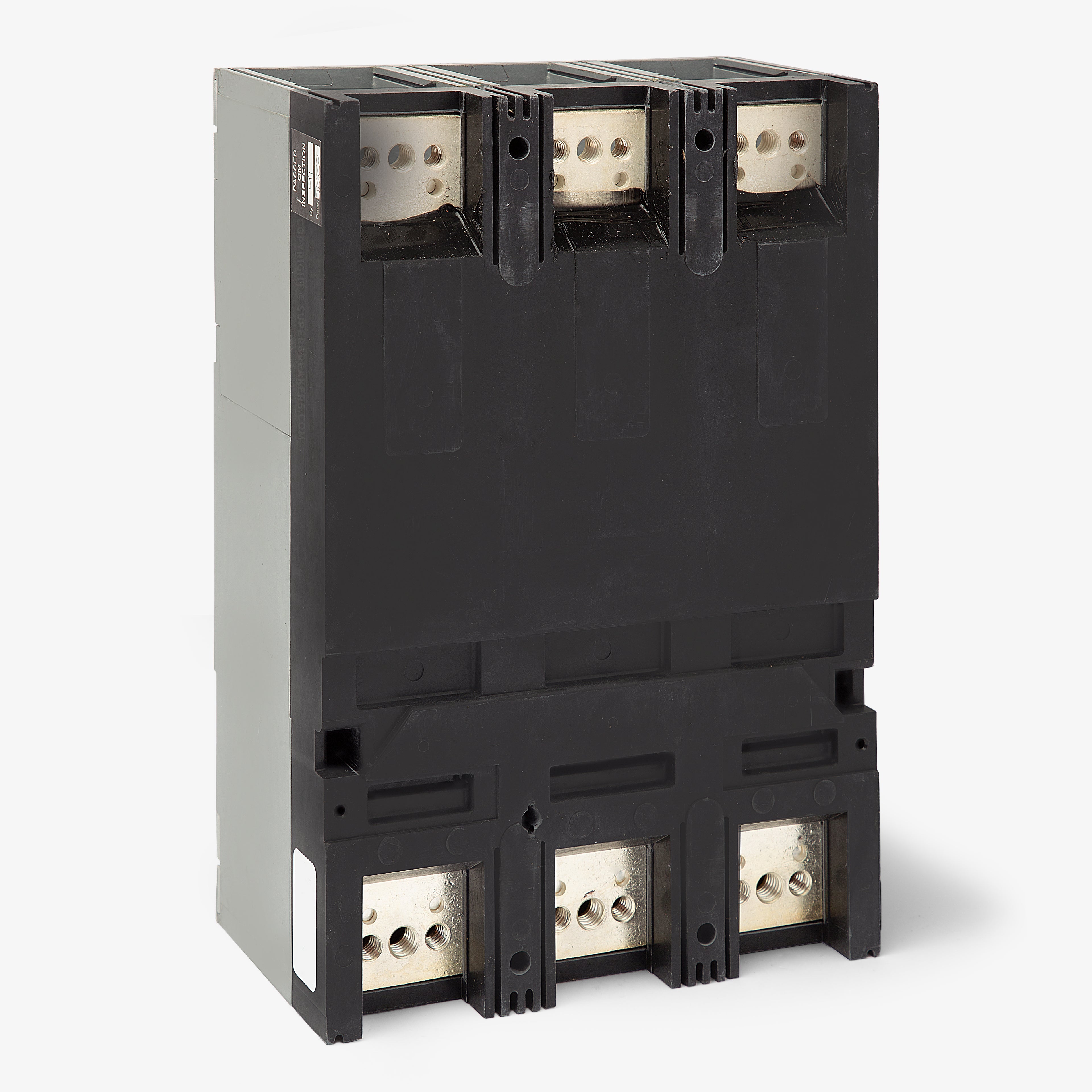

Engineered for commercial and industrial power distribution, the Siemens JXD23B200 provides 3-pole, 200A overcurrent protection within the Sentron family. It features a robust JD frame and delivers reliable thermal-magnetic protection with fixed thermal and adjustable magnetic trip settings. This bolt-on MCCB installs into Siemens P4 and P5 panelboards, SB switchboards, and motor control centers. Rated at 65kAIC at 240VAC, it requires separate TA2J6500 lugs for wire termination.

Specifications

Brand Siemens
Series JXD2
Part Number JXD23B200
Amperage 200A
Voltage 240VAC, 250VDC
Poles 3
Phase 3
AIC Rating 65kA @ 240VAC, 30kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens Sentron Panelboards, P4 Panelboards, P5 Panelboards, SB Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic
Wire Gauge 3/0 AWG - 500 kcmil (Cu/Al)
Max Wire 500 kcmil
Min Wire 3/0 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment

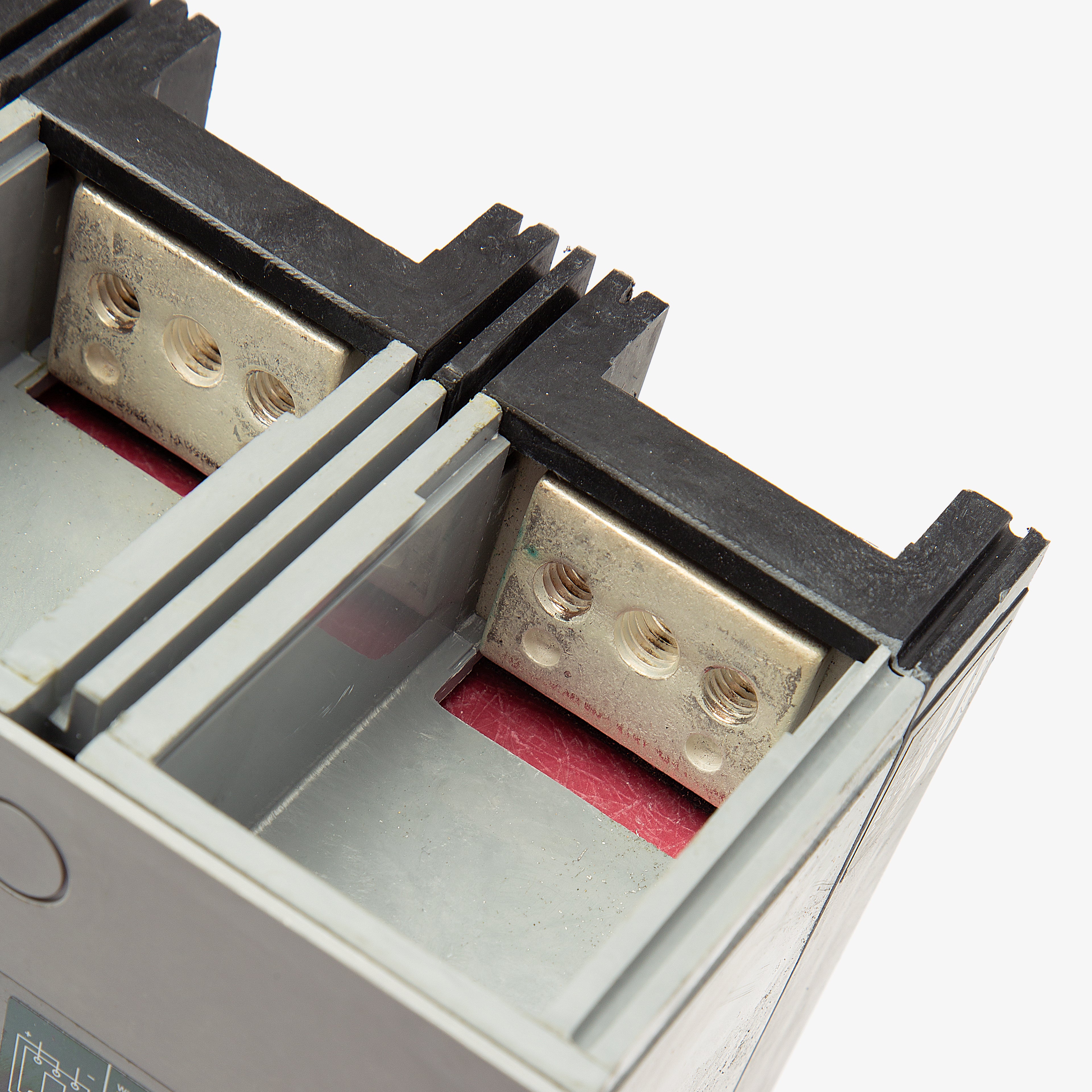

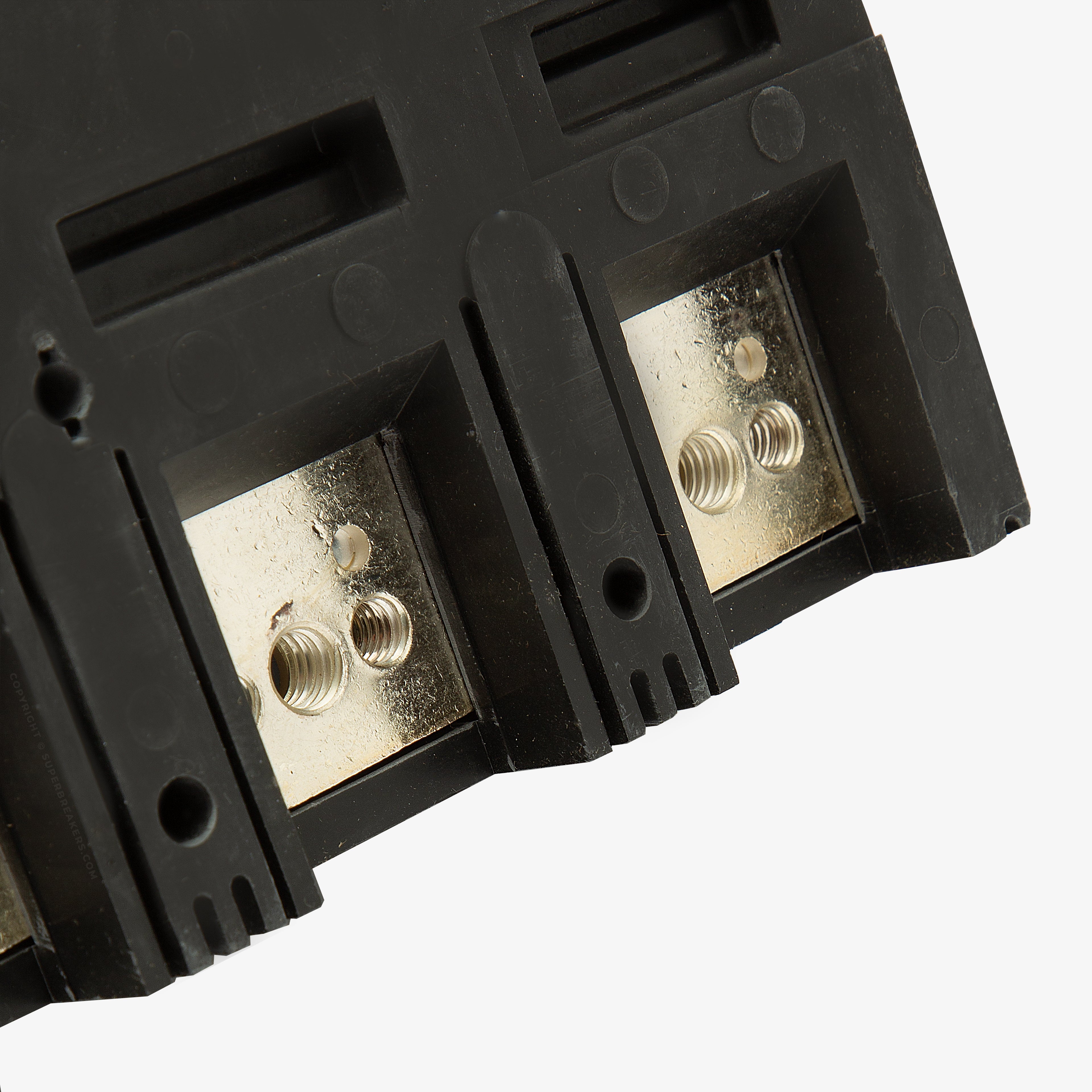

Accessories Lugs Not Included (Requires TA2J6500)
Standards CSA C22.2 No. 5, HACR Rated, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip
