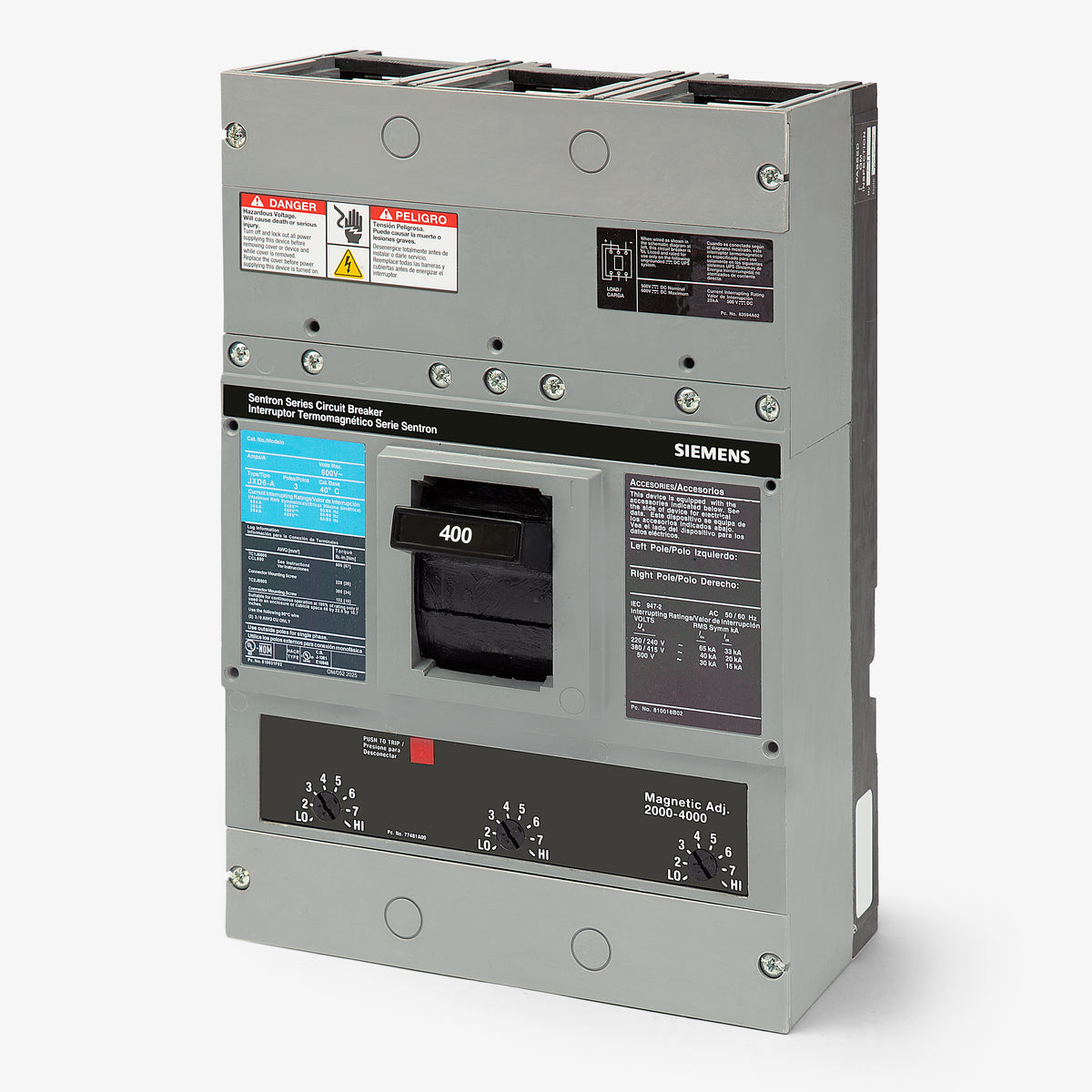

Siemens JXD63B400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
Siemens
JXD63B400
Molded Case Circuit Breaker
Brand
Siemens
SKU
JXD63B400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens JXD63B400 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens JXD63B400 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | JXD63B400 |
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P4, P5, S4, S5), Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kit |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens JXD63B400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | JXD63B400-R |
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P4, P5, S4, S5), Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kit |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Siemens JXD63B400 is a 3-pole, 400A MCCB from the Sentron family. It delivers reliable long-time and instantaneous (LI) protection. This unit-mount breaker installs into Siemens P4, P5, S4, and S5 panelboards or switchboards. It replaces older JD frame models and transitions to the 3VA series via retrofit kits. Rated 35kAIC at 480V, it features a fixed thermal and adjustable magnetic trip unit. It is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | JXD63B400 |
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P4, P5, S4, S5), Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kit |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersDoes the JXD63B400 come factory-equipped with line and load lugs?
No. Standard JXD6 frame circuit breakers do not include lugs from the factory [1.3.1]. If you require standard aluminum body lugs, you must order lug kits (such as TA2J6500) separately, or specify a catalog number with an "L" suffix (JXD63B400L) for factory-installed lugs.
What is the conductor capacity of the standard TA2J6500 lug kit used with this JD frame breaker?
When equipped with TA2J6500 lugs, each phase can accept up to two parallel conductors. The supported wire range is 3/0 AWG to 500 kcmil for copper wire, and 4/0 AWG to 500 kcmil for aluminum wire.
Are the trip units on the JXD63B400 interchangeable?
No. The "X" in the JXD frame designation signifies a factory-assembled, non-interchangeable thermal-magnetic trip unit. If your application requires an interchangeable trip unit for future rating adjustments, you will need a standard JD6 frame circuit breaker.
Can the JXD63B400 be used in a reverse-feed installation?
Yes. Because it features a non-interchangeable trip unit, the JXD63B400 complies with UL 489 and CSA C22.2 No. 5 standards for reverse feeding. Standard JD6 models with interchangeable trips are not rated for reverse-feed configurations.
How is this breaker mounted into a Siemens Sentron panelboard?
The JXD63B400 is a bolt-on unit. Mounting it into a compatible Siemens Sentron panelboard, such as a P4 or P5, requires a specific breaker mounting strap kit designed for JD frame circuit breakers.
Is the JXD63B400 rated for use with HVAC equipment?
Yes. This circuit breaker carries a HACR rating, making it suitable for the protection of heating, air conditioning, and refrigeration motor circuits.
Will this breaker replace older ITE JD frame breakers?
Yes. The JXD63B400 maintains the same physical dimensions and mounting footprint as legacy ITE and Siemens JD, JXD, and CJD frame molded case circuit breakers.
