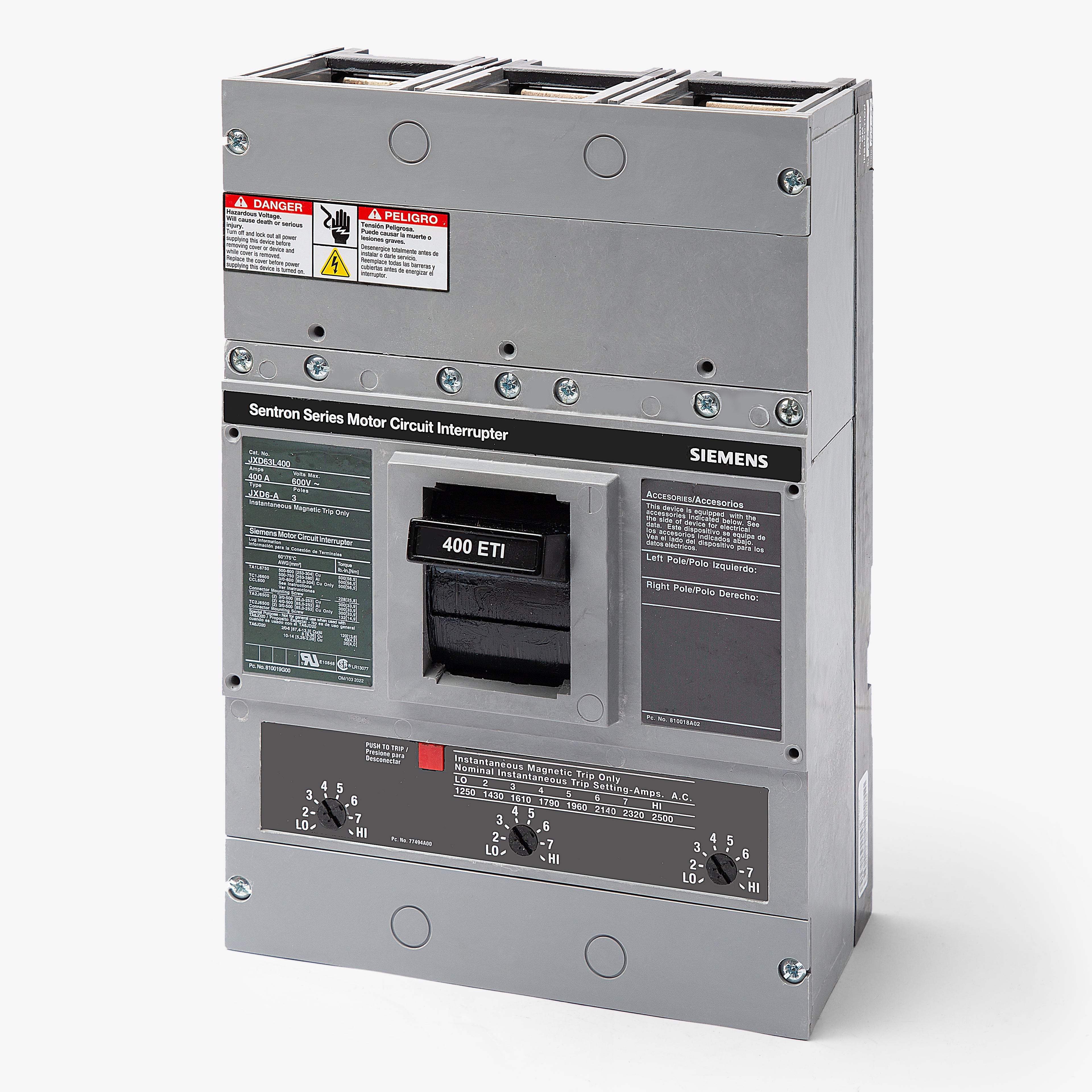

Siemens JXD63L400 Motor Circuit Protector
- 400A
- 3 Pole
- Unit Mount
Quantity
Siemens JXD63L400 - 400A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Siemens JXD63L400 - 400A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Siemens |
|---|---|
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|

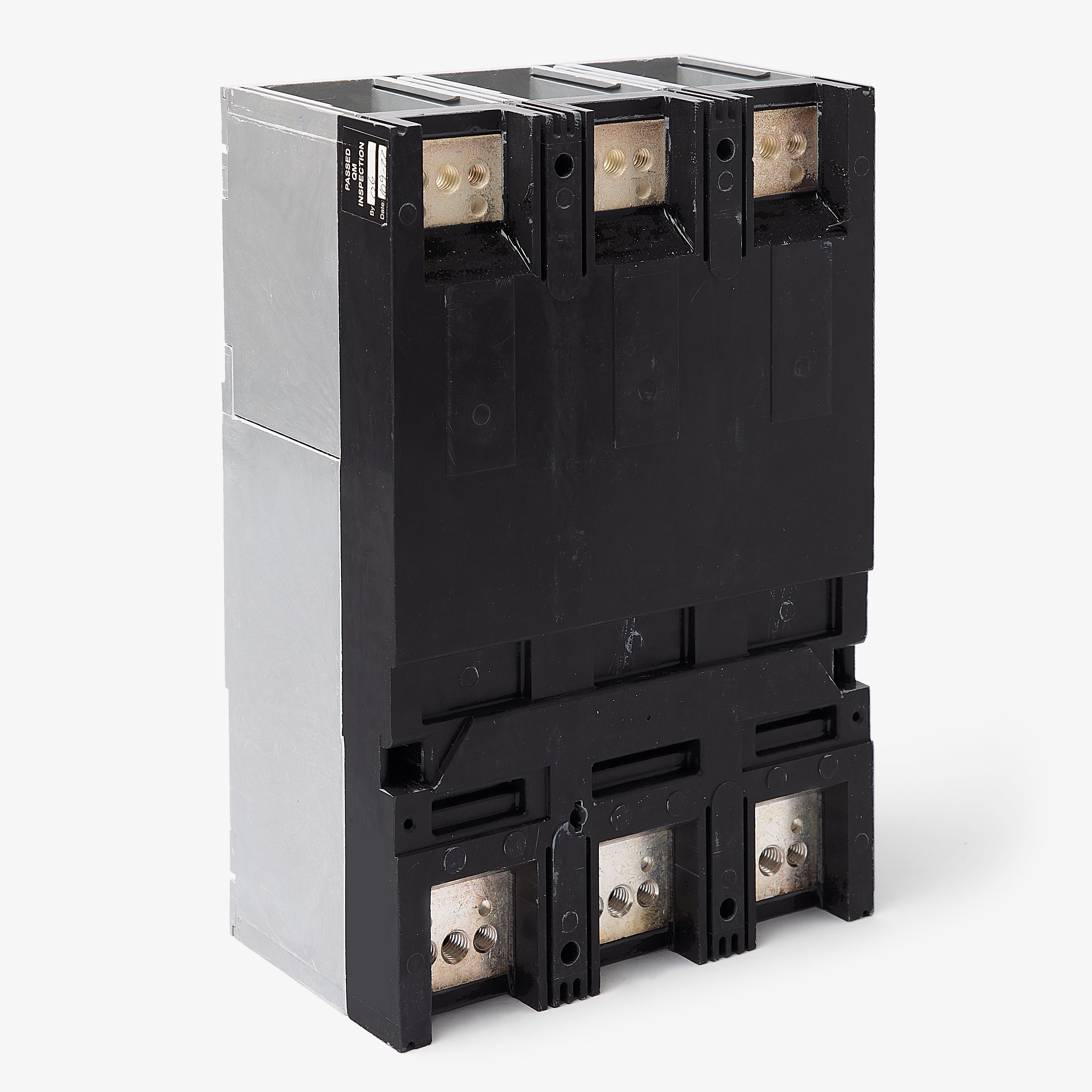

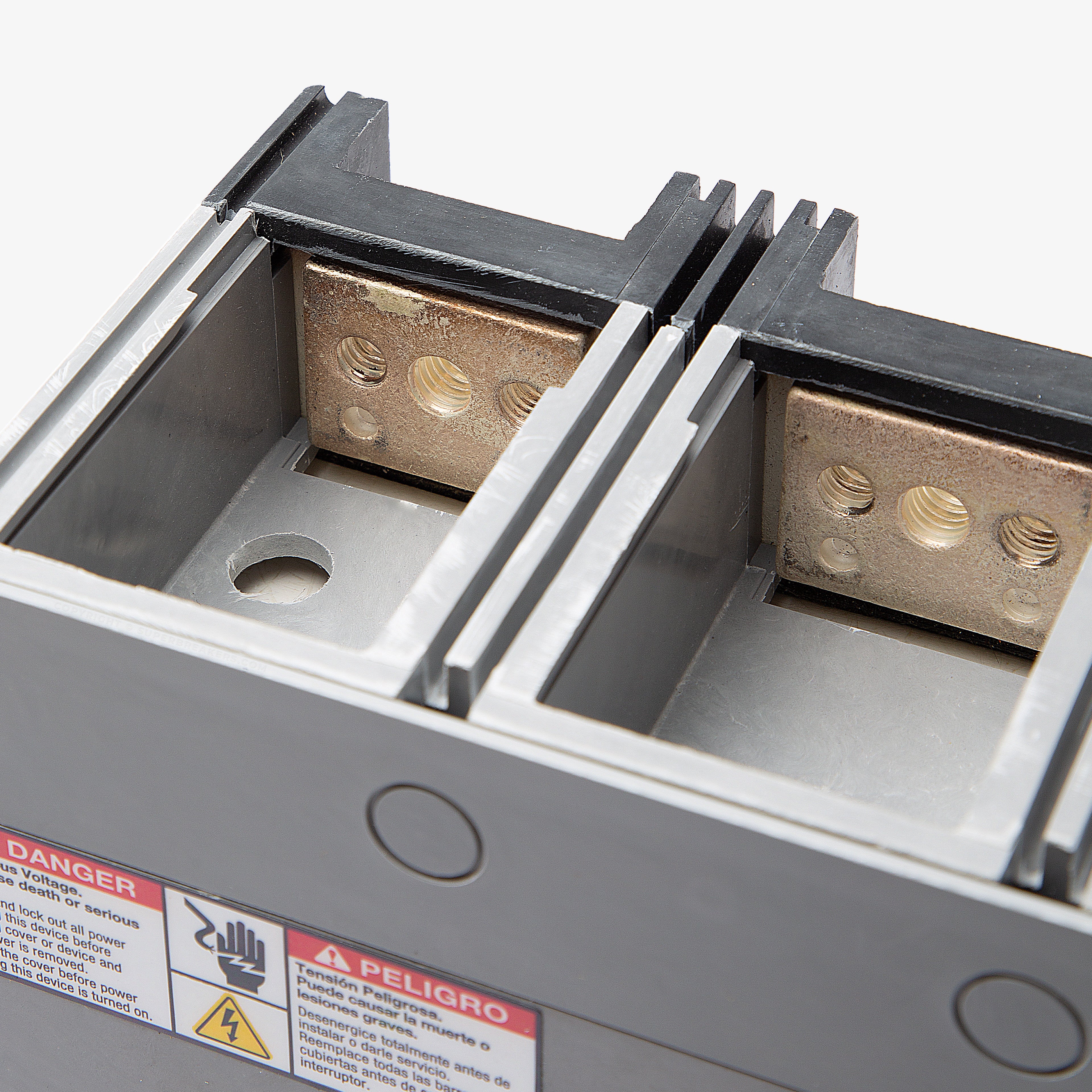

| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (Type P4, P5, S4, S5), Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included (Requires TA2J6500) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens JXD63L400 - 400A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (Type P4, P5, S4, S5), Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included (Requires TA2J6500) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Description

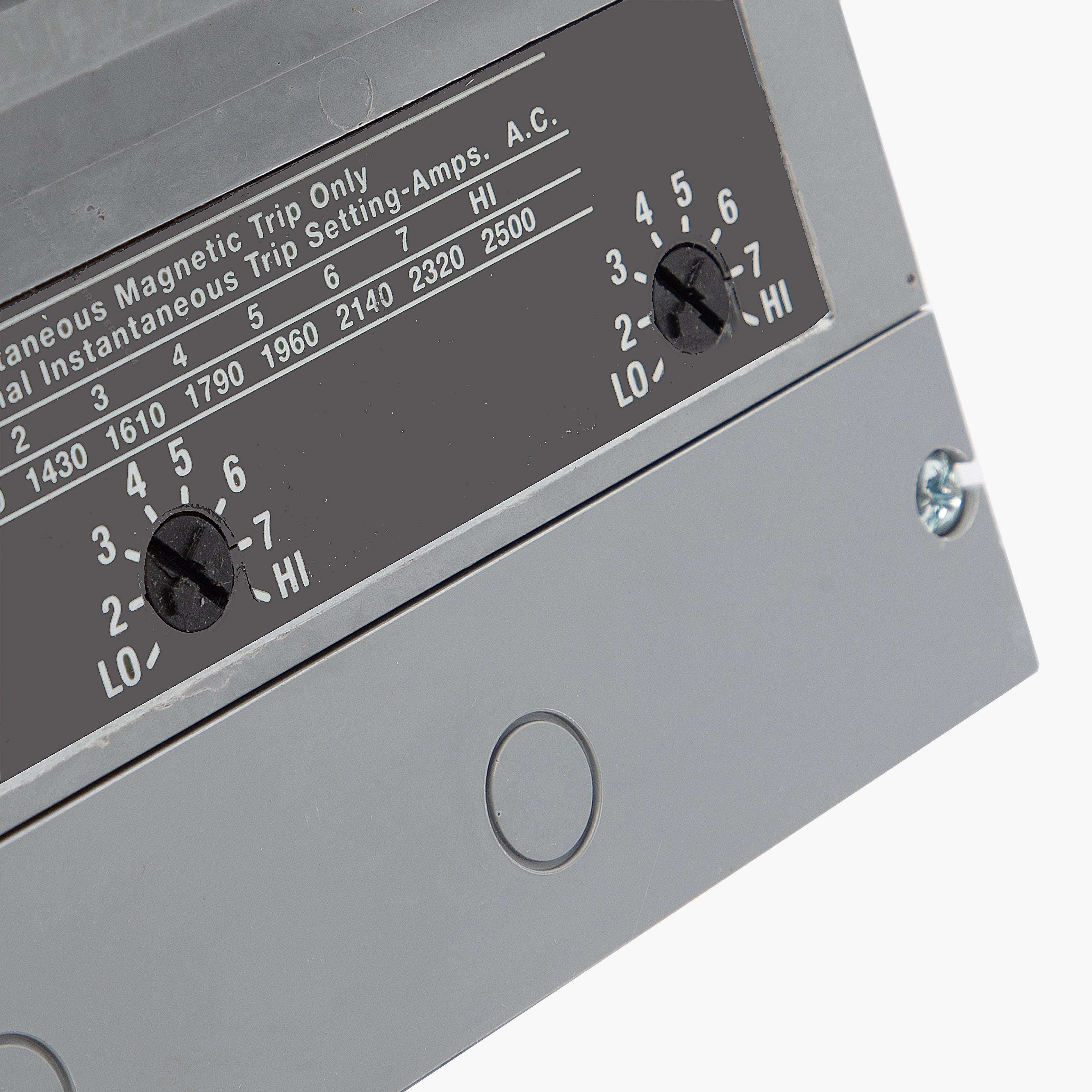

Part of the Sentron JD Frame family, the Siemens JXD63L400 is a 3-pole, 400A motor circuit protector designed for dedicated short-circuit protection in motor branch circuits. This unit-mount device installs into Sentron P4, P5, S4, and S5 panelboards and motor control centers. Lugs are not included (requires TA2J6500). Rated 35kAIC at 480VAC, it features an adjustable magnetic trip range of 1250A to 2500A. The HACR-rated unit supports reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Series | JXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | JXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (Type P4, P5, S4, S5), Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included (Requires TA2J6500) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
