Siemens LGB3B015B Circuit Breaker
- 15
- 3 Pole
- Bolt-On
Siemens
LGB3B015B
Circuit Breaker
Brand
Siemens
SKU
LGB3B015B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens LGB3B015B 3 Pole Circuit Breaker
New
Quantity
Quantity
Siemens LGB3B015B 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LGB3B015B |
| Series | VL |
| Amperage | 15 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kAIC at 240V |
| Frame Type | LGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | AWG 14 to AWG 6, Cu, AWG 12 to AWG 6, Al |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | WEEE, RoHS, REACh |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated |
Quantity
Siemens LGB3B015B 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | VL |
| Amperage | 15 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kAIC at 240V |
| Frame Type | LGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | AWG 14 to AWG 6, Cu, AWG 12 to AWG 6, Al |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | WEEE, RoHS, REACh |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description

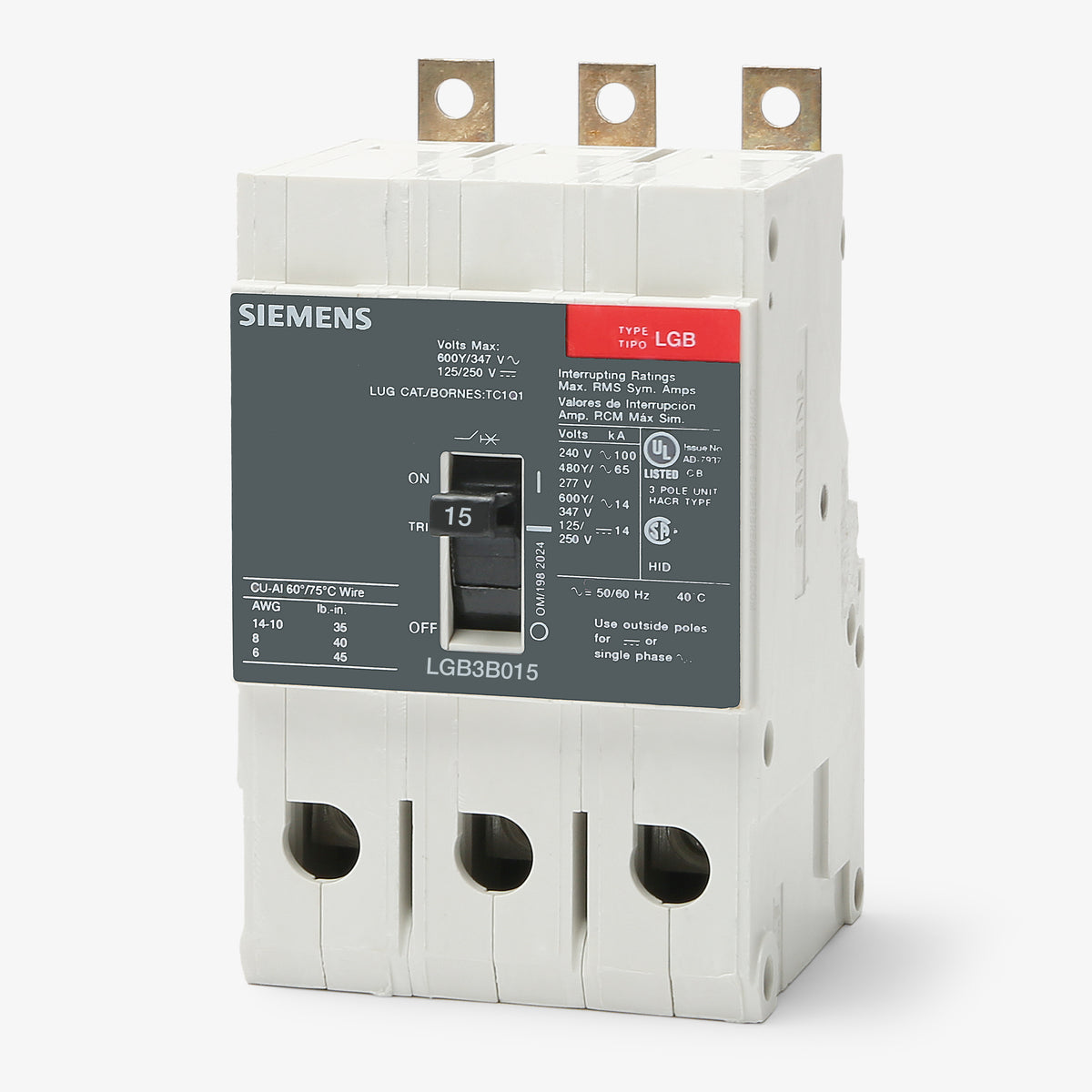

Siemens LGB3B015B 3 Pole Circuit Breaker
The Siemens LGB3B015B is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 600V. It has an interrupting rating of 100kAIC at 240V. The LGB3B015B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | LGB3B015B |
| Series | VL |
| Amperage | 15 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600V |
| Phase | 3 |
| AIC Rating | 100kAIC at 240V |
| Frame Type | LGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | AWG 14 to AWG 6, Cu, AWG 12 to AWG 6, Al |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | WEEE, RoHS, REACh |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated |
Product FAQs
7 answersWhich Siemens panelboards accept the LGB3B015B circuit breaker?
This bolt-on breaker is specifically designed for installation in Siemens P1, P2, and P3 panelboards.
How is the LGB3B015B installed into the electrical system?

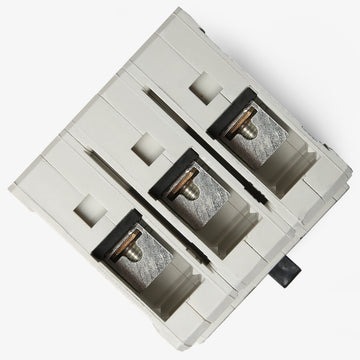

It utilizes a bolt-on connection for the line side to mount directly to the panelboard bus. The load side features lugs that accept 14 to 6 AWG copper or 12 to 6 AWG aluminum conductors.
What are the specific interrupting capacities for this 15A breaker across different system voltages?
The breaker is rated for 100kAIC at 240V, 65kAIC at 480Y/277V, and 14kAIC at 600Y/347V, making it suitable for high capacity commercial and industrial distribution systems.
How does the LGB frame differ from standard GG frame breakers?
While it shares the same internal design features as the GG frame, the LGB frame is specifically configured with a bolt-on line end for panelboard mounting applications rather than standard cable connections.
What protection functions does the thermal magnetic trip unit provide?
The fixed thermal and fixed magnetic trip unit provides standard LI (Long-Time and Instantaneous) protection, safeguarding against both sustained overloads and short circuits.
What is the maximum frame size for the LGB3B015B?
This breaker is built on a 125A maximum frame within the Siemens Sentron GB/GG family, but this specific model is factory set for a 15A continuous current rating.
Is the LGB3B015B suitable for HVAC or lighting applications?
Yes, this breaker is both HACR rated for heating, air conditioning, and refrigeration equipment, and HID rated for high intensity discharge lighting circuits.
