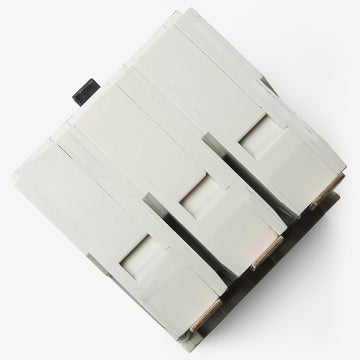

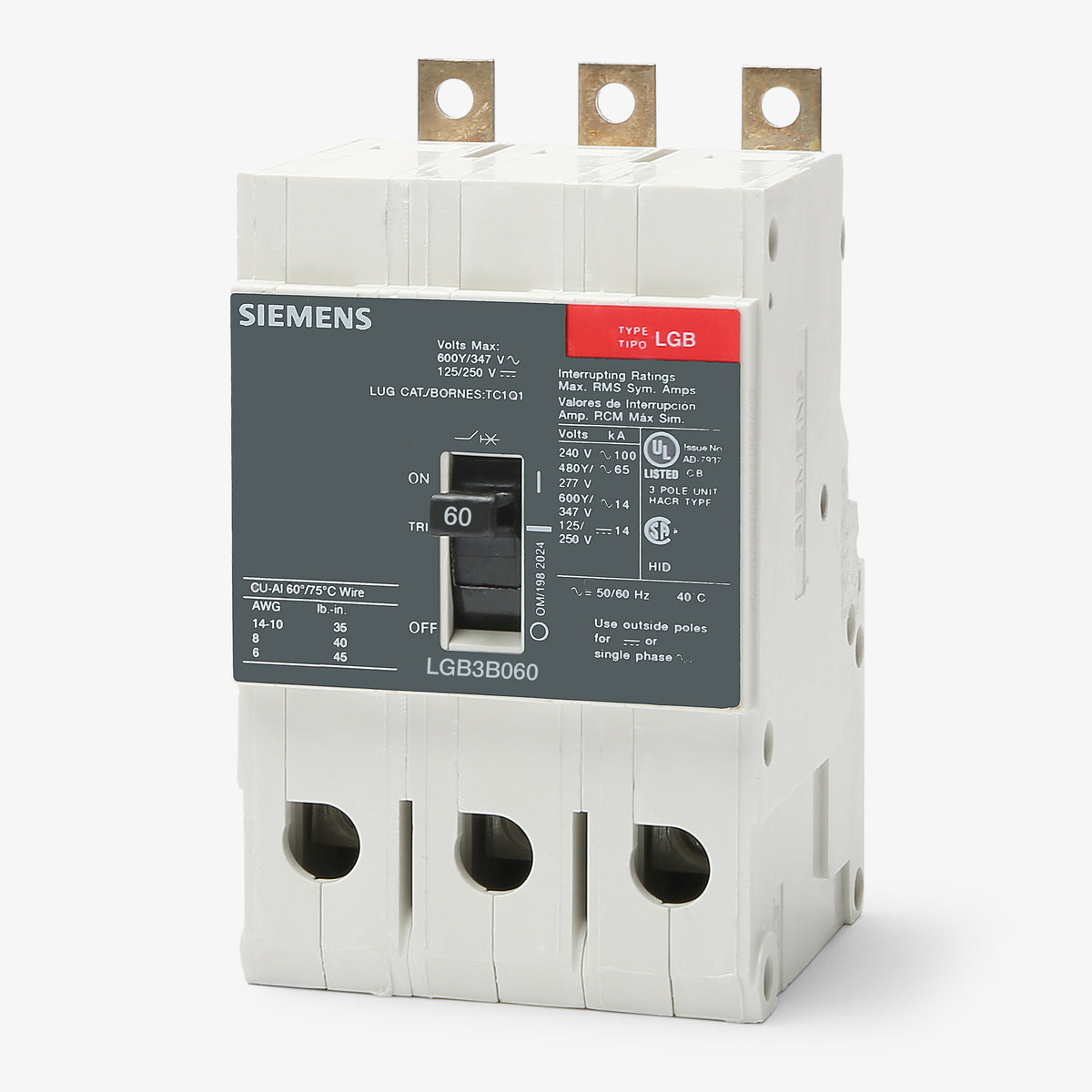

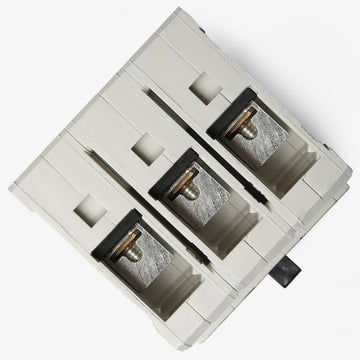

Siemens LGB3B060B Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens
LGB3B060B
Molded Case Circuit Breaker
Brand
Siemens
SKU
LGB3B060B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens LGB3B060B - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens LGB3B060B - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | LGB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip, High Interrupting Capacity |
Sold out
Quantity
Siemens LGB3B060B - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | LGB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty electrical systems, the Siemens LGB3B060B is a 3-pole, 60-amp molded case circuit breaker. It belongs to the Sentron GB/GG frame family and provides standard long-time and instantaneous (LI) protection. This bolt-on breaker installs into Siemens P1, P2, and P3 panelboards. It can be replaced by the newer 3VA4160-6ED34-0AA0 model, provided the correct mounting kit is utilized. Capable of handling 65kAIC at 480Y/277VAC, it is suitable for reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Series | LGB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
5 answersWhich Siemens panelboards accept the LGB3B060B circuit breaker?
This molded case breaker is designed for direct installation into Siemens P1, P2, and P3 panelboards. It utilizes a bolt-on mounting configuration for secure phase integration in commercial and industrial power distribution applications.
What conductor sizes are supported by the LGB3B060B terminals?
The factory-installed lugs are dual-rated for both copper and aluminum conductors. They accept 8 to 1/0 AWG copper (Cu) wire and 8 to 2/0 AWG aluminum (Al) wire. Always refer to the breaker faceplate for proper termination torque specifications.
Is the trip unit on this 60A Sentron breaker adjustable?
No, the LGB3B060B features a fixed thermal and fixed magnetic trip unit. Both the long-time (L) and instantaneous (I) trip protection levels are factory calibrated and cannot be adjusted in the field.
Can the Siemens LGB3B060B be applied in DC power systems?
Yes, this 3-pole Sentron series breaker is rated for direct current systems. It provides a 14kA interrupting capacity (AIC) when applied at 125VDC or 250VDC.
What is the short circuit interrupting rating for this breaker at 480V?
In 480VAC or 480Y/277VAC systems, the LGB3B060B delivers a 65kAIC short circuit interrupting rating. When applied to 240VAC systems, the interrupting capacity increases to 100kAIC.
