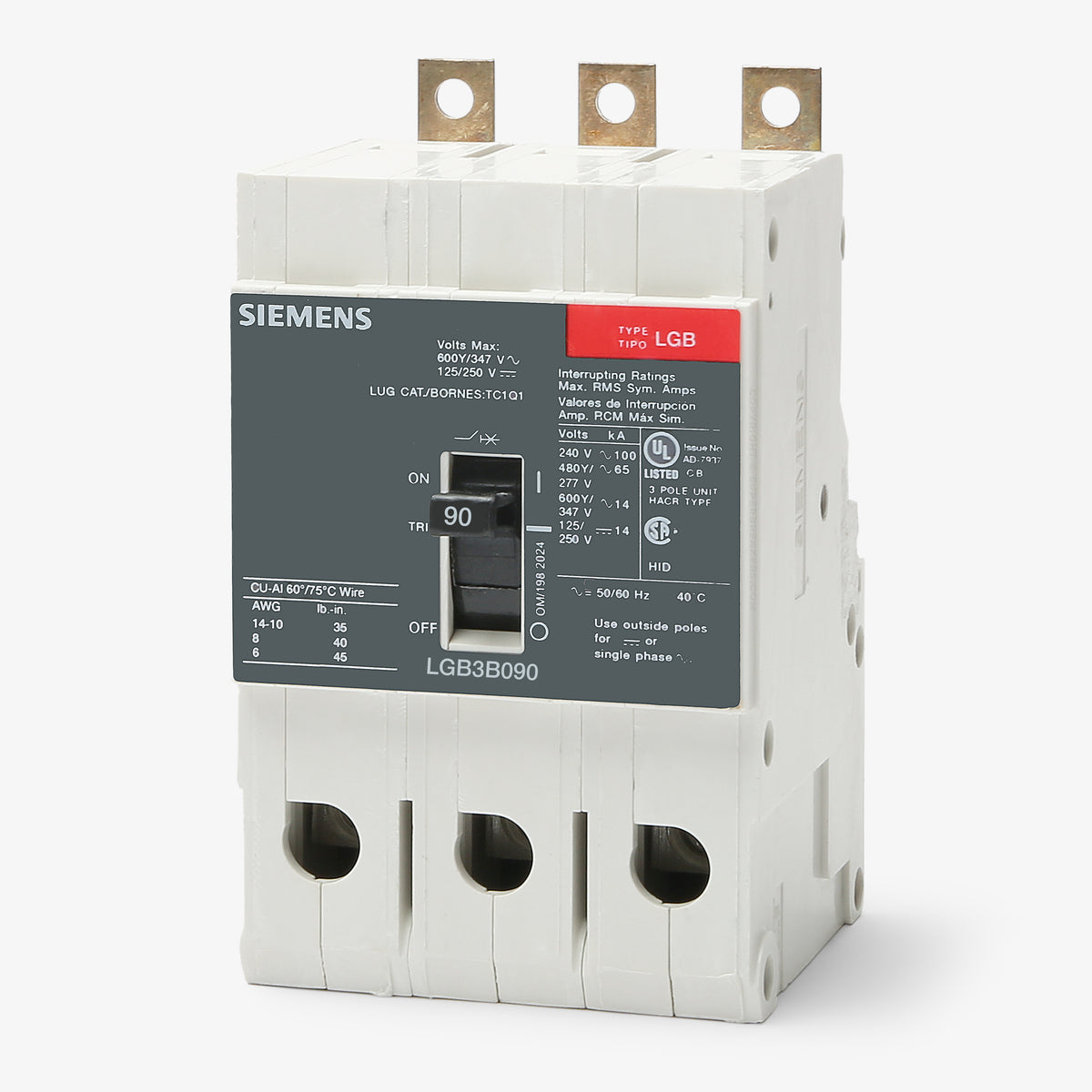

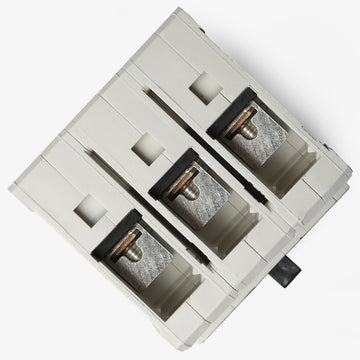

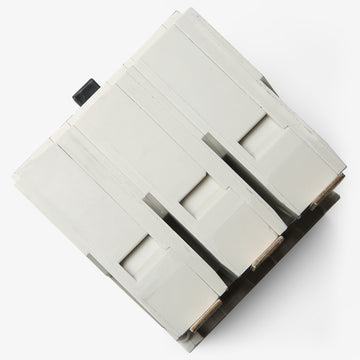

Siemens LGB3B090B Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Siemens
LGB3B090B
Molded Case Circuit Breaker
Brand
Siemens
SKU
LGB3B090B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens LGB3B090B - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens LGB3B090B - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LGB3B090B |
| Series | LGB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Frame Type | LGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Low Tab, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Sold out
Quantity
Siemens LGB3B090B - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LGB3B090B |
| Series | LGB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Frame Type | LGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Low Tab, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable commercial power distribution, the Siemens LGB3B090B is a 90A, 3-pole molded case circuit breaker. It features a fixed thermal-magnetic trip unit for long-time and instantaneous (LI) protection. The breaker mounts into Siemens P1, P2, and P3 panelboards using a sturdy bolt-on connection. For maintenance planning, this unit is replaced by the newer 3VA5190-6ED31-0AA0 model. It boasts a 65kAIC interrupting rating at 480Y/277VAC and is HACR rated for HVAC applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | LGB3B090B |
| Series | LGB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 14kA @ 600Y/347VAC, 14kA @ 125/250VDC |
| Frame Type | LGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu), 8-2/0 AWG (Al) |
| Max Wire | 1/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Low Tab, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the LGB3B090B circuit breaker?
This breaker is designed for use in Siemens P1, P2, and P3 panelboards. It features a bolt-on connection specifically configured for panelboard bus mounting.
What wire sizes are accepted by the lugs on the LGB3B090B?
The factory-installed lugs accept 8 to 1/0 AWG copper wire or 8 to 2/0 AWG aluminum wire. These lugs are designed for standard load-side connections in commercial panelboards.
What does the LI trip function indicate on this Siemens breaker?
The LI designation means the breaker features a thermal-magnetic trip unit providing Long-Time (L) and Instantaneous (I) overcurrent protection. Both the thermal and magnetic trip points are fixed on this specific model.
Can the LGB3B090B be mounted on a DIN rail?
No. While some Siemens G-frame breakers like the GG series support DIN rail mounting, the GB and LGB frames are configured exclusively for bolt-on panelboard mounting.
Can this 3-pole breaker be used in DC power systems?
Yes, the LGB3B090B is rated for use in DC applications up to 125/250VDC, providing an interrupting capacity of 14kA for those specific systems.
Is there a newer replacement model for the LGB3B090B?
Yes, for maintenance planning and upgrades, Siemens replaces this legacy LGB frame breaker with the newer 3VA series, specifically catalog number 3VA5190-6ED31-0AA0.
