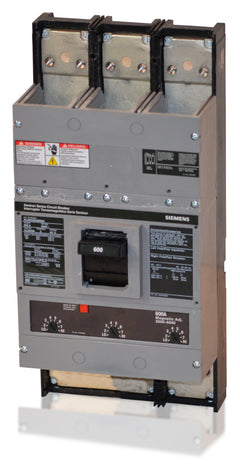

Siemens LMD63B600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
Siemens
LMD63B600
Molded Case Circuit Breaker
Brand
Siemens
SKU
LMD63B600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

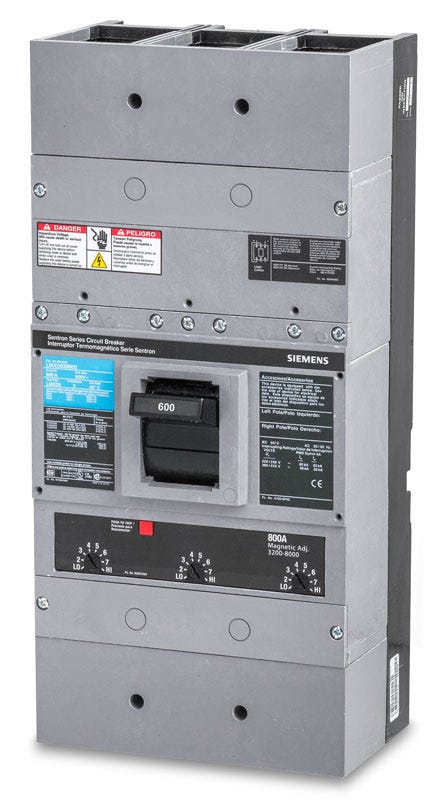

Siemens LMD63B600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens LMD63B600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LMD63B600 |
| Series | LMD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (P4, P5), Switchboards (SB1, SB2, SB3) |
| Wire Gauge | (3) 1/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Quantity
Siemens LMD63B600 - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LMD63B600-R |
| Series | LMD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (P4, P5), Switchboards (SB1, SB2, SB3) |
| Wire Gauge | (3) 1/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Similar Items
500A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
Description
A heavy-duty solution for commercial power systems, this 3-pole, 600A Siemens Sentron molded case circuit breaker ensures reliable overcurrent defense. Designed for unit-mount configurations, it integrates into Siemens P4 and P5 panelboards, plus SB series switchboards. If replacing this legacy frame, the modern 3VA5560-7EC36-0AA0 can be substituted using a retrofit kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | LMD63B600 |
| Series | LMD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards (P4, P5), Switchboards (SB1, SB2, SB3) |
| Wire Gauge | (3) 1/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
7 answersWhat equipment is the LMD63B600 designed to mount in?
This unit-mount breaker is engineered for Siemens Sentron P4 and P5 panelboards, as well as SB1, SB2, and SB3 switchboards. It bolts directly to the chassis and is not compatible with standard plug-in load centers.
Which lug kit is included with the LMD63B600?
The breaker comes standard with the TA3K500 lug kit installed on both the line and load sides. These lugs accept up to three 1/0 AWG to 500 kcmil copper or aluminum conductors per phase.
Is there a higher interrupting capacity alternative to the LMD63B600?
Yes. If your system requires a higher fault current rating, the HLMD63B600 is the high-interrupting equivalent. It provides 65kA at 480VAC, compared to the 50kA rating of the standard LMD63B600.
Can the trip unit be replaced without removing the breaker frame?
Yes. The LMD63B600 features an interchangeable trip unit design. This allows electricians to swap or upgrade the thermal-magnetic trip mechanism in the field without unbolting the entire frame from the panelboard.
How do you adjust the trip settings on this breaker?
The thermal-magnetic trip unit has fixed thermal protection for long-time overloads. However, it includes an adjustable magnetic dial on the face of the breaker to set the instantaneous short-circuit pickup level based on your load requirements.
Does the LMD63B600 include equipment ground fault protection?
No. This breaker features an LI (Long-Time, Instantaneous) trip function. It does not have integral ground fault capabilities.
What does the B in the LMD63B600 catalog number indicate?
The B signifies that this is a complete, assembled circuit breaker. It includes the LMD frame, the interchangeable trip unit, and the standard line and load lugs.
