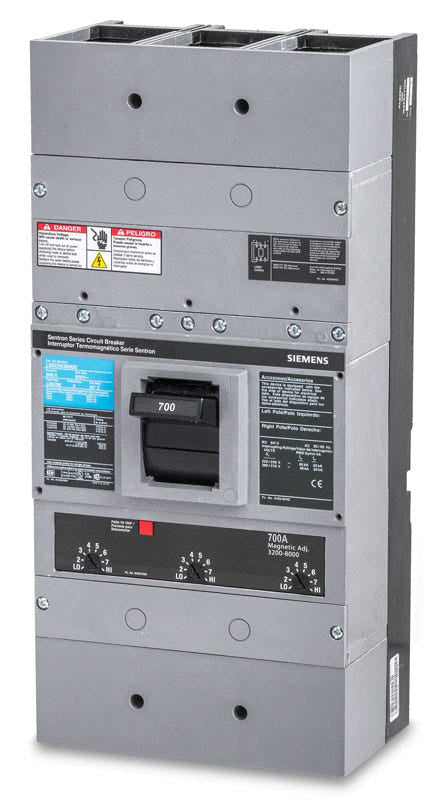

Siemens LMXD63B700 Molded Case Circuit Breaker
- 700A
- 3 Pole
- Unit Mount
Siemens
LMXD63B700
Molded Case Circuit Breaker
Brand
Siemens
SKU
LMXD63B700
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens LMXD63B700 - 700A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens LMXD63B700 - 700A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LMXD63B700 |
| Series | LMXD6 |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LMXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Mechanical Interlock |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Trip-Free Mechanism, HACR Rated |
Quantity
Siemens LMXD63B700 - 700A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | LMXD6 |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LMXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Mechanical Interlock |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Trip-Free Mechanism, HACR Rated |
Similar Items
600A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
700A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the Siemens LMXD63B700 is a 3-pole, 700A molded case circuit breaker in the Sentron LMD frame series. This unit mount MCCB installs into Siemens Sentron panelboards and switchboards. It replaces existing LMD frame setups, while new designs use the 3VA55 series. Rated 65kAIC at 240V, it features a non-interchangeable thermal-magnetic trip unit. It includes fixed thermal and adjustable magnetic settings (LI) for precise response.Specifications
| Brand | Siemens |
|---|---|
| Part Number | LMXD63B700 |
| Series | LMXD6 |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LMXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Mechanical Interlock |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Trip-Free Mechanism, HACR Rated |
Product FAQs
5 answersWhat is the difference between the LMXD63B700 and the LMD63B700?
The LMXD63B700 features a factory-sealed, non-interchangeable thermal-magnetic trip unit. The standard LMD63B700 uses an interchangeable trip unit design, combining an LMD63F800 frame with an LMD63T700 trip unit. Both share the same physical dimensions and 700A rating.
Does the LMXD63B700 come with line and load lugs installed?
No, this breaker is supplied without lugs installed. You must purchase compatible LMD-frame lug kits separately, such as the TA2K500 or TA3K500, depending on your specific wire size and conductor material.
What is the adjustable magnetic trip range for this breaker?
The instantaneous magnetic trip on the LMXD63B700 can be adjusted between 3200A and 8000A. This allows for precise coordination with downstream devices and helps accommodate motor inrush currents.
What are the physical dimensions of the LMXD63B700?
This LMD-frame molded case circuit breaker measures 16.0 inches high, 7.5 inches wide, and 4.5 inches deep.
Can I install internal accessories like a shunt trip in this breaker?
Yes, the Siemens Sentron LMD frame supports field-installable internal accessories. You can add shunt trips, undervoltage releases, and auxiliary switches into the designated accessory pockets under the front cover.
