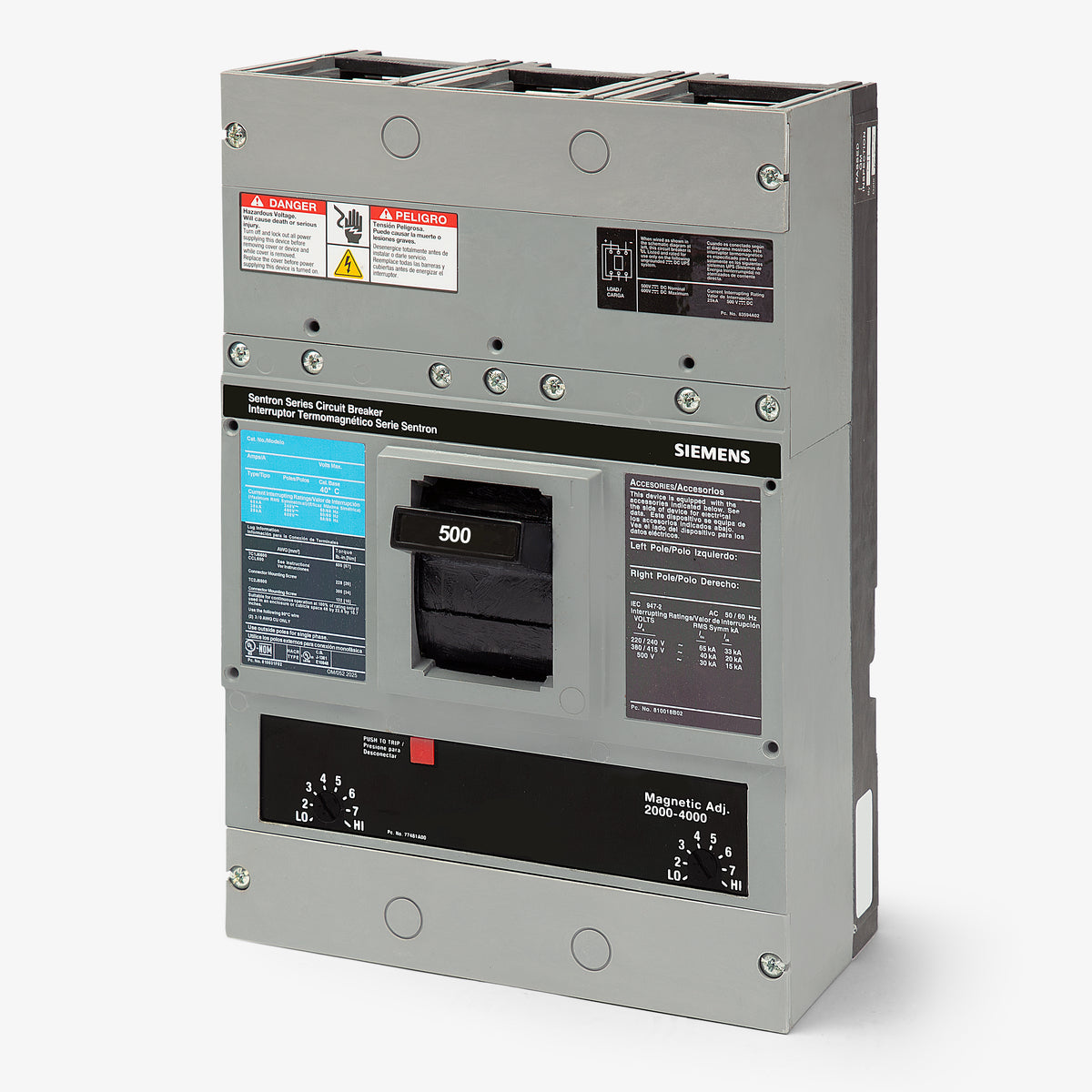

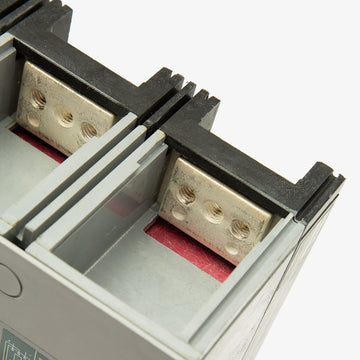

Siemens LXD62B500 Molded Case Circuit Breaker
- 500A
- 2 Pole
- Unit Mount
Siemens
LXD62B500
Molded Case Circuit Breaker
Brand
Siemens
SKU
LXD62B500
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens LXD62B500 - 500A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
600A 2 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
Description
Part of the Siemens Sentron series, this 500A molded case circuit breaker delivers reliable power distribution. The LD Frame device utilizes a thermal-magnetic trip mechanism to protect against severe faults. This unit-mount breaker fits into Siemens P4 and P5 panelboards. It accommodates 3/0 AWG to 500 kcmil wiring, though the required TA2J6500 lugs must be sourced separately. Capable of handling 35 kAIC at 480VAC, it is HACR rated and approved for reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Series | LXD6 |
| Amperage | 500A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | LXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Mounting Hardware, Lugs Not Included (Requires TA2J6500) |
| Standards | HACR, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, 2-Pole in 3-Pole Housing, HACR Rated, Reverse Feed |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens LXD62B500?
This breaker is designed for use in Siemens P4 and P5 panelboards, as well as Siemens switchboards. It requires a bolt-on connection to the bus.
What frame class does the LXD62B500 belong to?
It is part of the Siemens Sentron series and falls under the LD frame group.
What wire sizes are accepted by the lugs on this breaker?
The terminals accept wire sizes ranging from 3/0 AWG to 500 kcmil. They are rated for both copper (Cu) and aluminum (Al) conductors.
How does this breaker mount into an electrical enclosure?
It uses a unit mount, bolt-on connection type, meaning it bolts directly to the bus or mounting pan rather than snapping or plugging in.
Is the trip unit on the LXD62B500 fully adjustable?
No, it features a thermal magnetic trip unit with a fixed thermal setting for long-time protection and an adjustable magnetic setting for instantaneous protection.
Can this breaker be used in direct current (DC) systems?
Yes, it is rated for use in DC applications up to 250VDC, where it provides an interrupting rating of 30kA.
Does this breaker provide ground fault protection?
No, it includes LI (Long-Time and Instantaneous) functions only, providing standard thermal magnetic protection without integrated ground fault equipment protection.
