Siemens LXD63B600L Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
Siemens
LXD63B600L
Molded Case Circuit Breaker
Brand
Siemens
SKU
LXD63B600L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

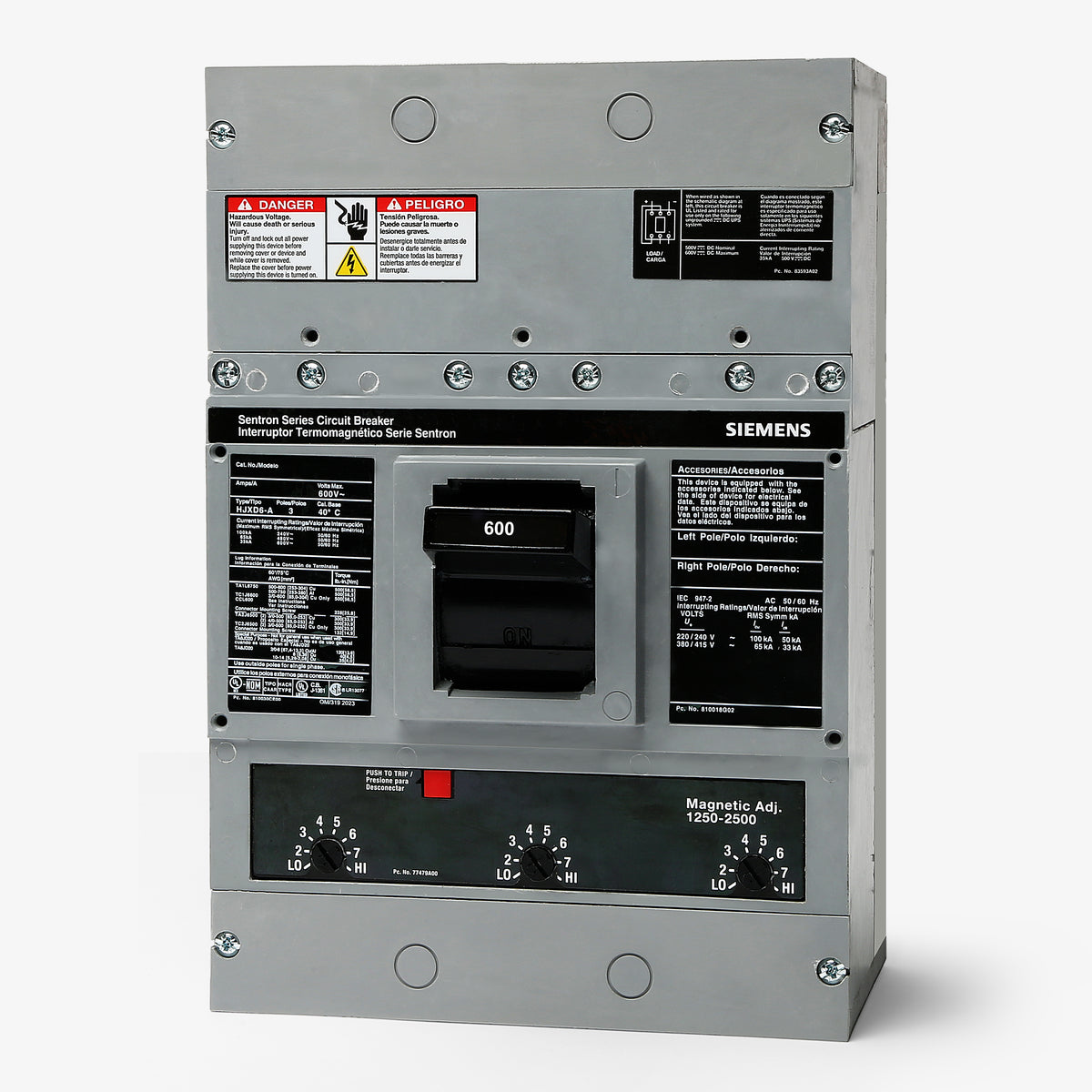

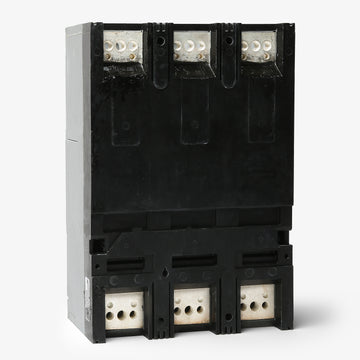

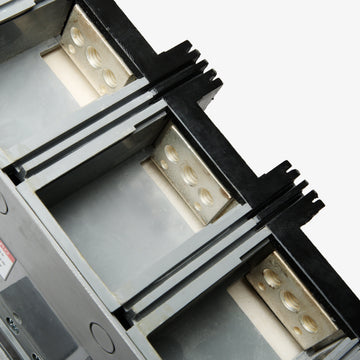

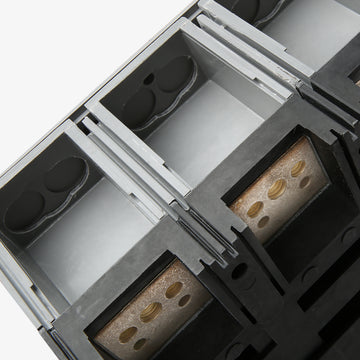

Siemens LXD63B600L - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens LXD63B600L - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LXD63B600L |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Wire Gauge | (2) 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA2J6500) |
| Standards | UL 489, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, HACR Rated |
Quantity
Siemens LXD63B600L - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Wire Gauge | (2) 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA2J6500) |
| Standards | UL 489, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, HACR Rated |
Similar Items
600A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
Description
Designed with factory-installed line and load lugs, the LXD63B600L simplifies wiring in commercial and industrial power systems. It integrates seamlessly into Siemens Sentron panelboards, enclosures, and switchboards as a unit-mount solution. This 600A, 3-pole breaker utilizes a thermal-magnetic trip unit to deliver long-time and instantaneous protection. It carries a standard 35kAIC rating at 480VAC and features a non-interchangeable trip design with HACR certification.Specifications
| Brand | Siemens |
|---|---|
| Part Number | LXD63B600L |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 25kA @ 500VDC |
| Frame Type | LD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards, Enclosures |
| Wire Gauge | (2) 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA2J6500) |
| Standards | UL 489, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, HACR Rated |
Product FAQs
8 answersWhat does the "L" suffix in the LXD63B600L catalog number indicate?
The "L" suffix means this circuit breaker comes assembled with factory-installed line and load lugs, specifically the TA2J6500 lug kit. If you order the standard LXD63B600 without the "L", the lugs must be ordered separately.
Is the Siemens LXD63B600L compatible with reverse feed applications?
Yes, standard Sentron LXD6 thermal-magnetic circuit breakers are suitable for reverse feed applications. You can safely backfeed this breaker in your panelboard or switchboard.
Can I swap the trip unit on the LXD63B600L if my load requirements change?
No. The LXD6 series features a factory-sealed, non-interchangeable trip unit. If you require a breaker with interchangeable trip capabilities within the same frame footprint, you must use the standard LD6 series, such as the LD63B600.
What equipment is compatible with this LD frame breaker?
The LXD63B600L is a unit-mount circuit breaker designed for direct installation into Siemens Sentron panelboards, switchboards, and individual industrial enclosures.
How do the thermal-magnetic trip adjustments work on this model?
This breaker utilizes a fixed thermal setting for long-time overload protection and an adjustable magnetic setting for instantaneous short-circuit protection. The magnetic trip range can be adjusted between 3000A and 6000A to coordinate with downstream devices.
What wire sizes are supported by the factory-installed lugs?
The included TA2J6500 lugs accept two conductors per phase. Each terminal accommodates 3/0 AWG to 500 kcmil copper or aluminum wire, allowing for parallel conductor routing in high-amperage feeds.
Can the LXD63B600L be used for HVAC equipment loads?
Yes, this molded case circuit breaker carries a Heating, Air Conditioning, and Refrigeration (HACR) rating, making it approved for protecting dedicated HVAC circuits.
Is this breaker approved for direct current (DC) systems?
Yes, the LXD63B600L is UL rated for up to 500VDC applications. It provides a 25kA interrupting capacity when deployed in qualified DC systems or battery banks.
