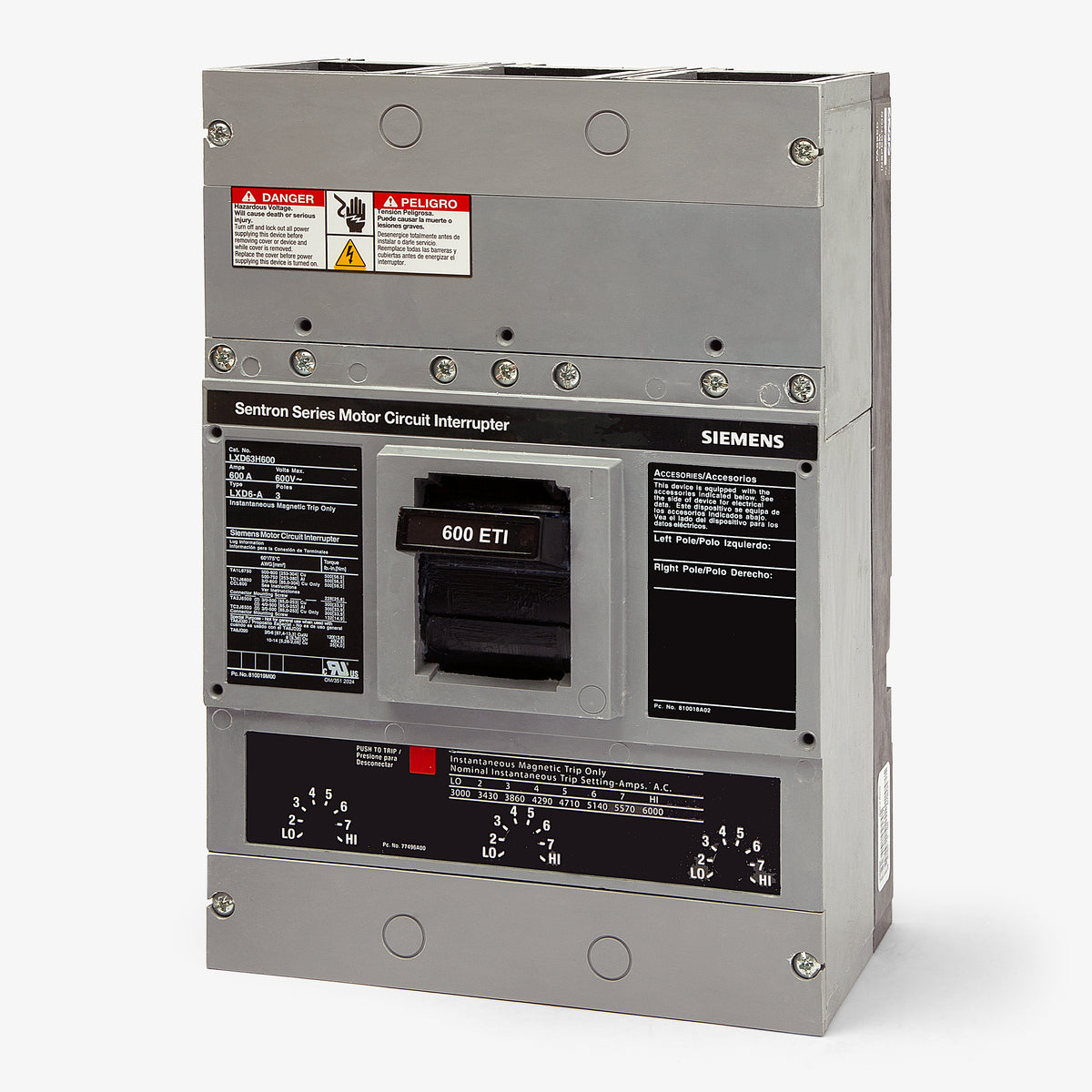

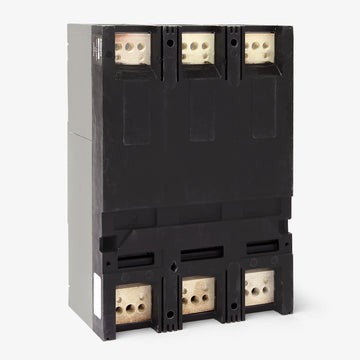

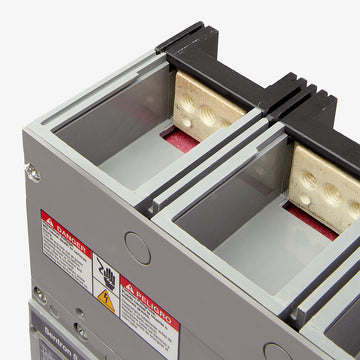

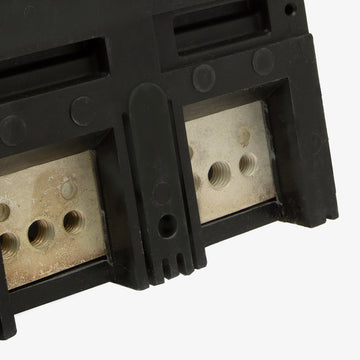

Siemens LXD63H600 Motor Circuit Protector
- 600A
- 3 Pole
- Unit Mount
Quantity
Siemens LXD63H600 - 600A 3 Pole Motor Circuit Protector
New
Quantity
Description
Designed to safeguard heavy machinery, the Siemens LXD63H600 is a 600A motor circuit protector from the Sentron LD frame family. It provides dedicated short-circuit defense, allowing motor starters and overloads to handle standard operational currents. This unit is engineered for integration into motor control centers and starters. Featuring an ETI trip unit with a high instantaneous range, it offers adjustable magnetic-only protection from 3000 to 6000A and a 65 kAIC rating at 240VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | LXD63H600 |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 3000-6000A |
|---|
| Frame Type | LXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Motor Starters |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included (Requires TA2J6500) |
| Standards | UL 489, IEC 60947-2, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Adjustable Instantaneous Trip, Non-Interchangeable Trip, Reverse Feed |
