Siemens LXD63S600A Molded Case Switch
Quantity
Core Specs
See full specs

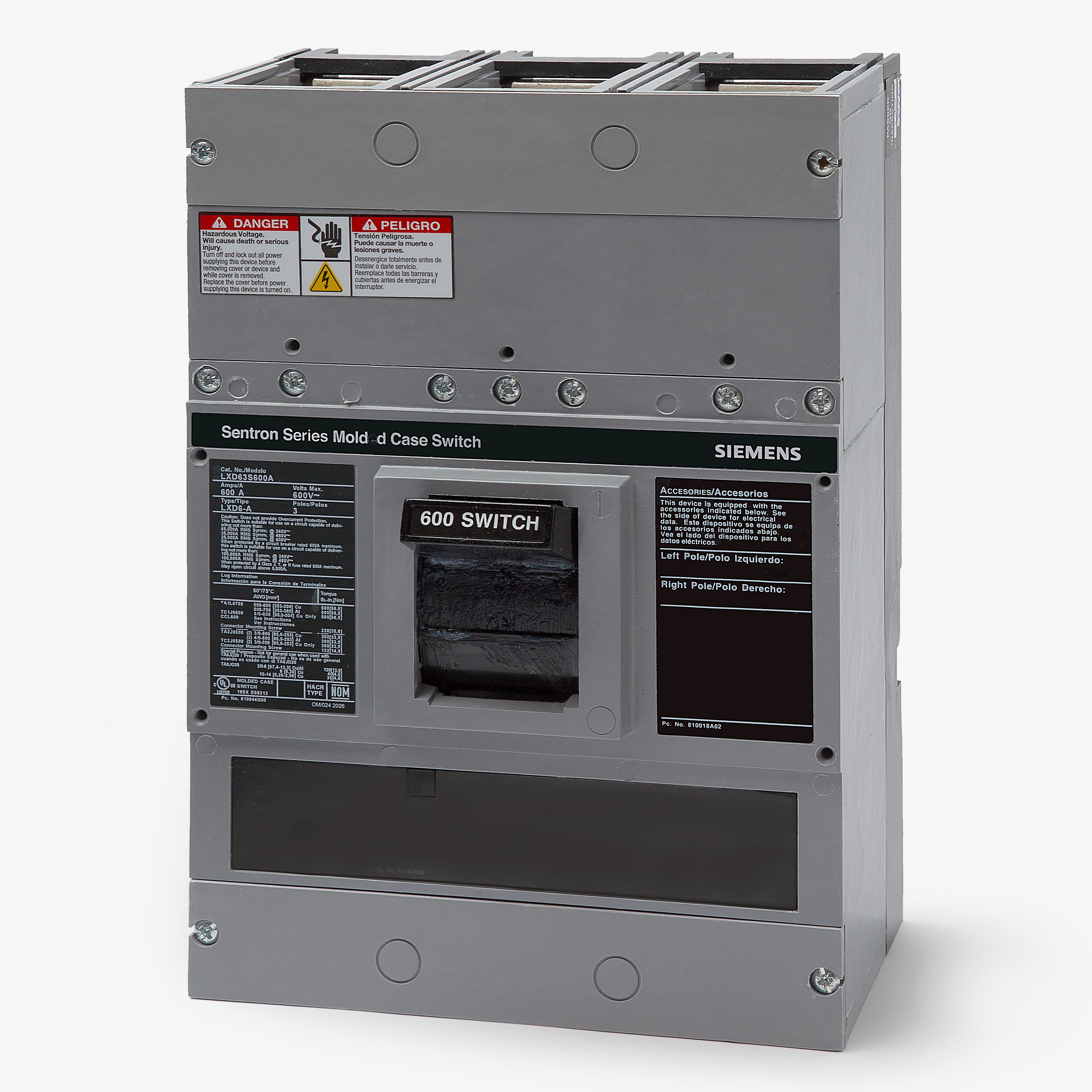

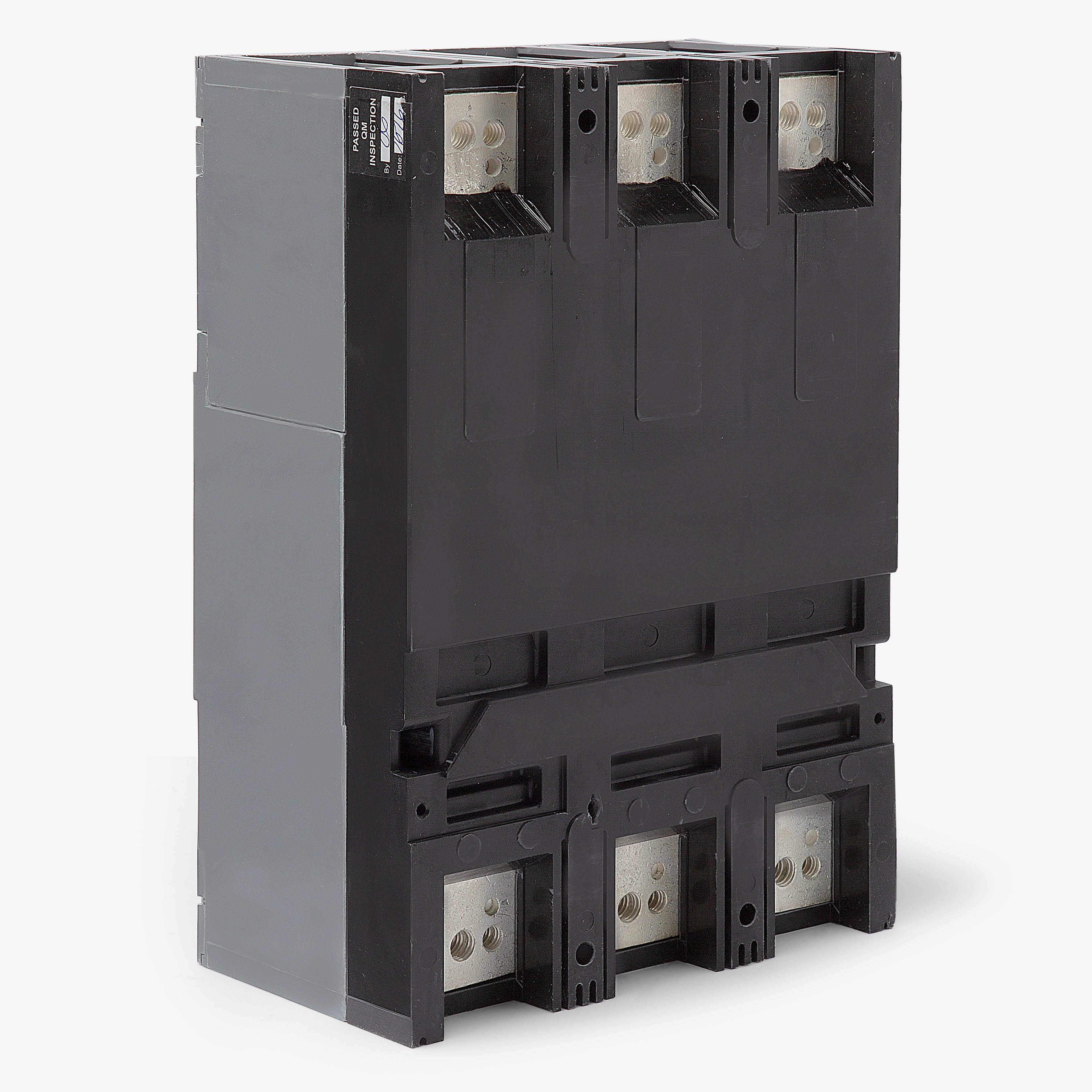

Siemens LXD63S600A - 600A 3 Pole Molded Case Switch
Re-Certified
Quantity
Quantity
Siemens LXD63S600A - 600A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | LXD63S600A-R |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | LXD |
|---|---|

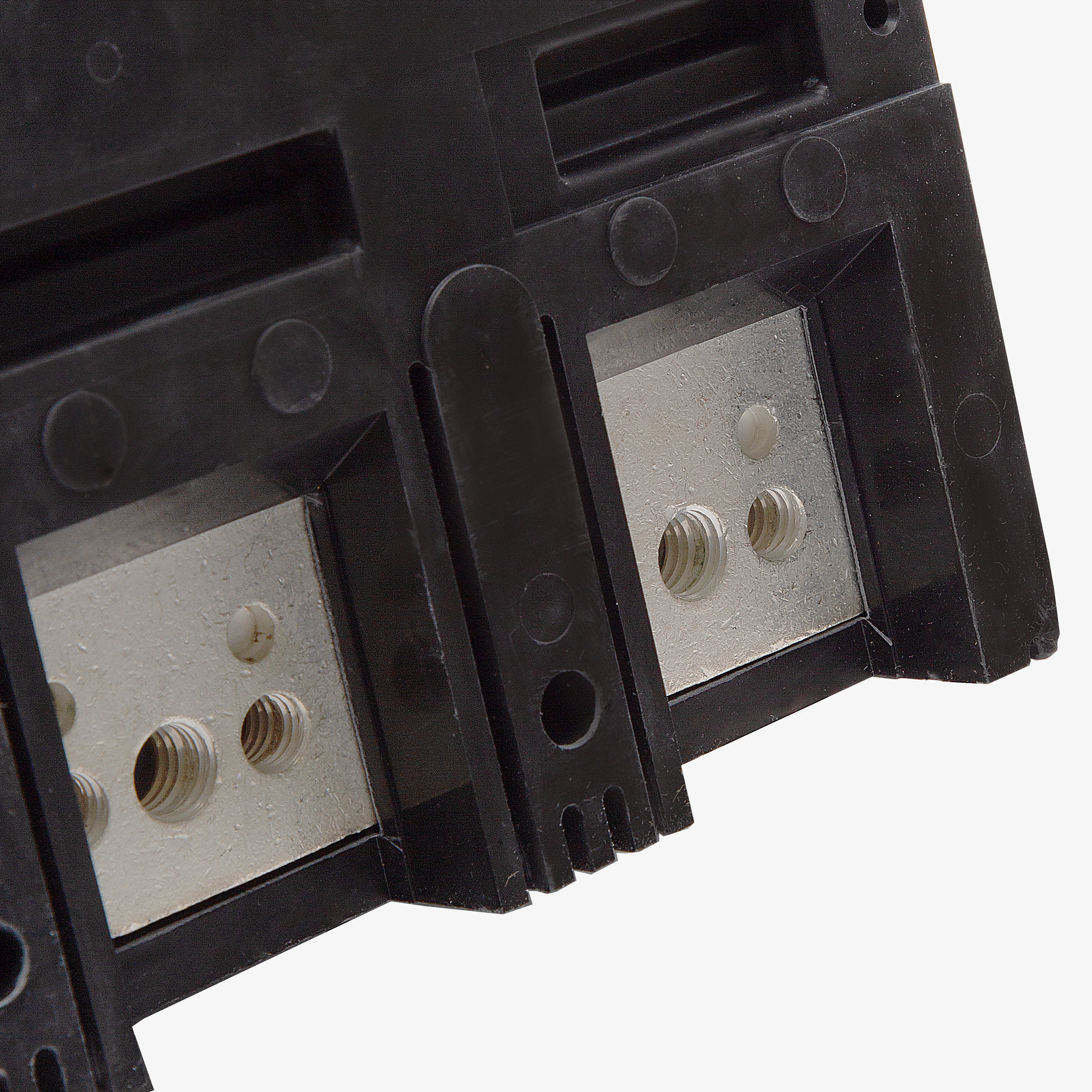

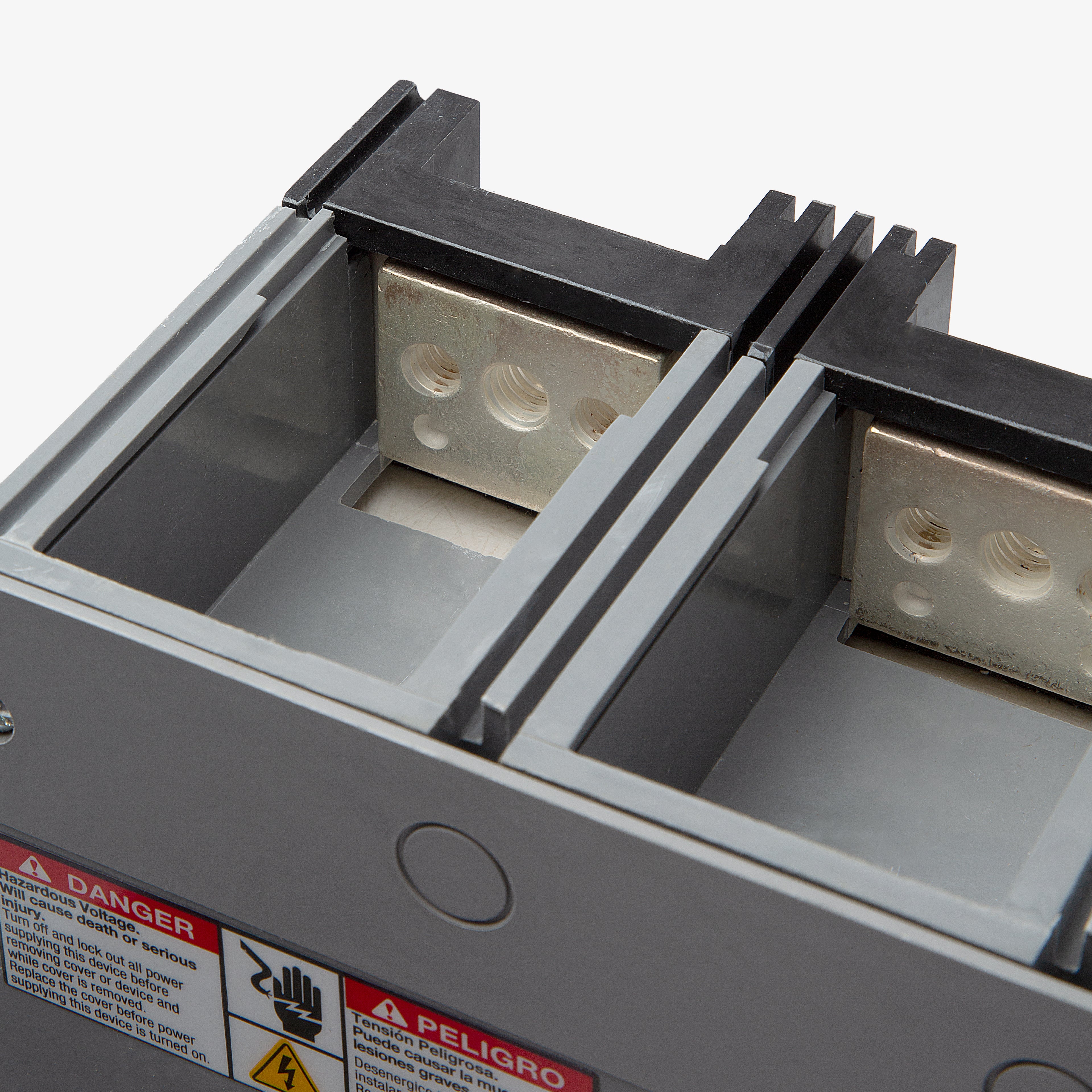

| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards, Enclosures |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Self-Protective Instantaneous Override, HACR Rated, Reverse Feed |
Quantity
Siemens LXD63S600A - 600A 3 Pole Molded Case Switch
New
Quantity
| Brand | Siemens |
|---|---|
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | LXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards, Enclosures |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Self-Protective Instantaneous Override, HACR Rated, Reverse Feed |
Description
Engineered for modern power systems, the LXD63S600A is a 600A molded case switch for industrial isolation. This 3-pole Siemens device is built on the robust LD frame. It mounts into Siemens P4 and P5 panelboards, switchboards, and enclosures. This unit serves as the updated replacement for the older LXD63S600 model. Unlike standard breakers, it provides no thermal overcurrent protection. It features a self-protective instantaneous override at 6000A to prevent damage during severe faults.Specifications
| Brand | Siemens |
|---|---|
| Part Number | LXD63S600A-R |
| Series | LXD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | LXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards, Enclosures |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Self-Protective Instantaneous Override, HACR Rated, Reverse Feed |
