Siemens MBK150A Main Breaker Kit
Siemens
MBK150A
Main Breaker Kit
Brand
Siemens
SKU
MBK150A
Quantity
Core Specs
See full specsShop with Confidence
Add an extra year of protection in your cart.

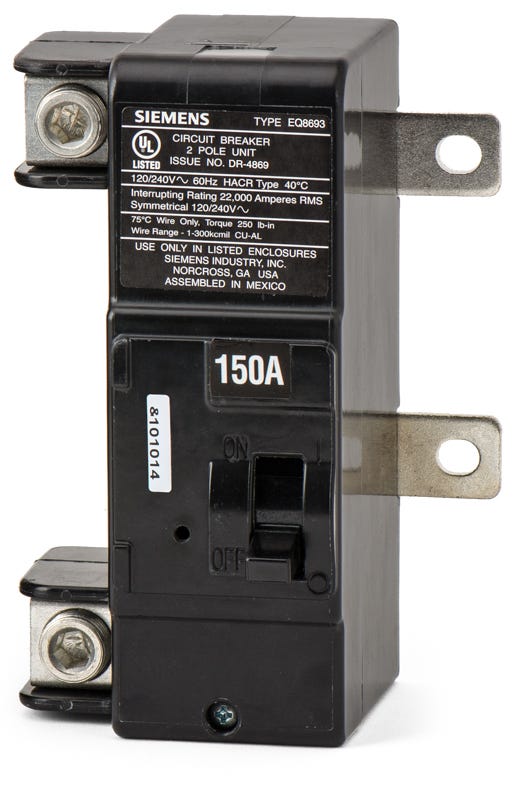

Siemens MBK150A - 150A 2 Pole Main Breaker Kit
New
Quantity
Quantity
Siemens MBK150A - 150A 2 Pole Main Breaker Kit
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | MBK150A |
| Series | MBK |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Ultimate Load Centers, PL Series, ES Series |
| Wire Gauge | 1 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Mounting Hardware, Breaker, Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker Kit, 22kA Interrupt Rating, Common Trip |
Sold out
Quantity
Siemens MBK150A - 150A 2 Pole Main Breaker Kit
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | MBK150A-R |
| Series | MBK |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Ultimate Load Centers, PL Series, ES Series |
| Wire Gauge | 1 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Mounting Hardware, Breaker, Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker Kit, 22kA Interrupt Rating, Common Trip |
Similar Items

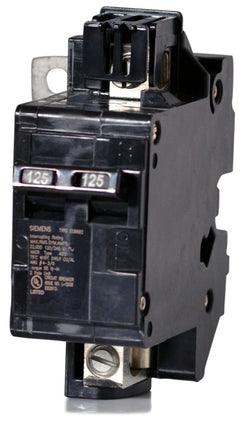

125A 2 Pole Main Breaker Kit
200A 2 Pole Main Breaker Kit

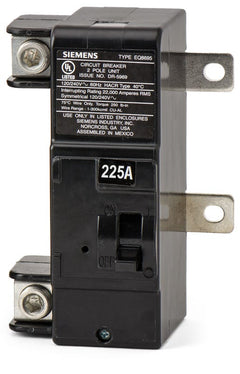

225A 2 Pole Main Breaker Kit
Description
Serving as the primary disconnect for residential systems, the Siemens MBK150A is a 150A main breaker conversion kit. Operating at 120/240VAC, this two-pole breaker ensures safe and reliable power distribution throughout the home. Designed to mount into Siemens Ultimate, PL, and ES series load centers using a secure bolt-on connection. It acts as a replacement for the older MBK150 and EQ9683 models. Featuring a 22kAIC interrupt rating, this kit handles substantial fault currents.Specifications
| Brand | Siemens |
|---|---|
| Part Number | MBK150A |
| Series | MBK |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Ultimate Load Centers, PL Series, ES Series |
| Wire Gauge | 1 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Mounting Hardware, Breaker, Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker Kit, 22kA Interrupt Rating, Common Trip |
