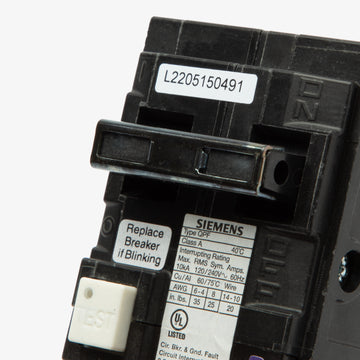

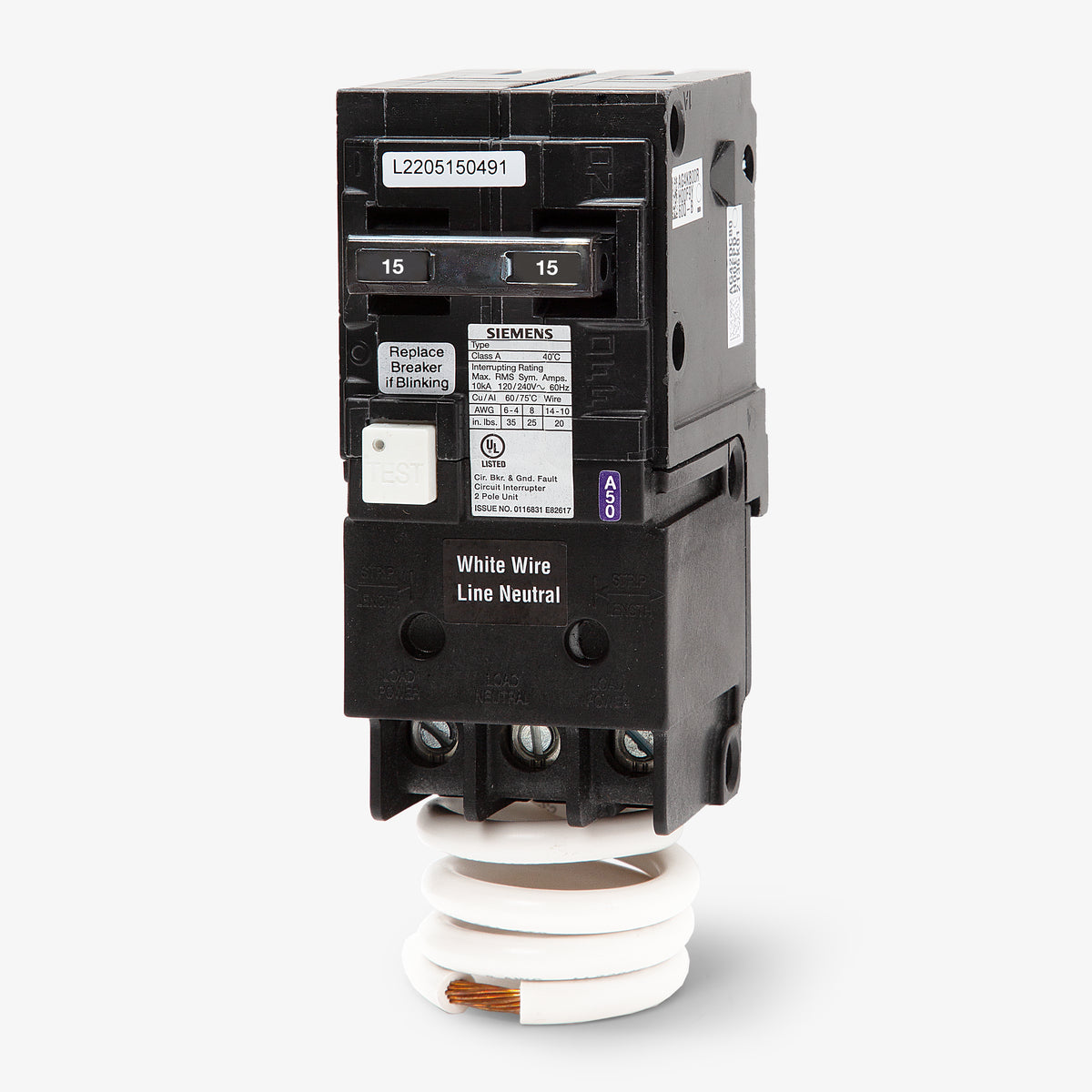

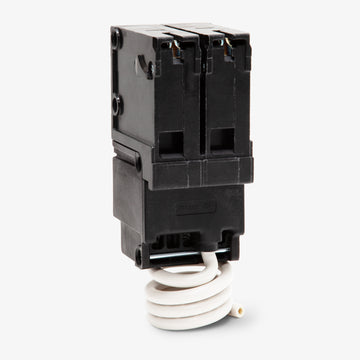

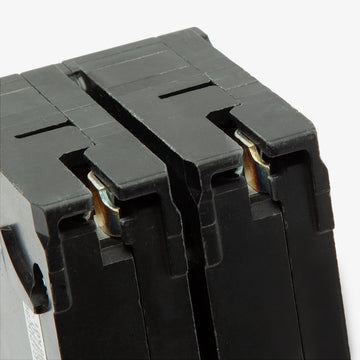

Siemens MP215GF GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Quantity
Siemens MP215GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Siemens MP215GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | MP215GF |
| Series | MP |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Quantity
Siemens MP215GF - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | MP215GF-R |
| Series | MP |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Description
Ground-fault protection for 240V circuits is delivered by the Siemens MP215GF, a 2-pole, 15A GFCI breaker. It includes a pigtail neutral and an integrated self-test mechanism that automatically verifies proper operation to comply with UL 943 standards. Designed for plug-on installation, this breaker fits into Murray and Siemens load centers. It is superseded by the Siemens QF215A for modern panel replacements.Specifications
| Brand | Siemens |
|---|---|
| Part Number | MP215GF |
| Series | MP |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Product FAQs
6 answersCan I install the MP215GF in a Siemens load center?
Yes. Siemens acquired Murray and officially cross-listed their breakers. The MP215GF is UL-listed for use in both Murray and Siemens plug-on load centers.
What level of ground fault protection does the MP215GF provide?
This breaker provides Class A ground fault protection, meaning it is designed to trip when it detects a ground fault of 5mA. This meets NEC requirements for personnel protection in wet locations.
How is the neutral connection wired on the MP215GF?
This breaker features a standard pigtail neutral. The coiled white pigtail wire must be connected directly to the load center's neutral bus bar to ensure the GFCI circuitry functions correctly.
How do I wire this 2-pole GFCI breaker if my 240V load does not use a neutral wire?
For straight 240V loads that do not require a neutral, leave the load neutral terminal on the breaker empty. However, you must still connect the breaker's coiled white pigtail wire to the panel's neutral bus bar for the GFCI circuitry to function.
Is the Murray MP215GF obsolete, and what is the direct replacement?
Yes, Siemens has phased out the Murray brand and the MP series. The official, UL-listed direct replacement for the MP215GF is the Siemens QF215A.
Is the MP215GF suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration motor loads that require 15A, 2-pole ground fault protection.
