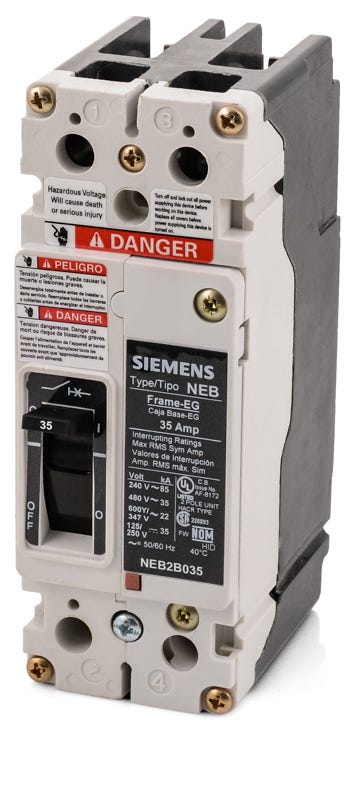

Siemens NEB2B035B Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Siemens
NEB2B035B
Molded Case Circuit Breaker
Brand
Siemens
SKU
NEB2B035B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens NEB2B035B - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Built for robust power distribution, this 35A, 2-pole Siemens NEB2B035B circuit breaker provides reliable thermal-magnetic protection. The bolt-on MCCB is specifically designed to mount into Siemens P1, P2, and P3 commercial panelboards. It delivers a 35kA interrupting rating at 480VAC and includes factory-installed load side lugs. This HACR-rated unit features a non-interchangeable trip and is officially replaced by the 3VA4135-6ED24-0AA0 when upgrading panel components.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NEB2B035B |
| Series | NEB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich Siemens panelboards accept the NEB2B035B circuit breaker?
The NEB2B035B is designed for installation in Siemens P1, P2, and P3 series panelboards.
Is the NEB2B035B rated for direct current (DC) systems?
Yes, this breaker is rated for use on DC systems up to 250VDC, providing an interrupting rating of 35kAIC at that voltage.
What wire sizes and materials are compatible with the NEB2B035B lugs?
The load-side lugs accept wire gauges from 14 AWG up to 1/0 AWG and are rated for both copper (Cu) and aluminum (Al) conductors.
What is the difference between Siemens NEB and HEB frame breakers?
NEB and HEB breakers share the same physical frame size and mount in the same panelboards, but HEB breakers feature a higher interrupting capacity (AIC rating) than standard NEB models.
How does the NEB2B035B connect to the panelboard bus?
This is a bolt-on circuit breaker that fastens directly to the panelboard bus using bolted connections, ensuring a secure and reliable contact in commercial or industrial environments.
Are the trip settings on the NEB2B035B adjustable?
No, this breaker features a fixed thermal-magnetic trip unit with non-adjustable long-time and instantaneous (LI) trip functions.
