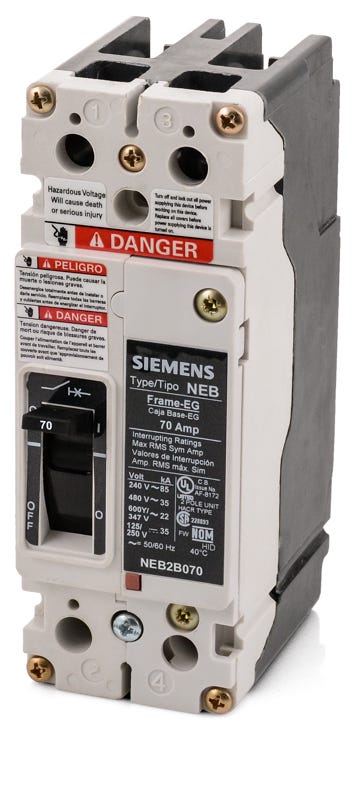

Siemens NEB2B070B Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Siemens
NEB2B070B
Molded Case Circuit Breaker
Brand
Siemens
SKU
NEB2B070B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens NEB2B070B - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens NEB2B070B - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | NEB2B070B |
| Series | NEB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens NEB2B070B - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | NEB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Siemens NEB2B070B is a 2-pole, 70A molded case circuit breaker from the Sentron family. It features fixed thermal-magnetic trip units with standard LI protection. This bolt-on MCCB installs seamlessly into Siemens P1, P2, and P3 panelboards. Note that this NEB frame unit is officially replaced by the newer 3VA4170-5ED24-0AA0 model. With a robust interrupting rating of 85kA at 240V and 35kA at 480V, this HACR-rated breaker handles demanding fault currents.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NEB2B070B |
| Series | NEB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the NEB2B070B circuit breaker?
This bolt-on circuit breaker is designed for use in Siemens P1, P2, and P3 series panelboards. It mounts directly to the panel bus using a bolted connection, ensuring a secure fit for commercial and industrial distribution.
What wire sizes are accepted by the lugs on this 70A breaker?
The factory-installed lugs accept 14 AWG to 1/0 AWG copper or aluminum conductors. Always verify that your selected wire gauge meets local electrical codes for a 70-amp circuit.
Can the NEB2B070B be used in DC electrical systems?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for DC applications up to 250V DC with a 35kAIC rating. This makes it suitable for specific industrial control or battery backup circuits.
What is the difference between Siemens NEB and HEB frame circuit breakers?
Both are part of the Siemens Sentron family and share the same physical dimensions and bolt-on mounting. The primary difference is the interrupting rating. The NEB frame provides standard interrupting capacity, while the HEB frame offers higher interrupting ratings for systems with greater available fault current.
Are the trip settings adjustable on the NEB2B070B?
No, this breaker features fixed thermal and fixed magnetic trip functions for both long-time and instantaneous protection. If your application requires adjustable trip curves, you will need to select a breaker with an electronic trip unit.
