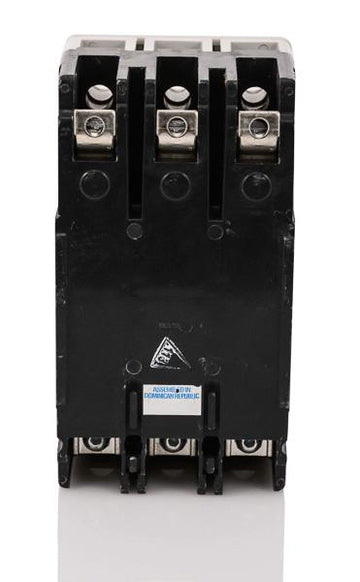

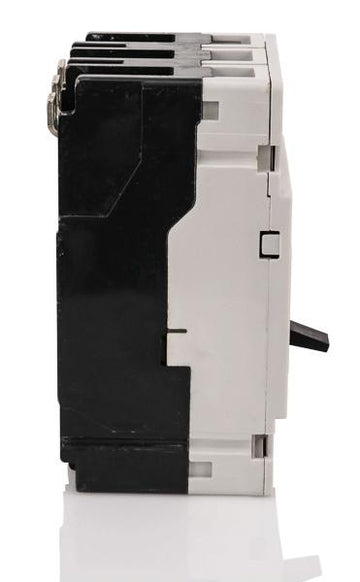

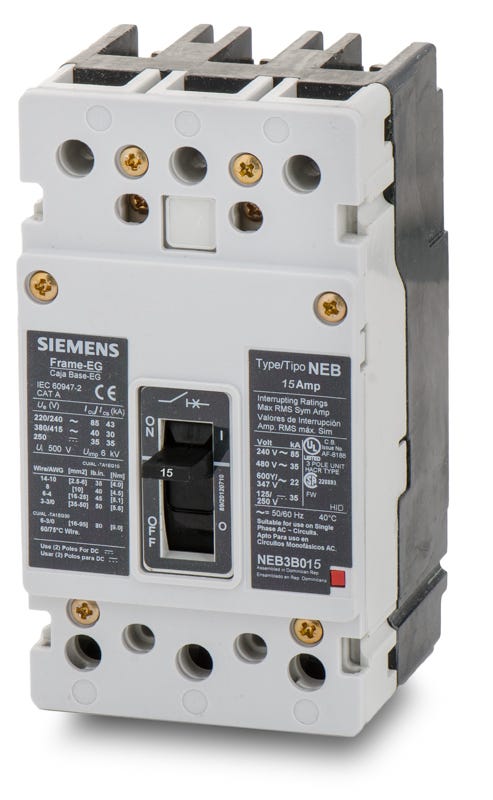

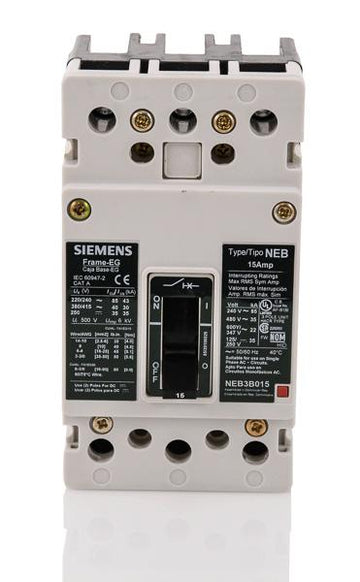

Siemens NEB3B015B Circuit Breaker
- 15
- 3 Pole
- Bolt-On
Siemens
NEB3B015B
Circuit Breaker
Brand
Siemens
SKU
NEB3B015B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens NEB3B015B 3 Pole Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens NEB3B015B 3 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | NEB3B015B |
| Series | NEB |
| Amperage | 15 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480V |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | AWG 14 to AWG 1/0, Cu/Al |
| Max Wire | AWG 1/0 |
| Min Wire | AWG 14 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Siemens NEB3B015B 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | NEB |
| Amperage | 15 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480V |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | AWG 14 to AWG 1/0, Cu/Al |
| Max Wire | AWG 1/0 |
| Min Wire | AWG 14 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Siemens NEB3B015B 3 Pole Circuit Breaker
The Siemens NEB3B015B is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480V. The NEB3B015B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Siemens |
|---|---|
| Series | NEB |
| Amperage | 15 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480V |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | AWG 14 to AWG 1/0, Cu/Al |
| Max Wire | AWG 1/0 |
| Min Wire | AWG 14 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards are compatible with the NEB3B015B circuit breaker?
This breaker is intended for direct installation into Siemens P1, P2, and P3 series panelboards.
What are the wire gauge requirements for this breaker?
The terminal lugs accept either copper or aluminum conductors. You can use wire sizes ranging from 14 AWG up to 1/0 AWG.
Are the trip settings on the NEB3B015B adjustable?
No, this model is built with fixed thermal and fixed magnetic trip settings. The long-time and instantaneous trip thresholds are set by the factory and cannot be modified.
Does this breaker snap into place or bolt on?
The NEB3B015B features a bolt-on connection type. It must be mechanically fastened to the panelboard bus using screws or bolts, rather than snapping onto a DIN rail or bus stab.
What is the short-circuit interrupting rating for this 15-amp breaker?
The maximum interrupting rating is 35kAIC when used on a 480VAC system, and 22kAIC on a 600Y/347VAC system. Ensure your available fault current does not exceed these values.
