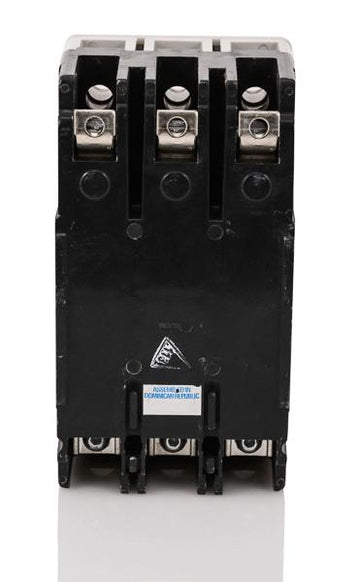

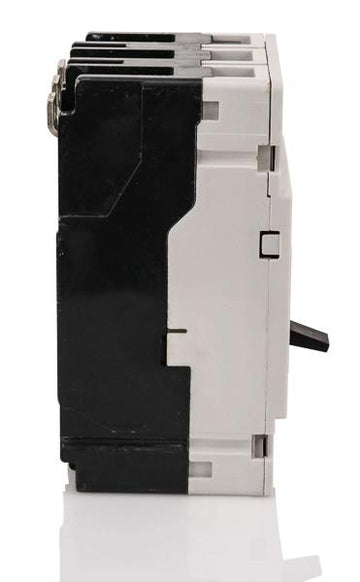

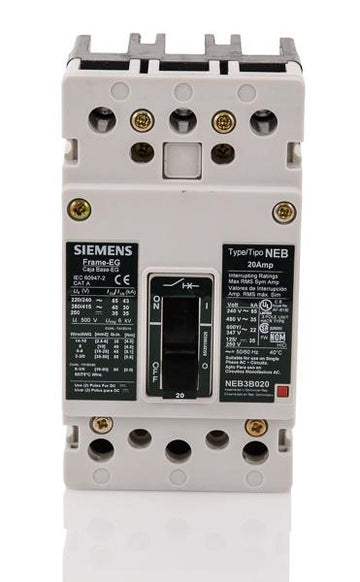

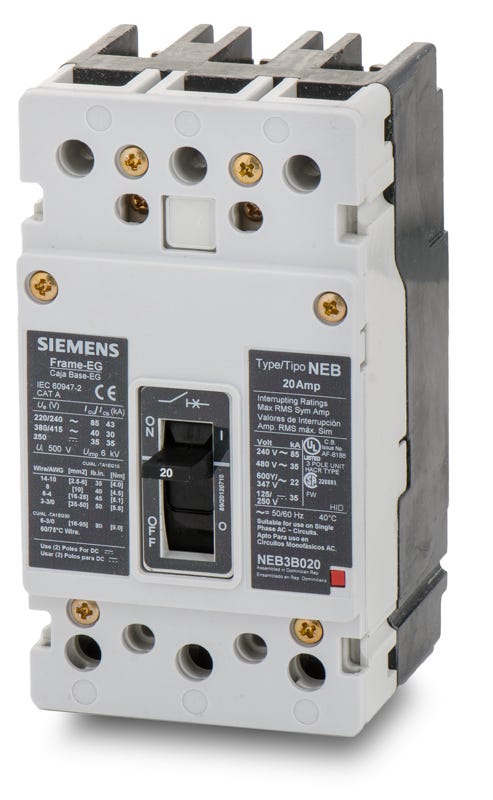

Siemens NEB3B020B Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Siemens
NEB3B020B
Molded Case Circuit Breaker
Brand
Siemens
SKU
NEB3B020B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens NEB3B020B - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens NEB3B020B - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | NEB3B020B |
| Series | NEB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens NEB3B020B - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | NEB3B020B-R |
| Series | NEB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron family, this 20-amp molded case circuit breaker delivers robust overcurrent protection for commercial and industrial electrical systems. It features a fixed thermal-magnetic trip unit and carries an 85kAIC rating at 240VAC to handle demanding fault conditions. Designed for seamless integration, the unit installs into Siemens P1, P2, P3, P4, and P5 panelboards. For future upgrades, it transitions to the 3VA4120-5ED34-0AA0 with an appropriate mounting strap kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NEB3B020B-R |
| Series | NEB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | NEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich Siemens panelboards are compatible with the NEB3B020B circuit breaker?
This bolt-on breaker is designed for installation in Siemens SENTRON P1, P2, P3, P4, and P5 series panelboards.
What wire sizes and conductor materials do the lugs on the NEB3B020B accept?
The standard lugs on this breaker accommodate wire sizes from 14 AWG up to 1/0 AWG and are rated for both copper and aluminum conductors.
Can the NEB3B020B be used in direct current (DC) applications?
Yes, this thermal-magnetic breaker is rated for DC use. It provides an interrupting capacity of 35kA at 250VDC.
Does the NEB3B020B use a plug-in or bolt-on connection?
This is a bolt-on circuit breaker. It requires a bolted connection directly to the panelboard busbar, ensuring a secure and reliable contact for commercial or industrial applications.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the NEB3B020B features a non-adjustable thermal-magnetic trip unit. Both the long-time (thermal) and instantaneous (magnetic) trip functions are fixed at the factory.
