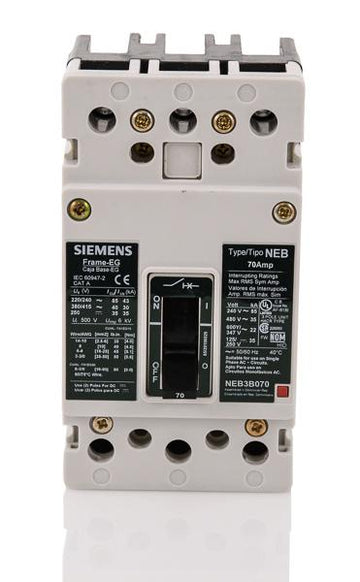

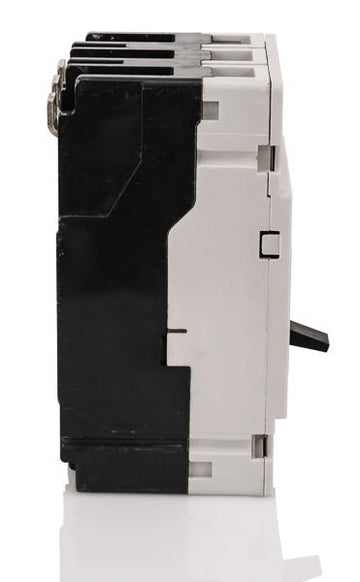

Siemens NEB3B070B Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Siemens
NEB3B070B
Molded Case Circuit Breaker
Brand
Siemens
SKU
NEB3B070B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens NEB3B070B - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Siemens NEB3B070B is a 3-pole, 70A molded case circuit breaker from the SENTRON family. It provides dependable long-time and instantaneous thermal-magnetic trip functions. This NEB frame unit utilizes a bolt-on mounting style to install into Siemens P1, P2, and P3 panelboards. For modern upgrades, it is replaced by the 3VA4170-6ED34-0AA0 using a 3VA41 kit. Rated 85kAIC at 240V, it includes load side lugs and is HACR rated for HVAC equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | NEB3B070B |
| Series | NEB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1EG10) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersCan I install the NEB3B070B in a standard residential load center?
No. The NEB3B070B is a bolt-on molded case circuit breaker designed specifically for commercial Siemens P1, P2, and P3 panelboards. It will not fit in standard residential plug-on load centers.
Does the NEB3B070B include both line and load lugs?

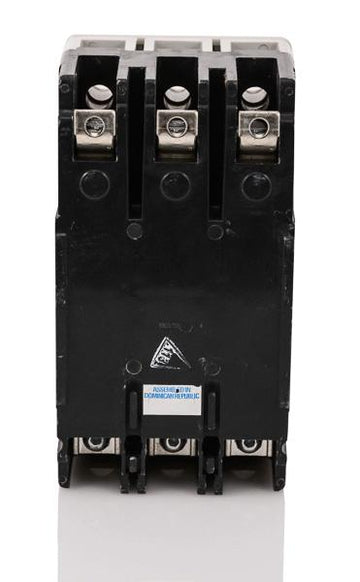

No. Because it is a bolt-on breaker, the line side bolts directly to the panelboard bus. It only includes factory-installed lugs on the load side.
Can I use this to replace an older ITE NEB3B070B breaker?
Yes. Siemens acquired ITE, and this current production breaker is the exact direct replacement for legacy ITE NEB3B070B models.
Is the NEB3B070B suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
Can this breaker be used in direct current (DC) systems?
Yes, the NEB3B070B is rated for up to 250 VDC with a 35 kA interrupting capacity, allowing it to be used in compatible commercial DC applications.
