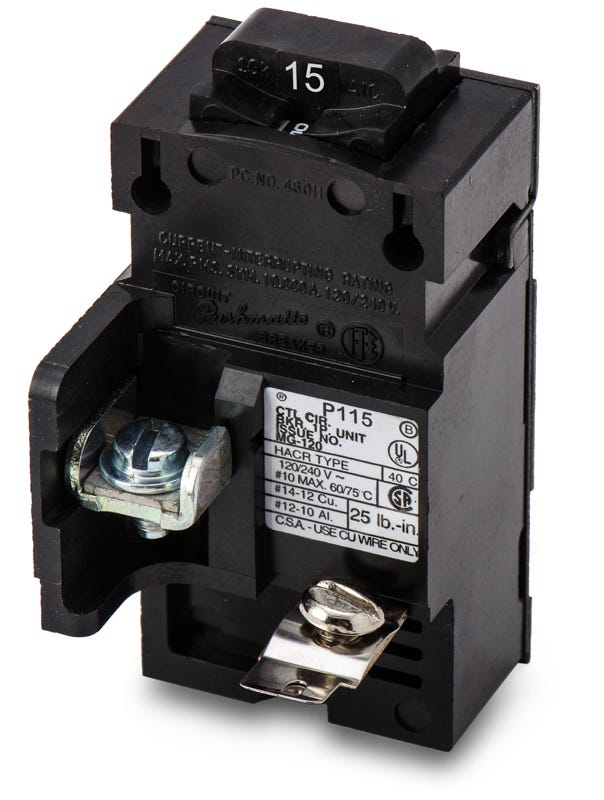

Siemens P115 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
P115
Molded Case Circuit Breaker
Brand
Siemens
SKU
P115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens P115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens P115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P115 |
| Series | P |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Push-Button Actuation, HACR Rated |
Quantity
Siemens P115 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P115-R |
| Series | P |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Push-Button Actuation, HACR Rated |
Similar Items
40A 1 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built specifically for older residential and commercial systems, the Siemens P115 is a 15-amp, single-pole circuit breaker. It features the classic push-button design unique to the Pushmatic family, providing clear visual trip indication and reliable thermal-magnetic protection. This bolt-on breaker installs into existing Pushmatic load centers. It is a fully compatible drop-in replacement for discontinued Gould and Bulldog P115 breakers. Rated for 10kAIC at 120VAC and HACR listed.Specifications
| Brand | Siemens |
|---|---|
| Part Number | P115 |
| Series | P |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Push-Button Actuation, HACR Rated |
Product FAQs
5 answersWhat panels accept the Siemens P115 circuit breaker?
The Siemens P115 is built specifically for Pushmatic load centers. It features a unique physical footprint and push-button design that is not compatible with standard modern load centers.
Can the Siemens P115 replace older Bulldog or ITE breakers?
Yes, Siemens acquired the Pushmatic line, and the P115 serves as a direct replacement for discontinued Bulldog, ITE, and Gould P115 circuit breakers.
How is the Siemens P115 installed in a Pushmatic panel?
The P115 is a bolt-on breaker that screws directly into the busbar of a Pushmatic load center. Ensure the panel is de-energized before bolting the breaker into place to maintain safety.
How is a tripped Siemens P115 breaker identified and reset?
The P115 uses a push-button actuator rather than a standard toggle switch. When tripped, the button pops out to provide a clear visual indicator. To reset the breaker, simply press the button back in.
Is the Siemens P115 suitable for HVAC equipment?
Yes, the P115 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific certification.
