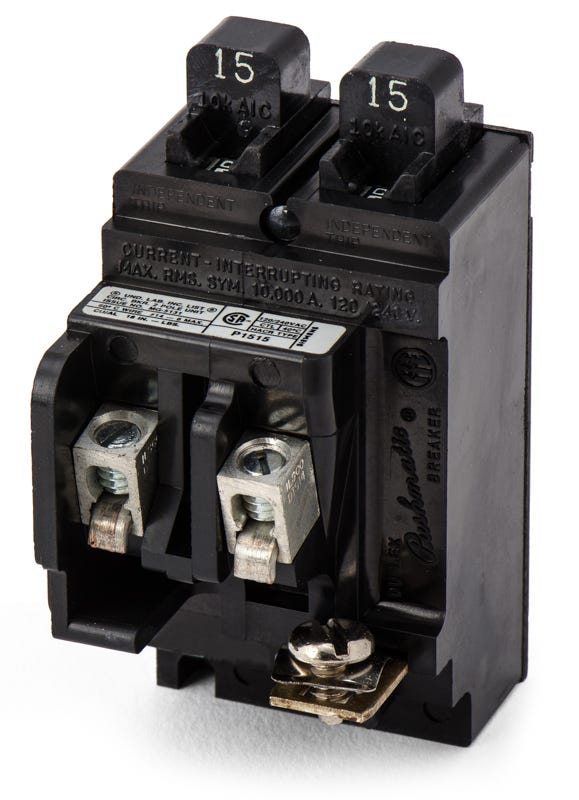

Siemens P1515 15/15A Tandem Molded Case Circuit Breaker
- 15/15A
- 1 Pole
- Bolt-On
Quantity
Siemens P1515 - 15/15A Tandem Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens P1515 - 15/15A Tandem Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P1515 |
| Series | P |
| Amperage | 15/15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Handle Tie, Padlock Attachment |
| Accessories | Mounting Hardware |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Siemens P1515 - 15/15A Tandem Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P1515-R |
| Series | P |
| Amperage | 15/15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Handle Tie, Padlock Attachment |
| Accessories | Mounting Hardware |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Description
Engineered for legacy electrical systems, this dual 15-amp component utilizes the distinctive push-button mechanism characteristic of vintage designs. It provides reliable thermal-magnetic protection for branch circuits. The bolt-on connection fastens securely into Pushmatic load centers, serving as an exact substitute for discontinued Gould P1515 models. Rated for 10kA interrupting capacity at 120VAC, it features a duplex layout that maximizes available panel space.Specifications
| Brand | Siemens |
|---|---|
| Part Number | P1515 |
| Series | P |
| Amperage | 15/15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Handle Tie, Padlock Attachment |
| Accessories | Mounting Hardware |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat load centers are compatible with the Siemens P1515?
The P1515 is designed exclusively for legacy Pushmatic load centers. It will not fit standard plug-on or bolt-on panels from other product lines.
Will this tandem breaker fit in any Pushmatic panel slot?
It fits in Pushmatic panels that are designed to accept twin or duplex breakers. You must verify your panel's wiring diagram to ensure tandem breakers are permitted in the specific slot you intend to use.
How many circuits does the P1515 provide?
As a tandem breaker, it provides two independent 15-amp, 120V circuits while only occupying a single breaker space in a Pushmatic panel.
Does this breaker use a standard toggle switch?
No, it utilizes the distinctive push-button mechanism characteristic of vintage Pushmatic designs, rather than a traditional flip toggle.
How does the P1515 mount into the panel?
This breaker uses a bolt-on connection. It fastens securely to the busbar using screws, which is the standard mounting method for all Pushmatic-style load centers.
Can this breaker replace older ITE or Gould Pushmatic models?
Yes, the Siemens P1515 is a direct replacement for discontinued Bulldog, ITE, and Gould P1515 tandem breakers. It also serves as a replacement for aftermarket options like the UBI UBIP1515.
