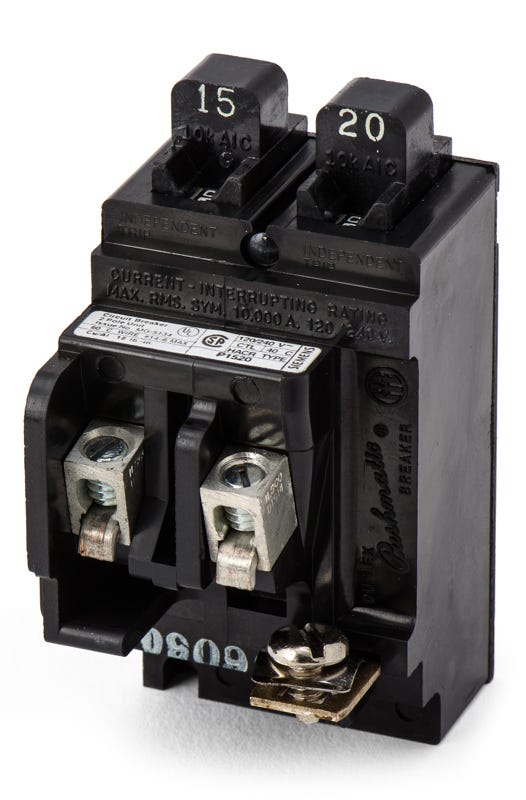

Siemens P1520 15/20A Tandem Molded Case Circuit Breaker
- 15/20A
- 1 Pole
- Bolt-On
Quantity
Siemens P1520 - 15/20A Tandem Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens P1520 - 15/20A Tandem Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P1520 |
| Series | P |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Handle Tie, Padlock Attachment |
| Accessories | Mounting Hardware |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Quantity
Siemens P1520 - 15/20A Tandem Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P1520-R |
| Series | P |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Handle Tie, Padlock Attachment |
| Accessories | Mounting Hardware |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Description
Maximizing available panel space, this 15/20A tandem breaker offers two distinct circuits within a single-pole footprint. It is built to handle standard residential and commercial electrical loads safely. Designed specifically for Pushmatic load centers, the unit utilizes a sturdy bolt-on connection for stable power delivery. It perfectly replaces older components and is cross-referenced with the UBIP1520 substitute.Specifications
| Brand | Siemens |
|---|---|
| Part Number | P1520 |
| Series | P |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Handle Tie, Padlock Attachment |
| Accessories | Mounting Hardware |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat load centers are compatible with the Siemens P1520 breaker?
This breaker is specifically designed for legacy ITE, Bulldog, and Siemens Pushmatic load centers. It will not fit standard plug-on or modern bolt-on panels from other product lines.
What are the direct replacements for the P1520?
The Siemens P1520 directly replaces older ITE and Bulldog Pushmatic breakers with the exact same P1520 catalog number. It also serves as a replacement for the UBIP1520 aftermarket substitute.
Can this tandem breaker be installed in any Pushmatic panel slot?
No. Because it is a tandem breaker providing two independent circuits in a single space, it must be installed in a panel slot that is rated to accept tandem configurations.
Does the P1520 provide a 240V circuit?
No. Although it provides two separate circuits (one 15A and one 20A), it is a tandem breaker that occupies a single pole space on the bus. It provides two independent 120V circuits on the same phase, not a single 240V circuit.
How do you manually operate the P1520 breaker?
It features the classic Pushmatic push-button actuation. Instead of a standard toggle switch, you push the button on the front of the breaker to engage or disengage the contacts.
Does the P1520 offer GFCI or AFCI protection?
No, this is a standard thermal-magnetic breaker providing overload and short-circuit protection. It does not include ground fault or arc fault circuitry.
