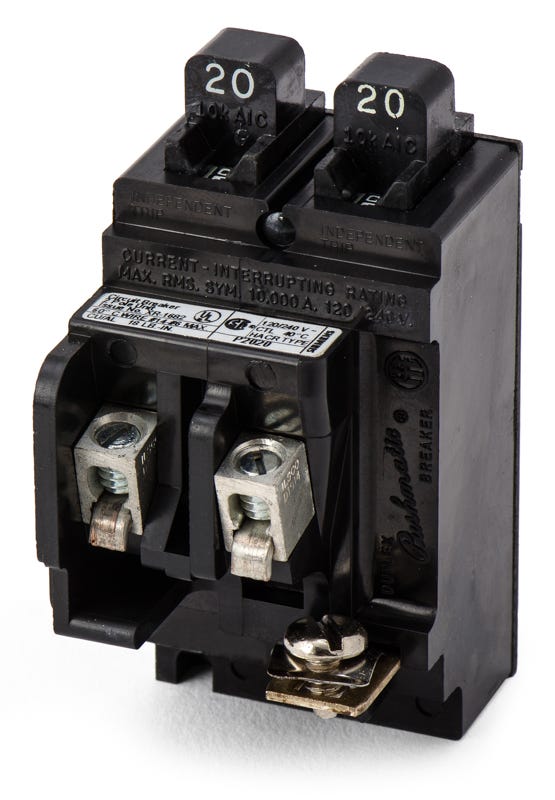

Siemens P2020 20/20A Tandem Molded Case Circuit Breaker
- 20/20A
- 1 Pole
- Bolt-On
Quantity
Siemens P2020 - 20/20A Tandem Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens P2020 - 20/20A Tandem Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P2020 |
| Series | P |
| Amperage | 20/20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Quantity
Siemens P2020 - 20/20A Tandem Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | P2020-R |
| Series | P |
| Amperage | 20/20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Description
Maximizing space in electrical panels, the Siemens P2020 tandem breaker provides two independent 20A circuits within a single-pole footprint. It features the classic push-button actuation unique to this series. Built for compatibility, it mounts into legacy ITE, Bulldog, and Siemens Pushmatic load centers. As a CTL-rated breaker, it requires panels that accept tandem configurations. Delivering reliable thermal-magnetic protection, it carries a 10kAIC rating at 120VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | P2020 |
| Series | P |
| Amperage | 20/20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | P |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | ITE / Siemens Pushmatic Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
5 answersWill the Siemens P2020 fit older Bulldog or ITE Pushmatic panels?
Yes. Siemens acquired ITE, which previously manufactured the Bulldog line. The Siemens P2020 is a direct replacement for older Bulldog and ITE Pushmatic breakers and fits standard Pushmatic load centers.
What does the tandem configuration of the P2020 provide?
As a tandem breaker, it supplies two independent 20-amp circuits while only occupying a single space in the load center. This is useful for adding capacity to a full panel, provided the panel is rated for tandem breakers.
How is the P2020 secured to the panel?
It features a bolt-on connection type. The breaker is fastened directly to the panel busbar using a built-in screw, ensuring a secure mechanical and electrical connection.
Does this replace the obsolete ITE P2020?
Yes. The Siemens P2020 shares the exact same physical dimensions and mounting hardware, making it a direct cross-reference for the legacy ITE P2020 and Bulldog P2020 twin breakers.
Is it safe to install the P2020 tandem breaker in any Pushmatic load center?
You must first verify your specific panel is rated to accept tandem breakers. Installing a tandem breaker in a panel or slot not designed for it can overload the busbar and violate electrical codes. Check the panel wiring diagram for tandem compatibility.
