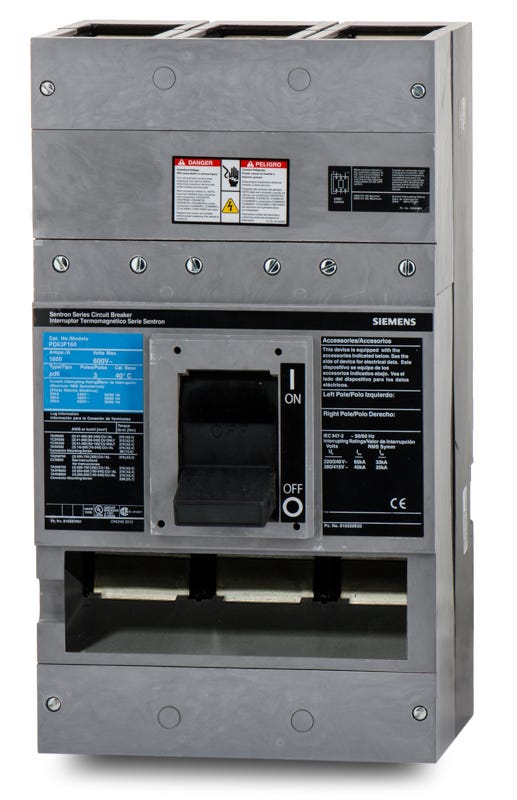

Siemens PD63F160 Frame
Quantity
Core Specs
See full specs
Siemens PD63F160 Frame
New
Quantity
Description
PD63F160 - Siemens Circuit Breaker Frame
• Authentic Siemens / ITE Product
• Fixed Thermal Adjustable Magnetic Trip Pd Frame
• 600 Vac At 50/60 Hz 250 To 500 Vdc
• 1200 To 1600 Ampere
• 3 Pole
• Interrupting Rating 65 Kiloampere At 240 Vac 50 Kiloampere At 480 Vac 25 Kiloampere At 600 Vac/500 Vdc (Ul)
• 65 Kiloampere At 220/240 Vac 40 Kiloampere At 380/415 Vac 30 Kiloampere At 500 Vac (Iec)
• Terminal Line Lug Load Lug
• Size 9 Inch W X 6.19 Inch D X 16 Inch H
• Speedfax[T
Specifications
| Mounting Type | Bolt-On |
|---|---|
| Voltage | 600 V |
| Poles | 3 |
| Series | PD |
| Phase | 3 |
|---|
| Contactor Type | Magnetic |
|---|
| Approval | UL Listed and IEC Rated |
|---|
| Brand | Siemens |
|---|
