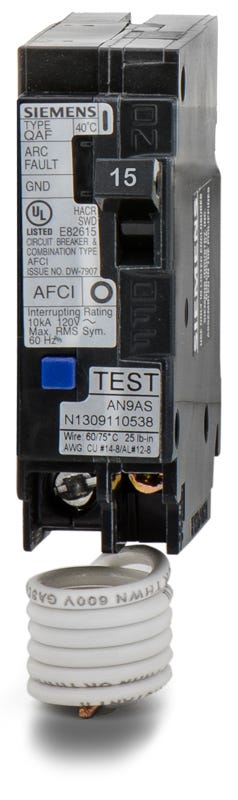

Siemens Q115AFC QA115AFC - 15A AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Siemens
Q115AFC
QA115AFC - 15A AFCI Miniature Circuit Breaker
Brand
Siemens
SKU
Q115AFC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QA115AFC - 15A AFCI Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens QA115AFC - 15A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q115AFC |
| Series | Q |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Insta-Wire, LED Trip Indicator |
Sold out
Quantity
Siemens QA115AFC - 15A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q115AFC-R |
| Series | Q |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Insta-Wire, LED Trip Indicator |
Similar Items
20A AFCI Miniature Circuit Breaker
QA120AFC - 20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Offering advanced combination arc-fault protection, the Siemens Q115AFC safeguards 120V residential circuits against both parallel and series arcing. This 15-amp, single-pole breaker meets modern NEC requirements for bedrooms and living spaces, helping to prevent electrical fires. The plug-on device fits Siemens and Murray load centers, utilizing a standard pigtail neutral connection. It serves as a direct upgrade for older branch/feeder models.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q115AFC |
| Series | Q |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Insta-Wire, LED Trip Indicator |
Product FAQs
8 answersCan I install the Siemens Q115AFC in a Murray electrical panel?
Yes, this breaker is UL listed for use in both Siemens and Murray load centers.
What is the difference between the QA115AFC and the Q115AFC?
They are the exact same circuit breaker. The QA115AFC catalog number simply indicates the retail packaged version of the Q115AFC.
How is the neutral wire connected on this breaker?
The Q115AFC features a pigtail neutral. The attached white pigtail wire must be routed and connected directly to the neutral bus bar in the panel for the arc fault circuitry to function properly.

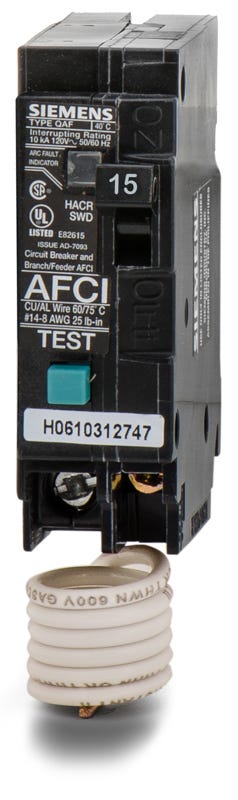

Does this breaker replace the older Q115AF model?
Yes. The older Q115AF is a Branch Feeder AFCI, while the Q115AFC is a Combination AFCI. The Q115AFC serves as a direct upgrade that adds series arc protection to meet modern electrical codes.
What type of arc fault protection does this breaker offer?
As a Combination Arc Fault Circuit Interrupter, it detects and mitigates both parallel and series arcing events to help prevent electrical fires in residential branch circuits.
Does the Q115AFC include diagnostic trip indicators?
Yes, this model includes an LED trip indicator to help electricians identify the specific cause of the fault after the breaker has tripped.
Is the Q115AFC suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 15A, 120V circuit.
Can this breaker be used as a switch for lighting circuits?
Yes, the Q115AFC is SWD rated for Switching Duty. This means it is approved for switching 120V fluorescent lighting loads on a regular basis.
