Siemens Q2100HH Miniature Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Siemens
Q2100HH
Miniature Circuit Breaker
Brand
Siemens
SKU
Q2100HH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

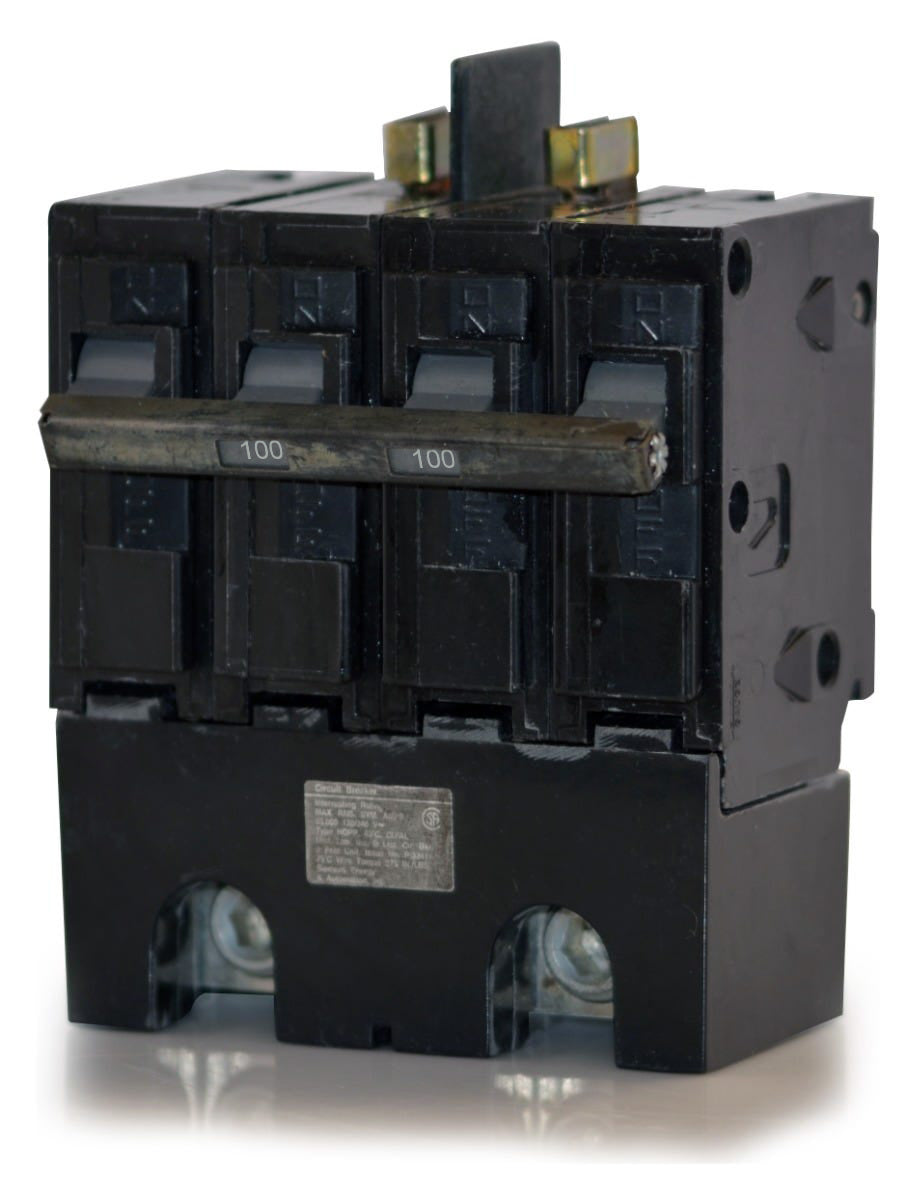

Siemens Q2100HH - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
Description
Rated 65 kAIC at 240V, this two-pole miniature circuit breaker delivers extra-high interrupting capacity for demanding commercial and industrial applications. It is designed to provide reliable thermal-magnetic protection for 100A circuits. The unit mounts into Siemens P1 panelboards and standard load centers using a simple plug-on connection. It features Insta-Wire technology for faster installation, common trip functionality, and carries an HACR rating for HVAC equipment.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q2100HH |
| Series | Q |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Extra High Interrupting Capacity, Common Trip, HACR Rated |
Product FAQs
6 answersWhich panelboards and load centers are compatible with the Q2100HH breaker?
This breaker is designed for use in Siemens P1 panelboards and standard Siemens load centers, including PL and ES series enclosures, that accept Type HQP plug-in circuit breakers.
What does the HH suffix in the Q2100HH catalog number indicate?
The HH designates this as a Type HQP breaker with an ultra-high interrupting rating of 65kAIC at 240V. This provides a higher fault current withstand capability compared to standard 10kAIC or 22kAIC versions.
What wire sizes and materials are accepted by the lugs on this 100A breaker?
The terminals accept 4 AWG to 1/0 AWG copper wire, or 2 AWG to 1/0 AWG aluminum wire. Ensure the connections are torqued to the manufacturer specifications printed directly on the breaker label.
Does the Q2100HH use a plug-in or bolt-on mounting connection?
The Q2100HH is a Type HQP breaker, which utilizes a plug-in connection for Siemens load centers. If you need a bolt-on breaker for a commercial panelboard, you will need the B2100HH instead.
Can the Q2100HH be used to replace a standard Q2100 or Q2100H breaker?
Yes. The Q2100HH shares the exact same physical dimensions and plug-in mounting style as the standard Q2100 and Q2100H. It serves as a direct drop-in replacement while upgrading the short-circuit interrupting rating to 65kAIC.
Is the Q2100HH suitable for protecting HVAC equipment?
Yes, this breaker is HACR rated. It is fully approved to provide branch circuit protection for heating, air conditioning, and refrigeration equipment requiring a 100A, 2-pole disconnect.
