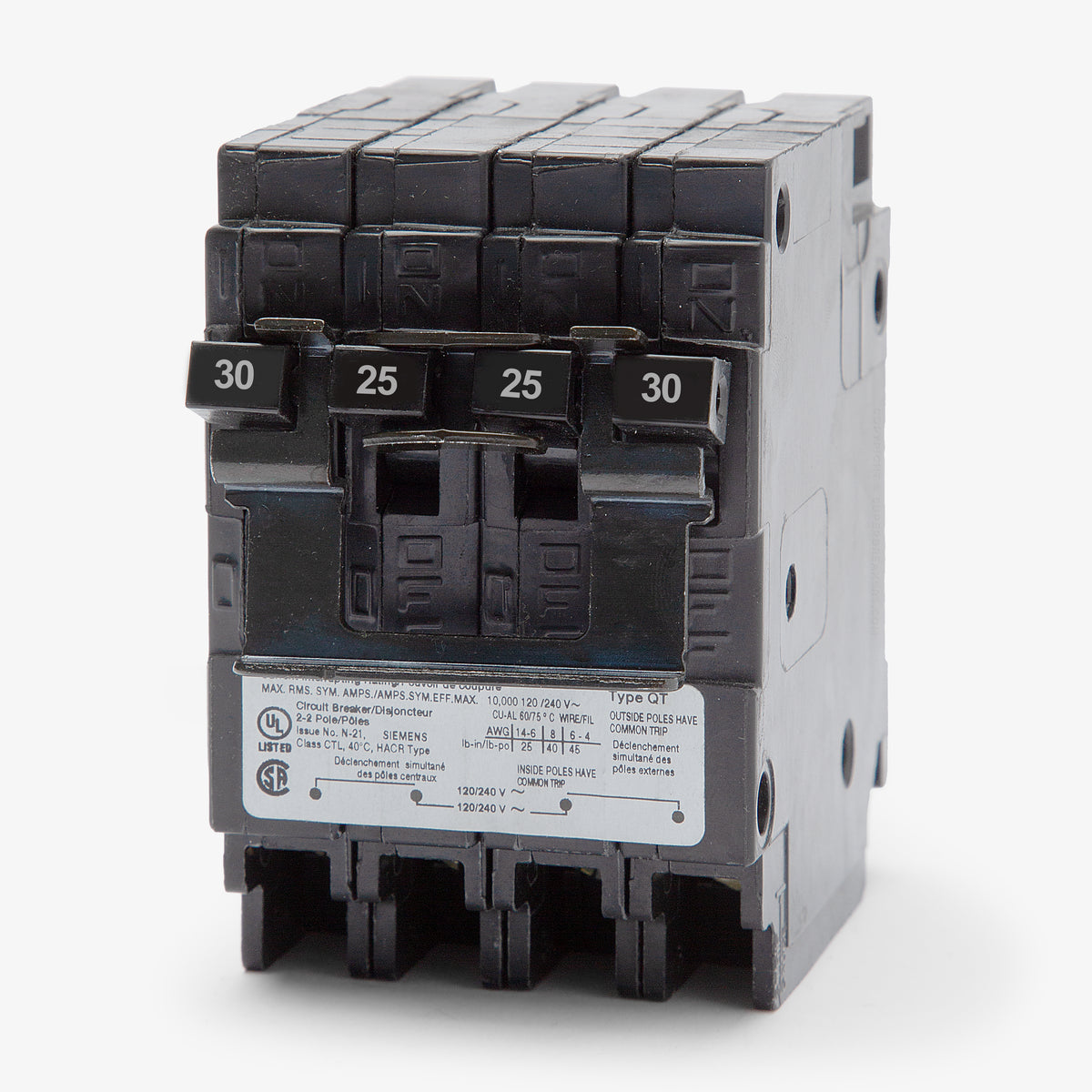

Siemens Q23025CT2 30/25A Quadplex Miniature Circuit Breaker
- 30/25A
- 4 Pole
- Plug-On
Quantity
Siemens Q23025CT2 - 30/25A Quadplex Miniature Circuit Breaker
New
Quantity
Description
Built for residential distribution, the Q23025CT2 provides two independent 240V circuits within a two-space footprint. This QT series quadplex features a 30A outer and a 25A inner two-pole circuit, doubling panel density. Equipped with a CTL rejection clip, it installs into modern Siemens and ITE load centers with notched stabs. It replaces the legacy MP23025CT2. The breaker delivers a 10 kAIC rating. Its common trip mechanism ensures both poles of a faulted 240V circuit trip together.Specifications
| Brand | Siemens |
|---|---|
| Series | Q |
| Amperage | 30/25A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (CTL), ITE Load Centers, Gould Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Insta-Wire, CTL Rejection |
Product FAQs
6 answersHow many panel spaces does the Siemens Q23025CT2 require?
This quadplex breaker requires two standard 1-inch panel spaces to provide two independent 240V circuits, which includes one 30A and one 25A double-pole circuit.
What does the CTL designation mean for this quad breaker?
CTL stands for Circuit Total Limiting. This breaker features a physical rejection clip that prevents installation in panel spaces not designed to accept tandem or quad breakers. It requires a load center with notched bus stabs.
Are the inner and outer circuits on the Q23025CT2 common trip?

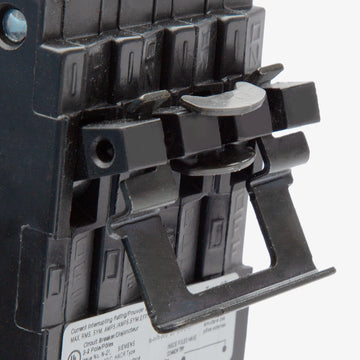

Yes, the CT2 designation indicates that both the inner 25A circuit and the outer 30A circuit feature an internal common trip mechanism. If one leg of a 240V circuit faults, both poles for that specific circuit will trip simultaneously.
Can the Siemens Q23025CT2 replace older Murray quad breakers?
Yes, this breaker is the direct replacement for the legacy Murray MP23025CT2 quadplex breaker.
Is the Q23025CT2 rated for HVAC equipment?
Yes, this breaker is HACR rated for use with compatible heating, air conditioning, and refrigeration equipment.
Which load centers are compatible with the Q23025CT2?
This plug-on breaker is designed for use in Siemens, ITE, and Gould load centers that are rated to accept Type QT CTL breakers.
