Siemens Q24020CT2 40/20A Quadplex Miniature Circuit Breaker
- 40/20A
- 2 Pole
- Plug-On
Quantity
Siemens Q24020CT2 - 40/20A Quadplex Miniature Circuit Breaker
New
Quantity
Description
The Q24020CT2 quadplex breaker saves residential panel space by combining a 40A double-pole and a 20A double-pole circuit into one unit. Requiring only two standard spaces, this plug-on breaker installs into compatible Siemens and Murray load centers. It easily substitutes the MP220240CT2. Featuring thermal-magnetic trip technology and a 10kAIC rating, it includes common trip functionality for both pairs to ensure reliable protection.Specifications
| Brand | Siemens |
|---|---|
| Series | QT |
| Amperage | 40/20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Tandem, CTL Rejection |
Product FAQs
5 answersWhich load centers can accept the Siemens Q24020CT2 breaker?
This Type QT breaker is compatible with Siemens and Murray load centers designed to accept CTL quadplex breakers. Check the wiring diagram on the panel door to confirm it allows Type QT breakers before installation.
Is the Q24020CT2 a direct replacement for older Murray quad breakers?
Yes, Siemens manufactures this breaker as a direct, UL listed replacement for the obsolete Murray MP220240CT2. It provides the exact same fit and function for legacy Murray panels.
What panel space is required to install this quadplex breaker?
The Q24020CT2 provides two separate double-pole circuits but requires only two standard 1-inch panel spaces. It must be installed on a section of the busbar notched for CTL rejection clips to prevent exceeding the maximum circuit capacity of the panel.
How does the common trip feature function on the Q24020CT2?

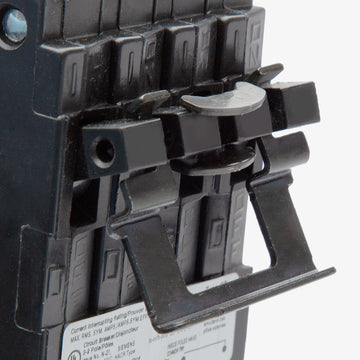

The CT2 designation indicates that both the 40A and 20A double-pole circuits have internal common trip mechanisms. If a fault occurs on one leg of a circuit, both legs of that specific circuit will trip simultaneously to safely disconnect power.

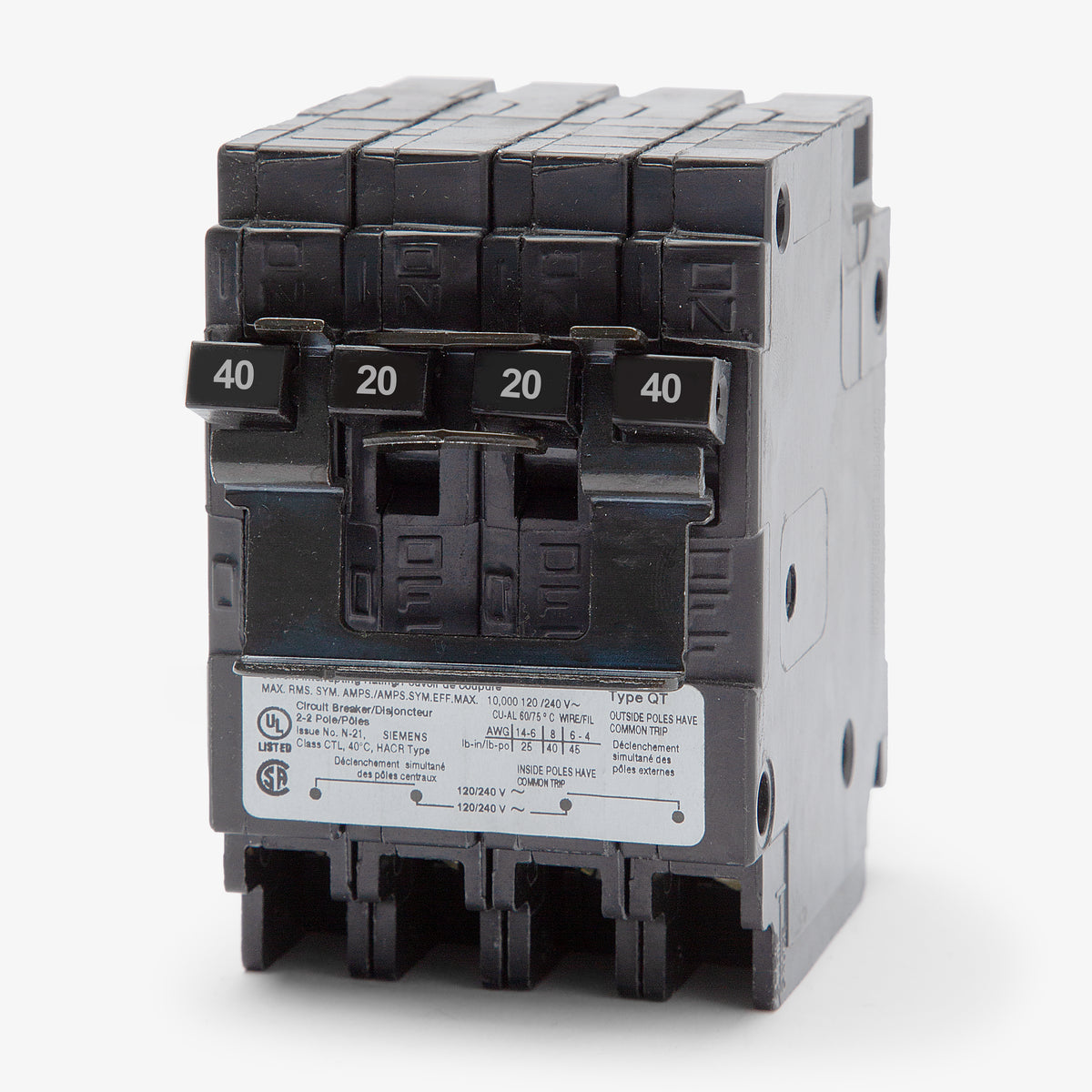

How are the 40A and 20A circuits arranged on this quad breaker?
The 40A double-pole circuit is located on the outer poles, while the 20A double-pole circuit is located on the inner poles. Each double-pole circuit operates independently.
