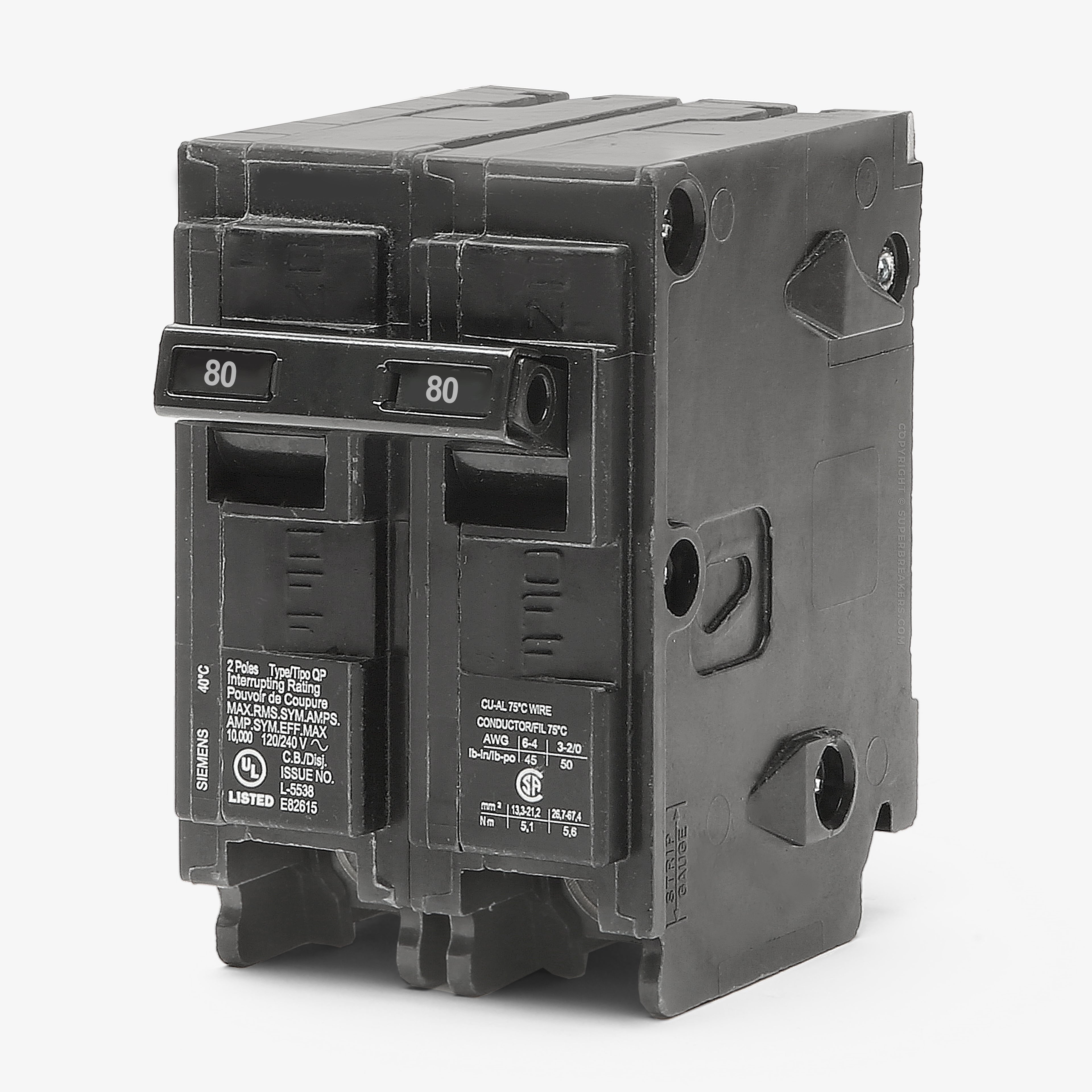

Siemens Q280 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Plug-On
Quantity
Siemens Q280 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens Q280 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q280 |
| Series | Q |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Quantity
Siemens Q280 - 80A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q280-R |
| Series | Q |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Description
Built for everyday electrical distribution, the Q280 delivers dependable 80-amp thermal-magnetic protection. This Type QP component is HACR rated for HVAC equipment. Installation is streamlined when mounting into Siemens load centers and panelboards. For facilities upgrading older infrastructure, this model acts as a seamless substitute for the legacy Murray MP280. Equipped with Insta-Wire technology, the terminals allow for rapid conductor insertion.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q280 |
| Series | Q |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
7 answersWhich load centers accept the Siemens Q280 circuit breaker?
This Type QP breaker is compatible with Siemens EQ, EQL, SEQ, EQG, PL, ES, and SN series load centers and panelboards.
Is the Siemens Q280 a direct replacement for the Murray MP280?
Yes. Siemens phased out the Murray brand and officially cross-listed the Type QP series as the UL-listed replacement for legacy Murray Type MP-T breakers, including the MP280.
How many panel spaces does the Siemens Q280 require?
As a 2-pole breaker in the standard 1-inch per pole format, it requires two adjacent spaces, taking up 2 inches total in the load center.
Is this circuit breaker HACR rated?
Yes, the Q280 is HACR rated, meaning it is approved for protecting heating, air conditioning, and refrigeration equipment circuits.
What is the difference between the Siemens Q280 and Q280H?
The Q280 has a standard interrupting rating of 10kAIC at 120/240VAC. The Q280H is the high-interrupting version of the same breaker, rated for 22kAIC.
Does the Q280 feature Insta-Wire technology?
Yes, this breaker includes Siemens Insta-Wire connectors. The terminal screws come backed out and ready for rapid conductor insertion, which saves time during installation.
Does the Q280 provide GFCI or AFCI protection?
No, the Q280 is a standard thermal-magnetic circuit breaker. It does not provide ground fault or arc fault protection.
