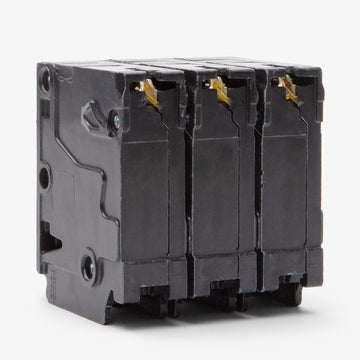

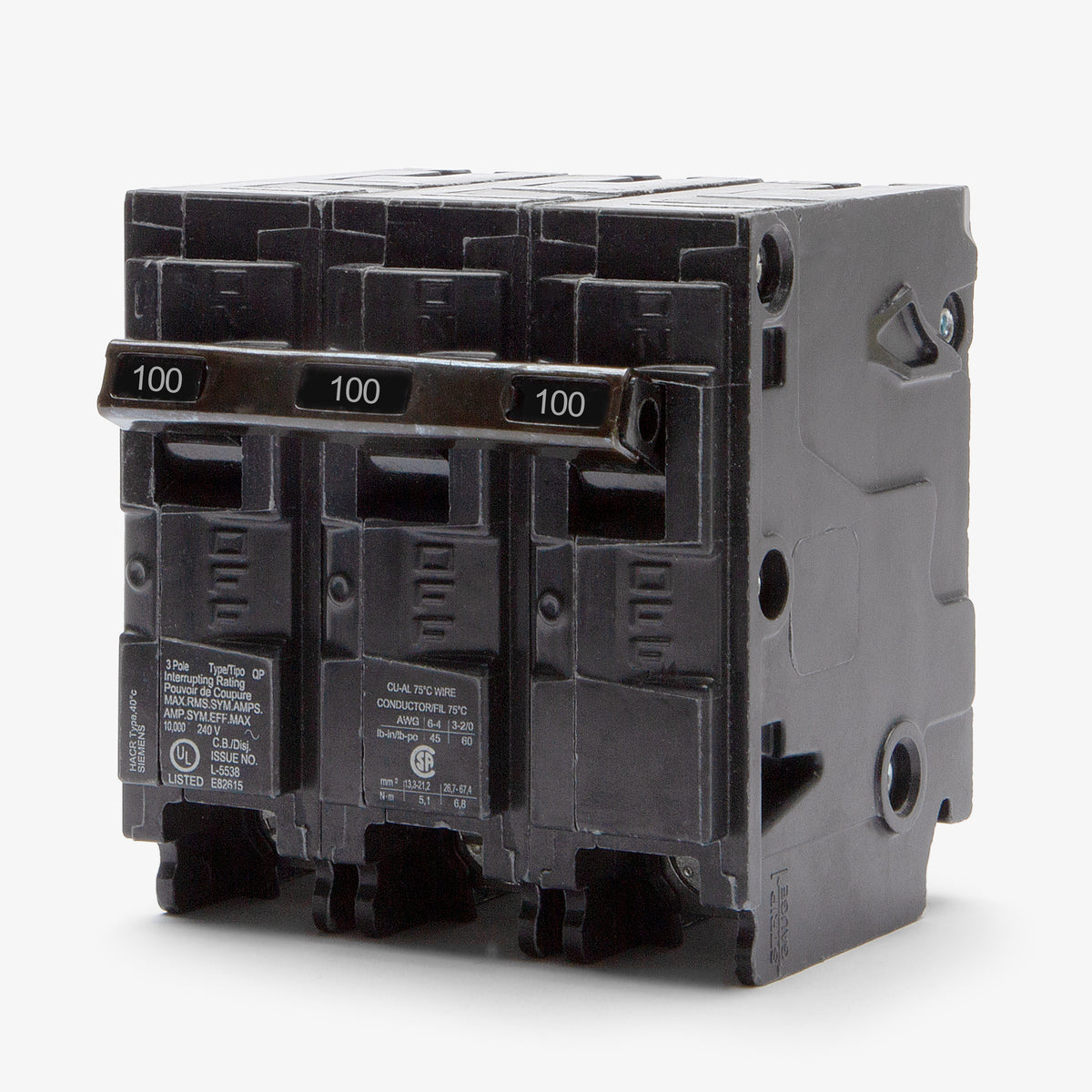

Siemens Q3100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Plug-On
Siemens
Q3100
Molded Case Circuit Breaker
Brand
Siemens
SKU
Q3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens Q3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q3100 |
| Series | Q |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Siemens Q3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q3100-R |
| Series | Q |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description

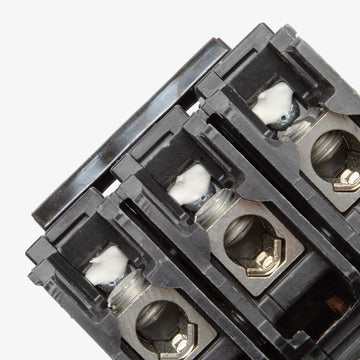

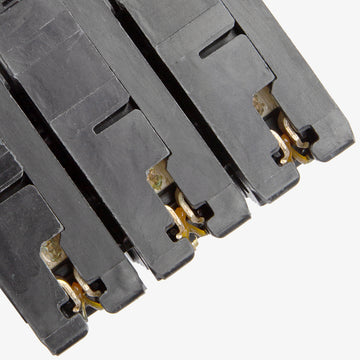

Engineered for commercial and industrial environments, the Siemens Q3100 is a three-pole molded case circuit breaker rated for 100A at 240VAC. It utilizes fixed thermal-magnetic trip functions to safeguard three-phase electrical systems against overcurrent events. The breaker installs into Siemens load centers and panelboards using a standard plug-on configuration. It replaces the discontinued MP3100. Equipped with Insta-Wire connectors, this HACR-rated unit streamlines wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q3100 |
| Series | Q |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Siemens Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
8 answersWill the Siemens Q3100 replace an older ITE Q3100 breaker?
Yes. Siemens acquired ITE, and this breaker is the direct manufacturer-approved replacement for the legacy ITE Q3100.
Can I use the Q3100 to replace a Murray MP3100?
Yes. Siemens has phased out the Murray brand, and the Q3100 is the official replacement for the discontinued Murray MP3100 3-pole breaker.
How many panel spaces does this 3-pole breaker require?
The Q3100 requires three full 1-inch spaces in your panel.
Is the Q3100 rated for air conditioning and refrigeration equipment?
Yes. This breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration circuits.
Can I install this 3-pole breaker in a standard residential single-phase panel?
No. The Q3100 is a 3-pole breaker designed for 3-phase systems. It will not fit or function correctly in a standard 120/240V single-phase residential panel.
Does this breaker require an external handle tie?
No external handle tie is needed. It features a factory-built common trip mechanism that ensures all three poles trip simultaneously during a fault.
Which load centers are compatible with the Q3100?
It is designed for use in 3-phase Siemens load centers and panelboards that accept QP type plug-on miniature circuit breakers.
Can the Q3100 be reverse-fed for use as a main breaker?
Yes. Standard Siemens QP breakers do not have line and load markings and can be back-fed. When used as a back-fed main, you must install an approved breaker hold-down clip to secure it to the panel per NEC requirements.
