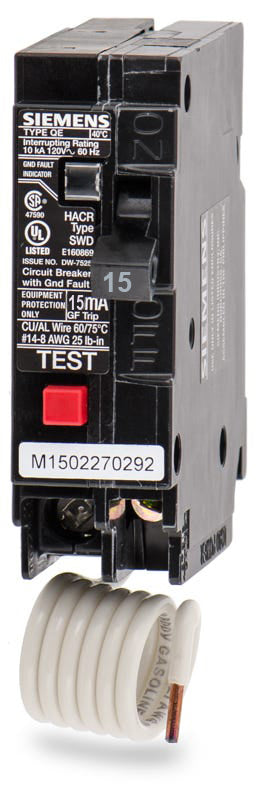

Siemens QE115H GFEP Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
Siemens QE115H - 15A GFEP Miniature Circuit Breaker
New
Quantity
Description
Part of the QP family, the Siemens QE115H is a 15A, single-pole equipment protection breaker with a high interrupting capacity of 22kAIC at 120VAC. It features a 30mA ground-fault trip threshold, making it ideal for protecting heat trace cables and machinery from line-to-ground faults. This plug-on breaker installs into Siemens EQ, PL, ES, and Ultimate load centers. It is replaced by the Q115EGH model. Equipped with a pigtail neutral, this thermal-magnetic breaker is HACR and SWD rated.Specifications
| Brand | Siemens |
|---|---|
| Series | QE |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, EQ, PL, ES, Ultimate Load Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 10 AWG (Cu), 8 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, High Interrupting Capacity, Insta-Wire |
Product FAQs
6 answersWhich load centers are compatible with the Siemens QE115H?
This plug-on breaker is designed for use in Siemens EQ, PL, ES, and Ultimate load centers.
What is the ground fault trip threshold for the QE115H?
The QE115H is a Ground Fault Equipment Protection (GFEP) breaker with a 30mA trip sensitivity. This is designed to protect machinery and heat trace cables from line-to-ground faults, rather than the 5mA threshold used for personnel protection.
What is the difference between the Siemens QE115 and the QE115H?
Both are 15A, 1-pole GFEP breakers with a 30mA trip threshold. The difference is the interrupting rating. The standard QE115 is rated at 10kAIC, while the QE115H has a higher interrupting capacity of 22kAIC at 120V.
How is the neutral connected on the QE115H breaker?
The QE115H features a pigtail neutral wire that must be connected directly to the neutral bus bar in the load center to ensure proper ground fault equipment protection.
What applications typically require a 30mA GFEP breaker like the QE115H?
GFEP breakers with a 30mA threshold are commonly used to protect equipment such as heat trace cables, snow melting equipment, and industrial machinery from damaging line-to-ground faults where a standard 5mA GFCI might experience nuisance tripping.
Is there a newer replacement model for the Siemens QE115H?
Yes, the Siemens QE115H has been replaced by the Q115EGH model, which serves as the direct equivalent for 15A, 1-pole GFEP applications.
