Siemens QE260H GFEP Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
Quantity

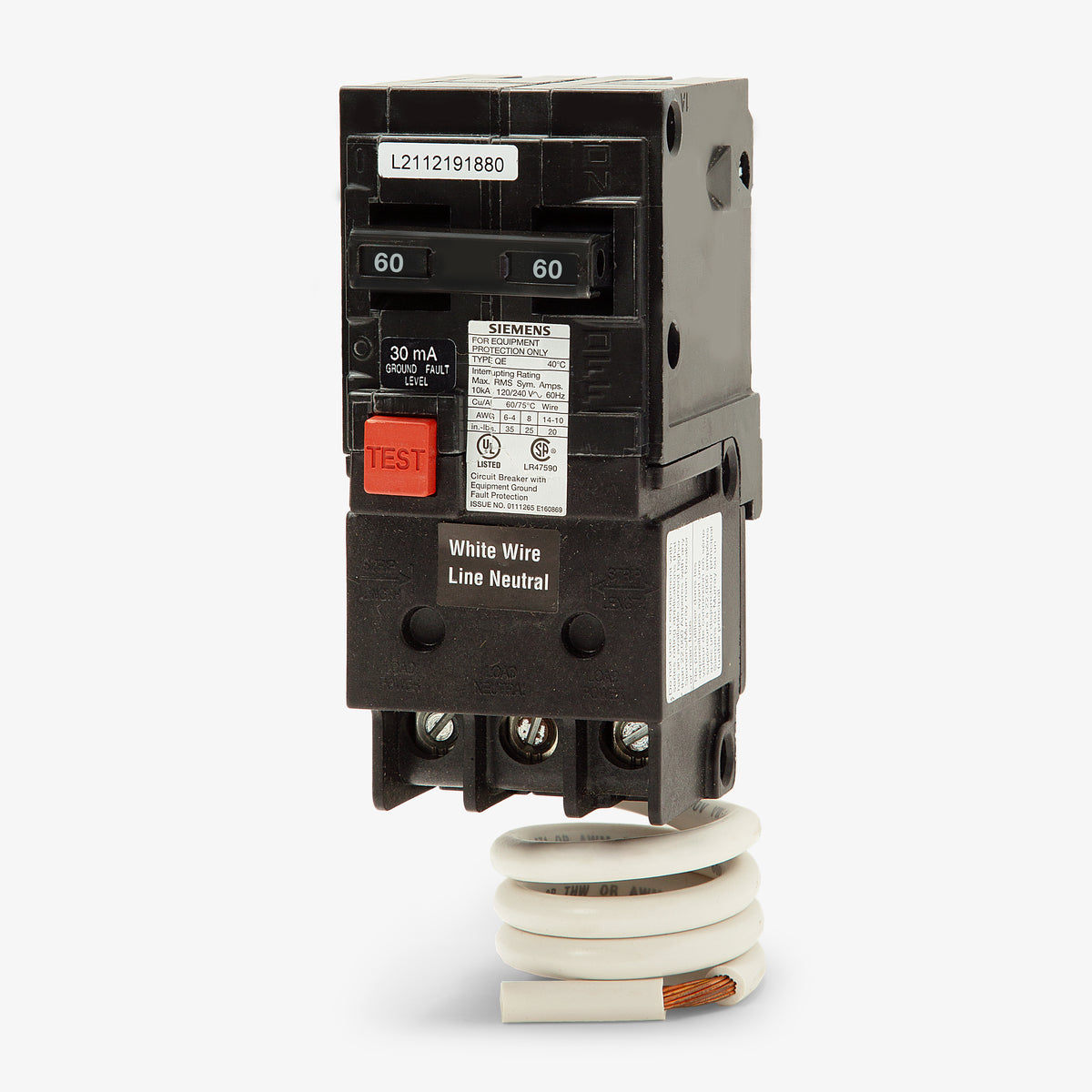

Siemens QE260H - 60A GFEP Miniature Circuit Breaker
New
Quantity
Description
Delivering high interrupting capacity, the Siemens QE260H is a 60A equipment protection breaker rated for 22kAIC. It provides a 30mA trip threshold to safeguard machinery from line-to-ground faults. The two-pole plug-on device mounts into Siemens EQ, PL, ES, and Ultimate load centers. It includes a pigtail neutral and replaces the Q260EGH model. This thermal-magnetic unit features a common trip mechanism and is HACR rated for HVAC applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QE260H |
| Series | QE |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |

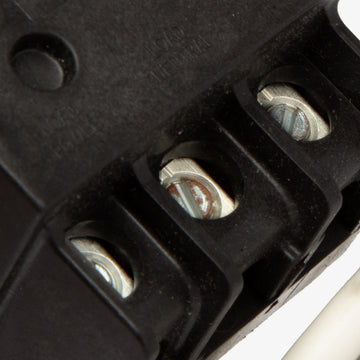

| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Load Centers, EQ, PL, ES, Ultimate Load Centers |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip |
Product FAQs
5 answersWhat is the ground fault trip threshold for the Siemens QE260H?
The QE260H is a Ground Fault Equipment Protection (GFEP) breaker with a 30mA trip threshold. It is designed to protect machinery and equipment, such as heat trace cables, from line-to-ground faults rather than providing the 5mA personnel protection of a standard GFCI.
Can I install the QE260H in any Siemens panel?
The QE260H is designed specifically for Siemens EQ, PL, ES, and Ultimate series load centers. It utilizes a standard plug-on configuration and requires two full spaces in the panel.
What is the direct replacement for the obsolete Siemens Q260EGH?
The Siemens QE260H is the direct, manufacturer-approved replacement for the older Q260EGH equipment protection breaker.
How does the QE260H connect to the panel neutral?

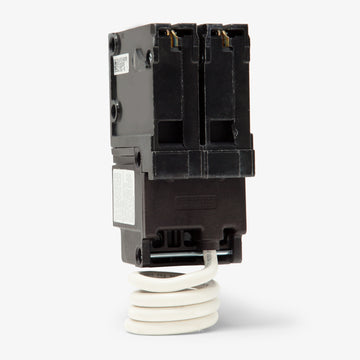

This breaker includes a factory-installed pigtail neutral wire. The pigtail must be routed and secured to the neutral bus bar in the load center for the 30mA ground fault sensing circuitry to function correctly.
Is the QE260H breaker HACR rated for HVAC applications?
Yes, the QE260H carries an HACR rating, making it approved for use with heating, air conditioning, and refrigeration equipment requiring a 60A, 240V circuit with equipment-level ground fault protection.
