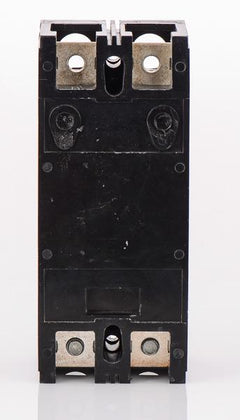

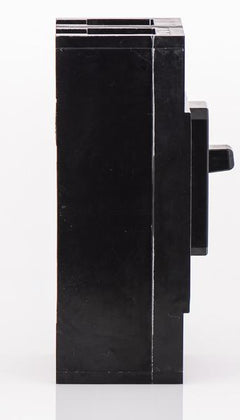

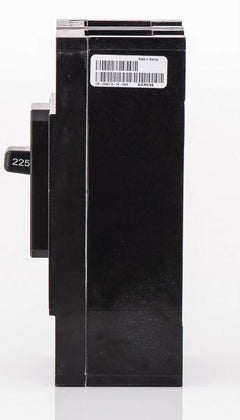

Siemens QJ22B225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Bolt-On
Siemens
QJ22B225
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ22B225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B225 |
| Series | QJ |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens QJ22B225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B225-R |
| Series | QJ |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
200A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the Siemens QJ22B225 is a 2-pole, 225A molded case circuit breaker. It operates at 240VAC and utilizes thermal-magnetic trip technology. This QJ-frame breaker installs into Siemens P1, P2, and P3 panelboards, as well as compatible meter centers. For newer installations, this unit is replaced by the QR22B225. Rated for 10kAIC at 240V, the breaker is HACR rated and designed for reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B225 |
| Series | QJ |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the QJ22B225?
This breaker is designed for installation in Siemens P1, P2, and P3 panelboards. It is also compatible with select Siemens meter centers and enclosures.
Can the Siemens QJ22B225 replace legacy ITE breakers?
Yes, Siemens acquired ITE, and the QJ22B225 serves as a direct replacement for older ITE QJ22B225 breakers used in legacy panelboards and switchboards.
What is the modern replacement for the QJ22B225?
For newer installations or panel upgrades, the QJ frame has largely been superseded by the QR frame. The direct modern equivalent is the QR22B225, though a mounting kit may be required depending on the panelboard.
What wire sizes and materials do the lugs accept?
The load side lugs on this breaker accept 6 AWG to 300 kcmil copper (Cu) wire, or 4 AWG to 300 kcmil aluminum (Al) wire.
What type of trip unit is installed in the QJ22B225?
It features a non-interchangeable thermal magnetic trip unit. It provides fixed long-time (L) protection for overloads and fixed instantaneous (I) protection for short circuits.
How does this breaker connect to the panelboard bus?
The QJ22B225 utilizes a bolt-on connection, meaning it must be mechanically bolted directly to the panelboard busbars for a secure, vibration-resistant electrical connection.
