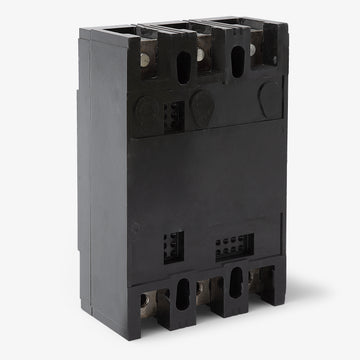

Siemens QJ23B060H Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Siemens
QJ23B060H
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B060H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B060H - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ23B060H - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B060H |
| Series | QJ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Sold out
Quantity
Siemens QJ23B060H - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B060H-R |
| Series | QJ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, the Siemens QJ23B060H is a 3-pole, 60A MCCB offering high interrupting capacity. It utilizes a thermal-magnetic trip unit for reliable long-time and instantaneous (LI) protection. This unit-mount breaker installs easily into Siemens meter centers, panelboards, and switchboards. It comes equipped with lug terminals accommodating up to 300 kcmil wire. With a robust 42 kAIC rating at 240VAC, this QJ frame device handles elevated fault currents.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B060H |
| Series | QJ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
6 answersWhich Siemens panelboards accept the QJ23B060H circuit breaker?
This QJ-frame breaker is compatible with Siemens meter centers, switchboards, and P-Series panelboards, including P1, P2, and P3 distribution panels.
What is the difference between the Siemens QJ and QR breaker frames?
The QR frame is the direct, modern successor to the legacy QJ frame. QR breakers share the exact same form factor and mounting dimensions as QJ breakers like the QJ23B060H, allowing for a direct drop-in retrofit.
What does the H suffix indicate on the QJ23B060H catalog number?
The H indicates a high interrupting rating. While standard QJ23B060 breakers are rated for 10kAIC at 240VAC, the QJ23B060H is built to safely clear fault currents up to 42kAIC.
Are lugs included with the QJ23B060H, and what are the conductor limits?
Yes, load-side lugs are included standard. The mechanical lugs accept 6 AWG to 300 kcmil copper conductors, or 4 AWG to 300 kcmil aluminum conductors.
How is the QJ23B060H installed into a panelboard?
This is a unit-mount, bolt-on circuit breaker. It requires bolted connections to the panelboard bus or mounting strap, which provides a secure, vibration-resistant connection for commercial applications.
Are the thermal and magnetic trip points adjustable on this breaker?
No, the QJ23B060H utilizes a fixed thermal and fixed magnetic (LI) trip unit. Both the long-time overload and instantaneous short-circuit protection settings are factory calibrated and non-adjustable.
