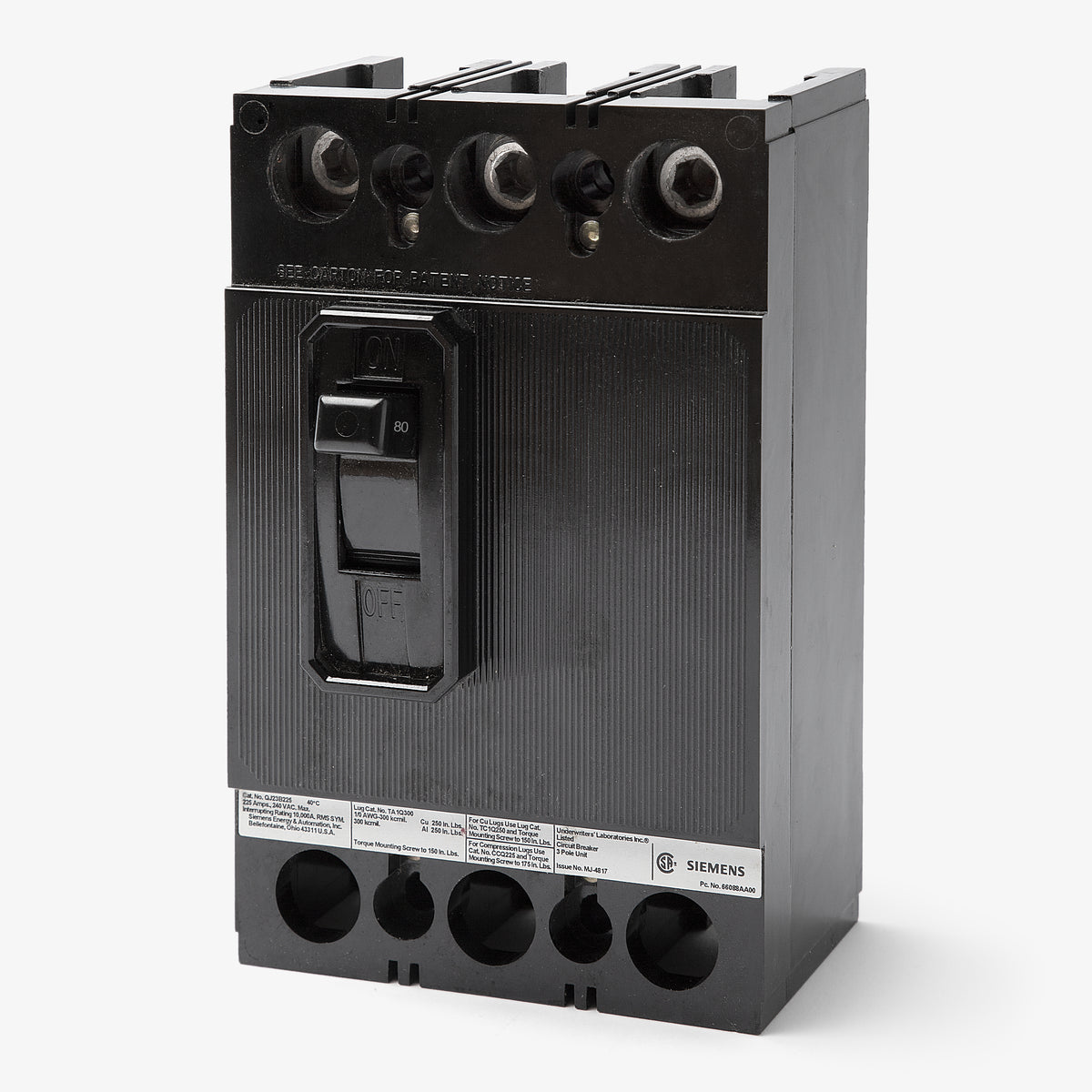

Siemens QJ23B080L Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
Siemens
QJ23B080L
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B080L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B080L - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial environments, the Siemens QJ23B080L is a three-pole, 80A molded case circuit breaker. It delivers dependable long-time and instantaneous (LI) protection through a fixed thermal-magnetic trip mechanism. This unit mount breaker is designed for individual mounting, enclosures, and meter centers. It includes line and load lugs for versatile installation. Note that this model is replaced by the QR23B080L.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B080L |
| Series | QJ |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Meter Centers, Individual Mounting |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
4 answersWhat is the direct replacement for the Siemens QJ23B080L?
Siemens has replaced the QJ23B080L with the QR23B080L. The QR frame serves as the modern equivalent for this breaker, though the QJ23B080L is still utilized for exact replacements in existing equipment.
Does the QJ23B080L include terminal lugs?

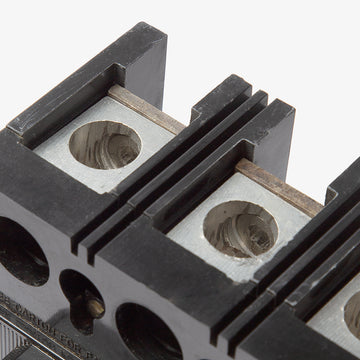

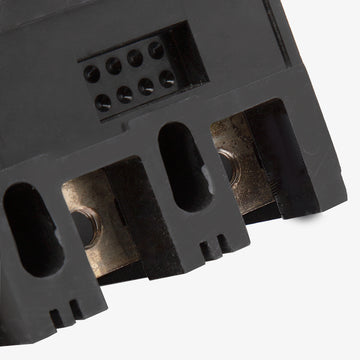

Yes, this feed-thru breaker includes factory-installed line and load lugs. They are dual-rated for copper (6 AWG to 300 kcmil) and aluminum (4 AWG to 300 kcmil) conductors.
Is the QJ23B080L compatible with standard residential load centers?
No. This is a unit-mount breaker designed for individual mounting, meter centers, and specific enclosures. It does not mount directly to standard load center bus bars.
Are the trip settings adjustable on the QJ23B080L?
No. This breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. The trip points cannot be modified in the field.
