Siemens QJ23B10000S01 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Quantity

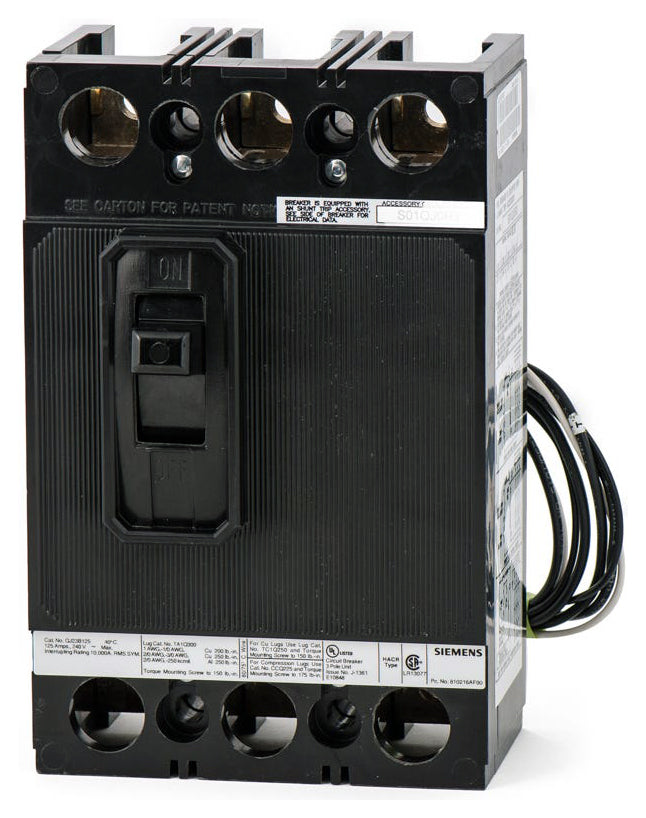

Siemens QJ23B10000S01 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for commercial and industrial applications, this 100A thermal-magnetic breaker provides reliable long-time and instantaneous protection. It installs into Siemens panelboards, switchboards, and motor control centers requiring a bolt-on connection. The factory-installed 120/240VAC shunt trip allows for remote tripping capabilities, while the 10kAIC rating at 240V ensures standard fault protection. Note that this QJ frame unit is replaced by the QR23B100 for future upgrades.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B10000S01 |
| Series | QJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip 120/240VAC (Factory Installed, Suffix 00S01), Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat does the S01 suffix indicate on the QJ23B10000S01 catalog number?
The S01 suffix designates a factory-installed 120/240VAC shunt trip. This internal accessory allows the breaker to be tripped remotely via an external control signal, which is commonly used for emergency stop circuits or automated load shedding.
Is the QJ23B10000S01 breaker still in active production?
Siemens has phased out the QJ frame in favor of the newer QR frame. The direct modern equivalent for this unit is the QR23B100, though you will also need the S01QR2 accessory to replicate the factory-installed shunt trip.
Can the trip settings on the QJ23B10000S01 be adjusted in the field?
No. This breaker features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous trip functions are factory calibrated and cannot be modified by the installer.
Is the 10kAIC rating sufficient for commercial switchboards?
A 10kAIC rating at 240VAC is suitable for light commercial applications where the available fault current is verified to be 10,000 amps or less. For facilities with higher available fault currents, a breaker with a higher interrupting capacity will be required.
What are the safety requirements for replacing a bolt-on QJ frame breaker?
Bolt-on breakers require direct physical connection to the busbars. The panelboard or switchboard must be completely de-energized, locked out, and tagged out before installation. Verify zero voltage with a properly rated multimeter before unbolting the existing unit or installing the replacement.
