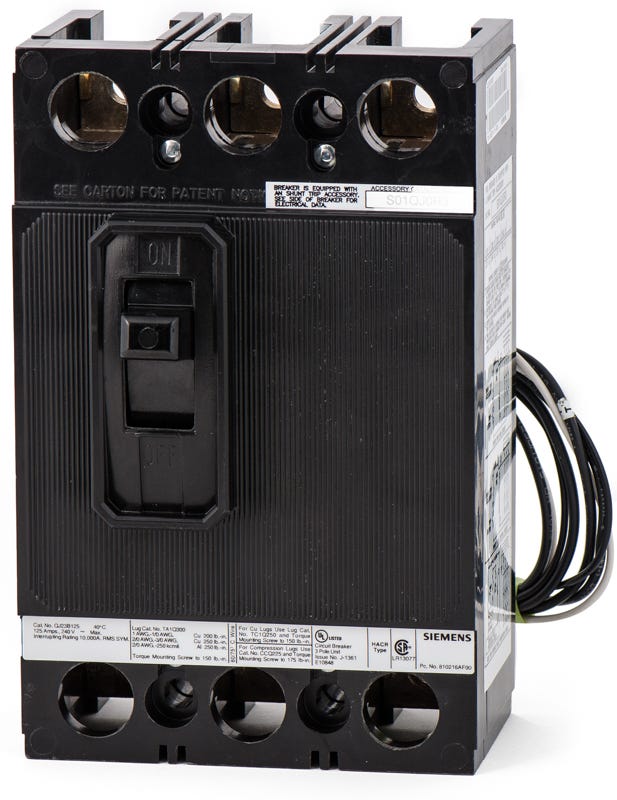

Siemens QJ23B15000S01 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Quantity
Siemens QJ23B15000S01 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens QJ23B15000S01 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B15000S01 |
| Series | QJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens QJ23B15000S01 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B15000S01 |
| Series | QJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Description
Built for commercial facilities, the Siemens QJ23B15000S01 is a 3-pole, 150A molded case circuit breaker. It provides thermal-magnetic protection while allowing remote circuit disconnection via an integrated 120/240VAC shunt trip. Engineered with a bolt-on mounting style, it ensures a secure connection in Siemens P1, P2, and P3 panelboards. For legacy upgrades, it is replaced by the QR23B150 with an S01QR2 shunt trip. It delivers a 10kAIC rating at 240VAC and features fixed LI trip functions.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B15000S01 |
| Series | QJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat is the recommended replacement for the discontinued QJ23B15000S01?
Siemens recommends replacing this legacy QJ frame breaker with a QR23B150 circuit breaker paired with an S01QR2 shunt trip accessory.
What does the 00S01 suffix indicate on this circuit breaker?
The 00S01 suffix indicates that the breaker includes a factory-installed 120/240V AC shunt trip, which allows for remote circuit disconnection via an external voltage signal.
Can this QJ frame breaker be installed in modern Siemens panelboards?
Yes, this bolt-on breaker is compatible with Siemens P1, P2, and P3 panelboards, as well as standard switchboards and enclosures designed for QJ or QR frame devices.
Does this breaker require copper wire, or is aluminum acceptable?
The factory lugs are dual-rated for both copper and aluminum conductors. They accept 6 AWG to 300 kcmil copper wire or 4 AWG to 300 kcmil aluminum wire.
Can the trip curve be adjusted for specific load requirements?
No, the thermal-magnetic trip unit is fixed. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
