Siemens QJ23B175H00S01 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Quantity

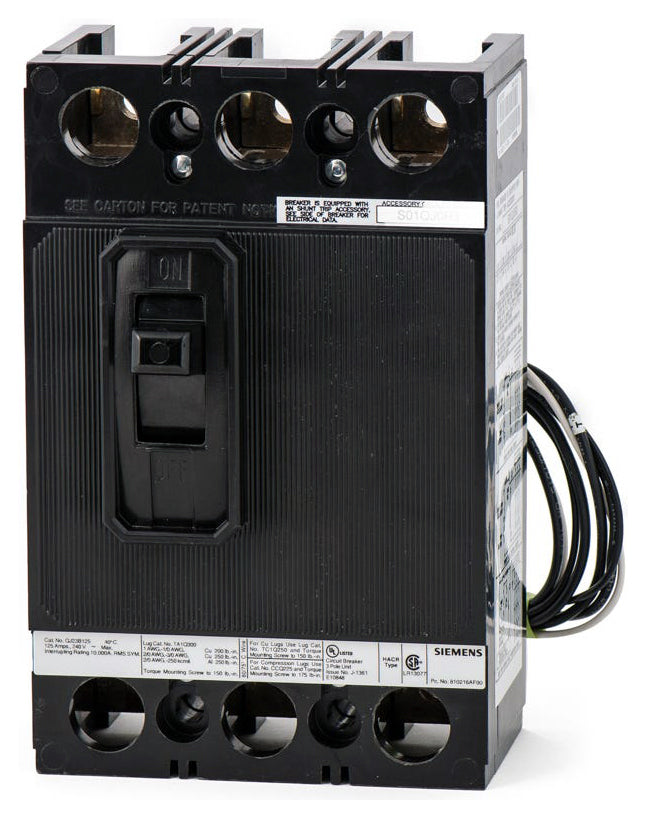

Siemens QJ23B175H00S01 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Featuring a factory-installed 120/240VAC shunt trip, this 3-pole molded case circuit breaker enables remote disconnect functionality. It delivers fixed thermal and magnetic (LI) protection for commercial and industrial electrical systems. The bolt-on mounting style ensures a rigid, secure connection within Siemens P1, P2, and P3 panelboards or enclosures. This legacy QJ-frame unit is replaced by the QR23B175H. It boasts a 42kAIC rating at 240VAC and includes load side lugs for installation.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B175H00S01 |
| Series | QJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Meter Centers, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
7 answersWhat do the "H" and "00S01" suffixes mean in the QJ23B175H00S01 catalog number?
The "H" indicates that this is a high-interrupting QJ2H frame rated at 42kAIC at 240V AC. The "00S01" suffix designates a factory-installed 120/240V AC shunt trip.
Is the Siemens QJ23B175H00S01 still in active production?
No, the Siemens QJ frame has been discontinued and replaced by the QR frame. The QR series shares the exact same form factor and mounting configuration for direct retrofitting into existing panels.
Which panelboards accept the QJ23B175H00S01 circuit breaker?
This bolt-on breaker is compatible with Siemens P1, P2, and P3 panelboards, as well as Siemens meter centers and enclosures.
Can the thermal-magnetic trip unit be swapped in the field?
No. Siemens QJ frame circuit breakers are built with non-interchangeable trip units. The breaker is shipped fully assembled and the trip unit cannot be removed or modified.
Is the QJ23B175H00S01 UL Listed for reverse feed applications?
Yes. Because the trip unit is non-interchangeable, this QJ frame breaker is UL Listed and suitable for reverse feed applications where power flows from the load side to the line side.
Can I add auxiliary switches or other internal accessories to this breaker in the field?
No. Internal accessories for Siemens QJ frame breakers, including shunt trips and auxiliary switches, are factory-installed only and cannot be added or modified in the field.
What is the catalog number for the replacement lugs on the QJ23B175H00S01?
The standard replacement lug kit for this breaker is catalog number TA1Q300, which is rated for 75C wire.
