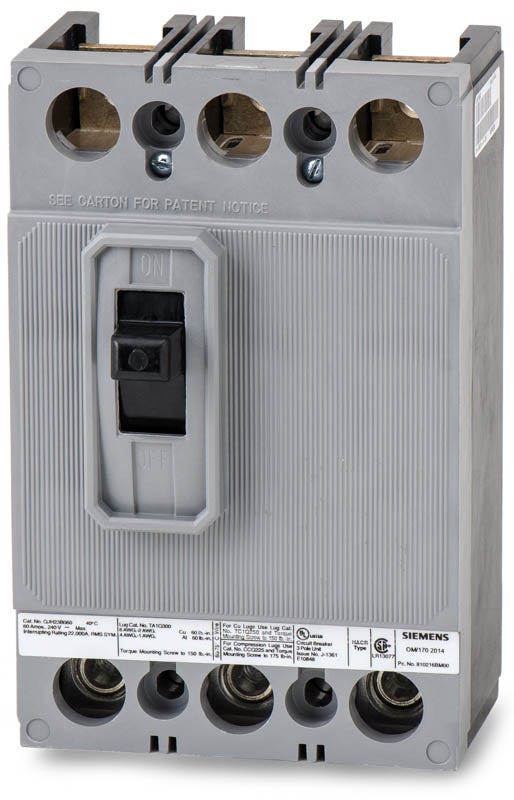

Siemens QJH23B150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Siemens
QJH23B150
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH23B150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH23B150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens QJH23B150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH23B150 |
| Series | QJH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Quantity
Siemens QJH23B150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH23B150 |
| Series | QJH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON family, this 150A, three-pole molded case circuit breaker provides reliable thermal-magnetic protection for commercial applications. The bolt-on design mounts securely into Siemens P1, P2, and P3 panelboards, switchboards, and motor control centers. Note that this QJ frame unit is superseded by the QRH23B150. Featuring a 22kAIC interrupt rating at 240VAC, it includes factory-installed load side lugs and a reverse feed rated mechanism.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH23B150 |
| Series | QJH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the QJH23B150 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards, motor control centers, and meter centers.
What wire sizes are accepted by the factory lugs on the QJH23B150?
The standard load side lugs accept 6 AWG to 300 kcmil copper wire, or 4 AWG to 300 kcmil aluminum wire.
What is the difference between the QJ23B150 and the QJH23B150?
The primary difference is the interrupting rating. The QJ23B150 has a standard 10kAIC rating at 240V, while the QJH23B150 features a higher interrupting capacity of 22kAIC at 240V. Both share the same physical QJ frame and bolt-on mounting.
What is the modern replacement for the QJH23B150?
The QJH23B150 has been superseded by the Siemens QRH23B150. The newer QR frame breakers share the exact same form factor and mounting dimensions as the legacy QJ frame, allowing for a direct retrofit in existing panels.
Can the QJH23B150 be reverse fed?
Yes. Siemens QJ frame breakers with non-interchangeable trip units, including the QJH23B150, are suitable for reverse feed applications according to UL 489 standards.
Is the trip unit on the QJH23B150 adjustable?
No. This breaker features a fixed thermal and fixed magnetic trip unit with long-time and instantaneous (LI) trip functions. The trip unit is non-interchangeable and cannot be adjusted in the field.
