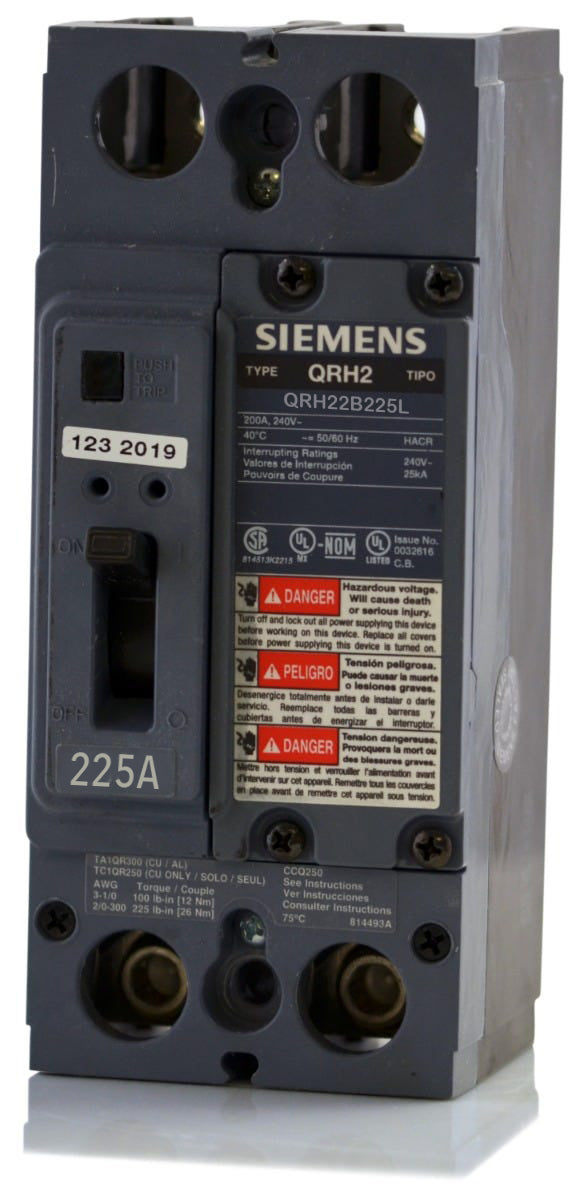

Siemens QRH22B225L - 225A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU QRH22B225L
Free Shipping Over $99

Siemens QRH22B225L - 225A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU QRH22B225L
Select Item Condition
Earn 637 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens QRH22B225L - 225A 2 Pole Molded Case Circuit Breaker

New

$637.50 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered for elevated fault currents, the Siemens QRH22B225L delivers 25kAIC of interrupting capacity at 240VAC across 2 poles. It features a thermal-magnetic trip unit providing LI protection. This 225A unit-mount breaker includes line and load side lugs, making it ideal for individual enclosures and standalone mounting. It also functions as an exact replacement for the discontinued QJ22B225. The QRH frame is HACR rated, UL listed, and approved for reverse feed applications.

Specifications

Brand Siemens
Series QRH
Part Number QRH22B225L
Amperage 225A
Voltage 240VAC
Poles 2
Phase 1
AIC Rating 25kA @ 240VAC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Siemens Enclosures, Individual Mount
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 4/0 AWG - 300 kcmil (Al/Cu)
Max Wire 300 kcmil
Min Wire 4/0 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release
Accessories Line & Load Side Lugs
Standards CSA C22.2 No. 5, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip
