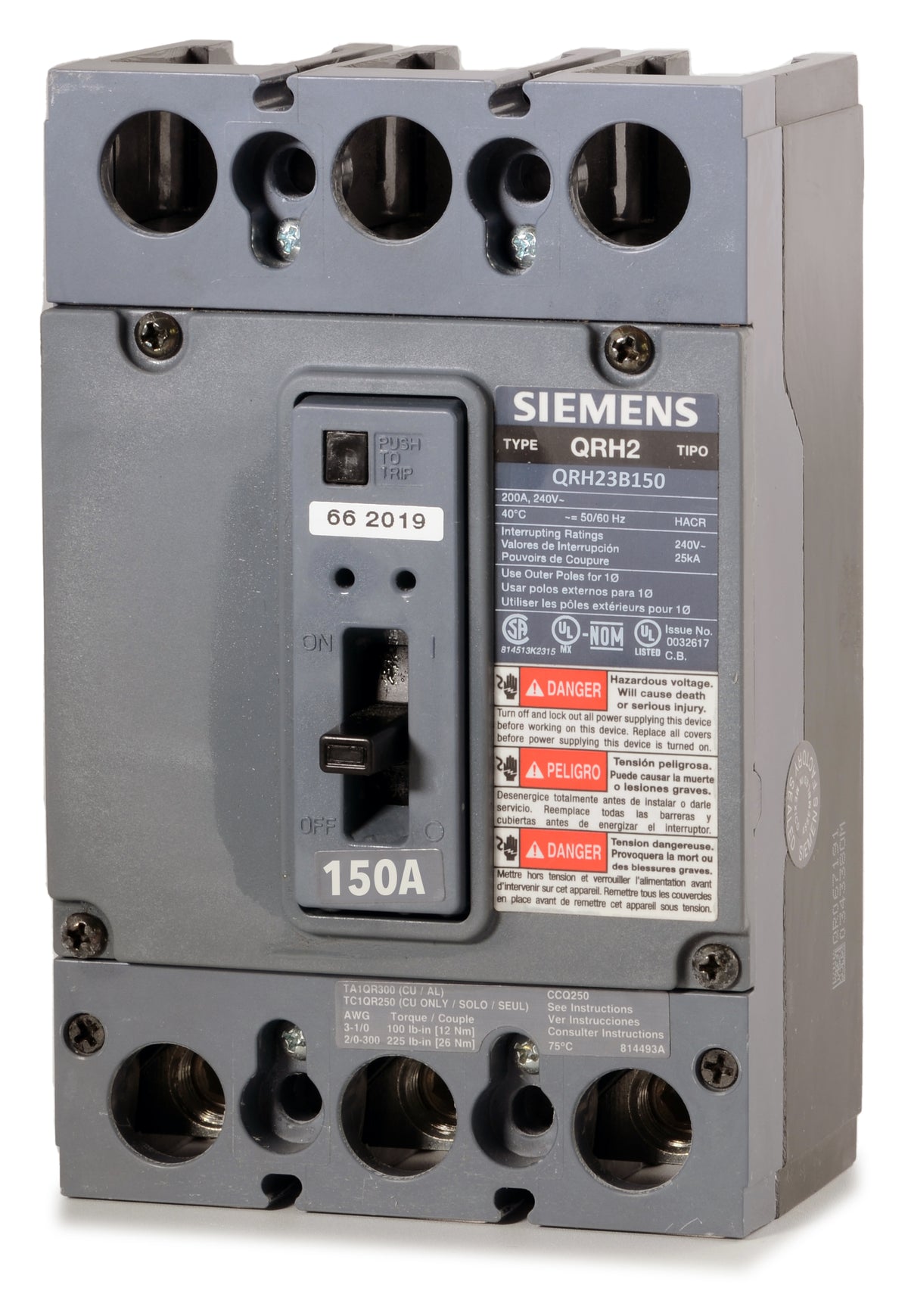

Siemens QRH23B150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Siemens
QRH23B150
Molded Case Circuit Breaker
Brand
Siemens
SKU
QRH23B150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QRH23B150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QRH23B150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QRH23B150 |
| Series | QRH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Push-to-Trip, Non-Interchangeable Trip |
Quantity
Siemens QRH23B150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | QRH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Push-to-Trip, Non-Interchangeable Trip |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Siemens QRH23B150 is a 3-pole, 150A molded case circuit breaker from the SENTRON family. This bolt-on MCCB installs into Siemens P1, P2, and P3 panelboards or switchboards. It serves as a drop-in replacement for the legacy QJH23B150, simplifying facility upgrades. Featuring a 25kAIC rating at 240VAC, it includes fixed long-time and instantaneous (LI) trip functions. It is HACR rated and supports reverse feed setups.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QRH23B150 |
| Series | QRH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Push-to-Trip, Non-Interchangeable Trip |
Product FAQs
7 answersCan the QRH23B150 replace older QJ frame circuit breakers?
Yes, the Siemens QR series is engineered with the same form factor and mounting as the legacy QJ series. The QRH23B150 serves as a direct drop-in replacement for the obsolete QJH23B150.
Does the QRH23B150 come with line and load side lugs?
Load side lugs are supplied as standard on this bolt-on breaker. They accept copper or aluminum conductors from 3 AWG to 300 kcmil. Line side connections are typically bolted directly to the panel bus.
Can the Siemens QRH23B150 be reverse fed?
Yes, this circuit breaker supports reverse feed setups for installation in compatible Siemens P1, P2, and P3 panelboards or switchboards.
What does the H in QRH23B150 indicate?
In the Siemens QR family, the H designates a high interrupting capacity. The QRH23B150 delivers a 25kAIC rating at 240VAC, providing greater fault protection than standard 10kAIC QR2 models.
Is the QRH23B150 HACR rated for HVAC applications?
Yes, this molded case circuit breaker is HACR rated, meaning it is approved to protect heating, air conditioning, and refrigeration equipment circuits.
What ambient temperature is this breaker calibrated for?
The QRH23B150 is calibrated for standard operation at a 40 degrees Celsius ambient temperature. Operating the breaker in higher temperature environments will require derating.
Are the trip settings on the QRH23B150 adjustable?
No, this breaker features a non-interchangeable thermal magnetic trip unit with fixed long time and instantaneous functions. The trip parameters cannot be adjusted in the field.
