Siemens QS2200H Miniature Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Siemens
QS2200H
Miniature Circuit Breaker
Brand
Siemens
SKU
QS2200H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

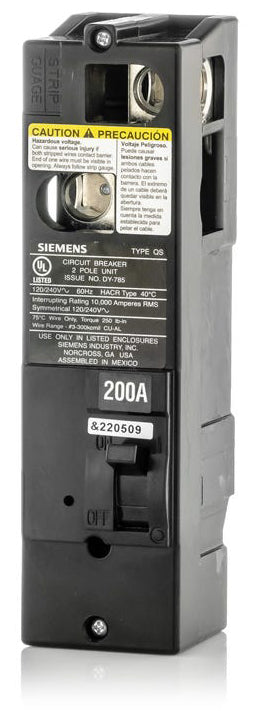

Siemens QS2200H - 200A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Built to handle higher fault currents, the Siemens QS2200H delivers 200 amps of protection with a 22kAIC rating at 120/240VAC. This two-pole plug-on main breaker is specifically manufactured for Siemens Power Mod meter stacks and Uni-PAK metering systems. The convenient side-wired design and right-hand bend wiring streamline the installation process while eliminating the need for filler plates. It also serves as an exact substitute for the legacy Murray MDH2200 main circuit breaker.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QS2200H |
| Series | QS |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Power Mod Meter Stacks, Uni-PAK Metering, Legacy Murray Load Centers |
| Wire Gauge | 3 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Side-wired design, Right-hand bend wiring, No filler plates required, Common Trip |
Product FAQs
5 answersWhich metering systems and panels accept the QS2200H?
This breaker is specifically designed for Siemens Power Mod Meter Stacks, Uni-PAK Metering systems, and legacy Murray load centers.
Can the Siemens QS2200H replace older Murray main breakers?
Yes, the QS2200H serves as a direct replacement for the discontinued Murray MDH2200 main circuit breaker in legacy Murray load centers.
What is the difference between the Siemens QS2200 and the QS2200H?
The H in the catalog number designates a high interrupting capacity. The standard QS2200 is rated for 10kAIC at 240V, while the QS2200H is built to handle higher fault currents with a 22kAIC rating.
Does the QS2200H require filler plates when installed in a meter stack?
No, this breaker features a side-wired design and right-hand bend wiring that allows for clean cable routing without the need for filler plates.
Is the QS2200H designed for use as a main or branch breaker?
The QS2200H is engineered to function as a main breaker disconnect in multi-family metering enclosures and compatible residential load centers.
