Siemens RD63F200 Molded Case Circuit Breaker Frame Only
Quantity
Core Specs
See full specs

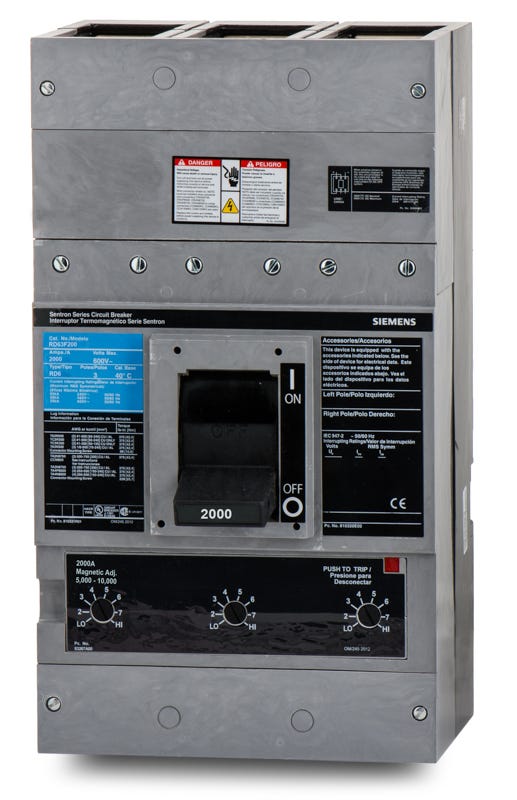

Siemens RD63F200 - 2000A 3 Pole Molded Case Circuit Breaker Frame Only
New
Quantity
Description
Siemens RD63F200 Sentron circuit breaker frame has an RD physical frame, 2000A frame amperage, 3 poles and a 600VAC voltage rating. Interrupting ratings are 25kAIC at 600V and 50kAIC at 480V. It has Feed-Thru mounting, line and load side lugs, and a wire range of 300KCM to 600KCM, Cu. The frame measures 9 in wide and 16 in high and has UL and IEC approvals. Frame only; trip unit not included.Specifications
| Amperage | 2000A |
|---|---|
| Voltage | 480VAC, 600VAC |
| Series | Sentron |
| Poles | 3 |
| Phase | 3 |
|---|---|
| Interrupting Rating | 50kAIC at 480VAC, 25kAIC at 600VAC |
| Mounting Type | Feed-Thru |
|---|---|
| Frame Type | RD |
| Connection Type | Feed-Thru |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 6.19 |
| Width (in) | 9 |
| Height (in) | 16 |
| Wire Gauge | 300KCM-600KCM (Cu) |
| Approval | IEC, UL |
|---|
| Brand | Siemens |
|---|---|
| MPN | RD63F200 |
| UPC | 783643226234 |
Product FAQs
5 answersHow should I use the 600VAC rating when selecting this frame?
The 600VAC rating guides selection by AC system voltage. Choose it for an application whose system voltage does not exceed 600VAC, and evaluate the interrupting rating separately at the operating voltage.
How do the interrupting ratings affect fault-current selection?
At 600V, compare available fault current with the 25kAIC rating; at 480V, compare it with the 50kAIC rating. The interrupting rating must be at least as high as the available fault current at the installation point.
What does the 3-pole configuration mean for circuit selection?
The 3-pole configuration has three circuit paths. Choose this pole count when the circuit design requires three poles of switching.
What conductors can I use, and how are they terminated?
The wire range is 300KCM to 600KCM copper, with lugs on both the line and load sides. Select copper conductors within that range and size them for the circuit's electrical requirements.
What dimensions and weight should I account for during installation planning?
The frame is 16 in high, 9 in wide, and weighs 52.000000 lb. Use those dimensions when planning installation space, and account for the weight when arranging handling and support.
