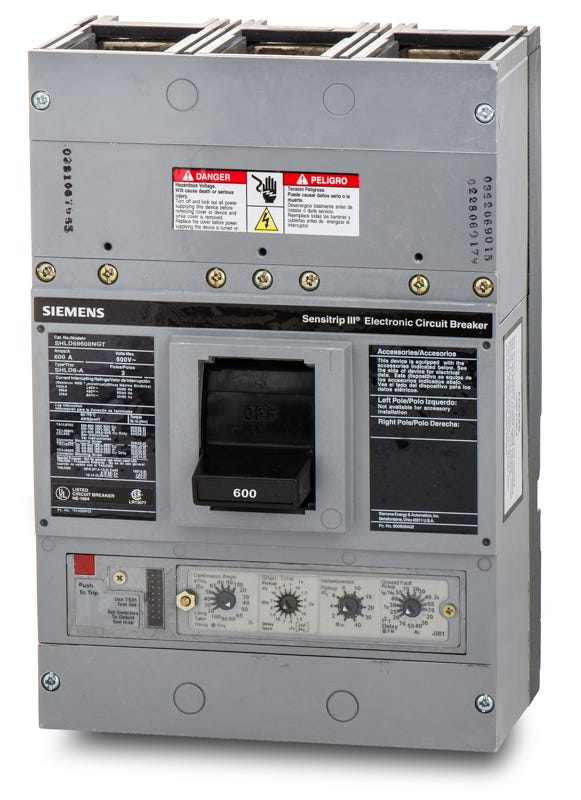

Siemens SHLD69600NGT Molded Case Circuit Breaker
- 600A
- 3 Pole
- Bolt-On
Quantity
Siemens SHLD69600NGT - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for maximum coordination, the Siemens SHLD69600NGT is a 3-pole, 600A electronic trip breaker in the Sentron LD frame. This bolt-on MCCB installs into Siemens Sentron panelboards, switchboards, and motor control centers. It is replaced by the 3VA6460-6JQ31-0AA0 using a strap kit. The Sensitrip III unit offers adjustable long-time, short-time, instantaneous, and ground fault (LSIG) settings. It features true RMS sensing, a visual trip indicator, and a 65kAIC rating at 480VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | SHLD69600NGT |
| Series | SHLD6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 120-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Sentron Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, True RMS Sensing, Visual Trip Indicator |
Product FAQs
4 answersWhat does the NGT suffix designate on the SHLD69600NGT catalog number?
The NGT suffix indicates the breaker is equipped with a solid-state Sensitrip electronic trip unit featuring LSIG (Long-Time, Short-Time, Instantaneous, and Ground-Fault) functions. This replaces fixed thermal-magnetic elements with precise, field-adjustable trip coordination.
Can the Siemens SHLD69600NGT be reverse fed?
No. According to Siemens catalog specifications, while standard SLD6 frames support reverse feeding, the high-interrupting SHLD6 frame is not acceptable for reverse connection applications. The line and load connections must remain strictly oriented.
Does this breaker require a separate relay for ground fault protection?
No. The built-in LSIG electronic trip unit includes integrated equipment ground-fault protection. Electricians can adjust the ground-fault pickup and delay settings directly on the front of the breaker without installing external sensing relays.
Can this breaker replace older thermal-magnetic LD-frame models?
Yes. It shares the standard Siemens Sentron LD-frame footprint. It will physically mount in the same space as older thermal-magnetic SHLD6 breakers, allowing you to upgrade an existing panel or switchboard to solid-state LSIG protection.
