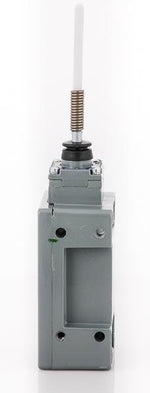

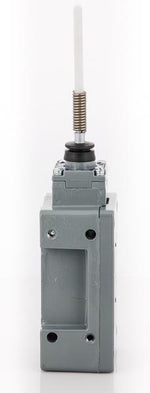

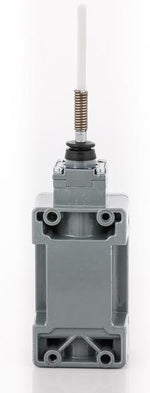

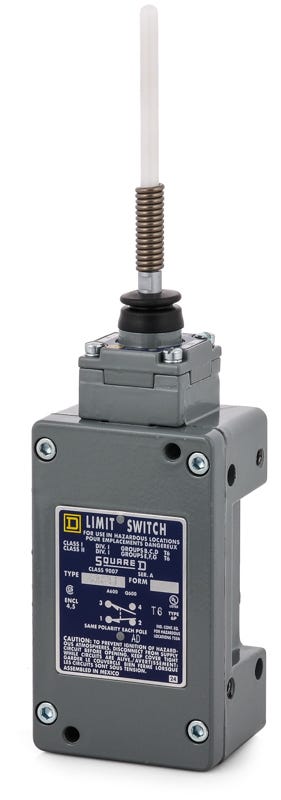

Square D 9007CR53J Limit Switch
The Square D 9007CR53J is a limit switch with a current rating of 10 Amps and a voltage rating of 600VAC/VDC. It features a snap action and a wobble stick actuator type. The 9007CR53J has a screw clamp terminal connection.
Specifications
| Amperage | 10 A |
|---|---|
| Voltage | 600VAC/VDC |
| Series | 9007CR |
| Poles | 1 |
| Terminal Connection | Screw Clamp |
|---|---|
| Length (in) | 2.08 |
| Width (in) | 2.72 |
| Height (in) | 10.35 |
| Wire Gauge | AWG 22 to AWG 12 |
| Duty Rating | Heavy Duty |
|---|---|
| Actuator Type | Wobble Stick |
| Action | Snap |
| Contact Configuration | 1NO, 1NC |
| Approval | CE, UL, CSA |
|---|---|
| NEMA Rating | 1, 2, 4, 6, 6P, 12, 13 |
| Temperature Rating | -20 to 185 °F |
| Body Material | Aluminum |
| Brand | Square D |
|---|---|
| MPN | 9007CR53J |
| UPC | 785901960799 |
