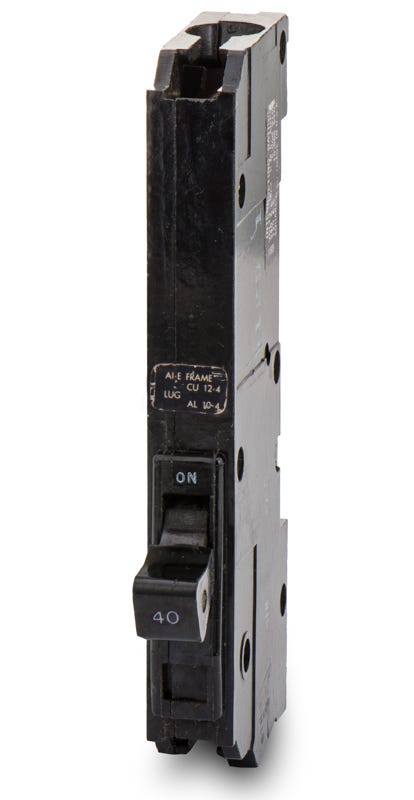

Square D A1B140 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Quantity
Square D A1B140 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the classic A1B series, this 40A single-pole molded case circuit breaker delivers thermal-magnetic protection for commercial and industrial environments. It operates at 120VAC with a 10kAIC interrupt rating. Designed specifically for bolt-on applications, it mounts into vintage Square D NA1B panelboards. When panel upgrades are required, this unit is replaced by the QOB140 using a specialized retrofit kit.Specifications
| Brand | Square D |
|---|---|
| Part Number | A1B140-R |
| Series | A1B |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | A1B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NA1B Panelboards |
| Wire Gauge | 8-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
7 answersWhat type of equipment uses the A1B140 circuit breaker?
This breaker is engineered specifically for legacy Square D NA1B panelboards. It is primarily used by electricians to maintain and service older commercial and industrial distribution systems rather than new installations.
What is the modern replacement for the A1B140 breaker?
If you are upgrading your panelboard, the A1B140 is typically replaced by the QOB140 circuit breaker. Note that installing a QOB breaker in an older NA1B panel requires a specialized retrofit kit.
What is the 277V equivalent to the A1B circuit breaker?
While the A1B140 is rated for 120VAC, Square D manufactured the Y1B series as the 277V equivalent for use in similar vintage commercial panelboards.
How is the A1B140 secured during installation?
It mounts directly to the bus of an NA1B panelboard using a bolt-on connection. Ensure the panel bus is de-energized before bolting the breaker in place. The load lugs accept 8 to 4 AWG copper or aluminum wire.
Can the A1B140 be used in DC electrical systems?
Yes, while primarily used for 120VAC applications, this breaker is also rated for 48VDC systems, making it suitable for specific control or battery applications.
Will the A1B140 fit into a standard Square D QO load center?
No. The A1B140 features a legacy A1B frame designed exclusively for NA1B panelboards. It is not physically compatible with modern QO or Homeline residential load centers.
How does the A1B140 respond to different types of electrical faults?
The breaker uses a thermal-magnetic mechanism. The thermal element provides a delayed trip for sustained overloads, while the magnetic element trips instantaneously to clear severe short circuits, protecting the panel and downstream wiring.
