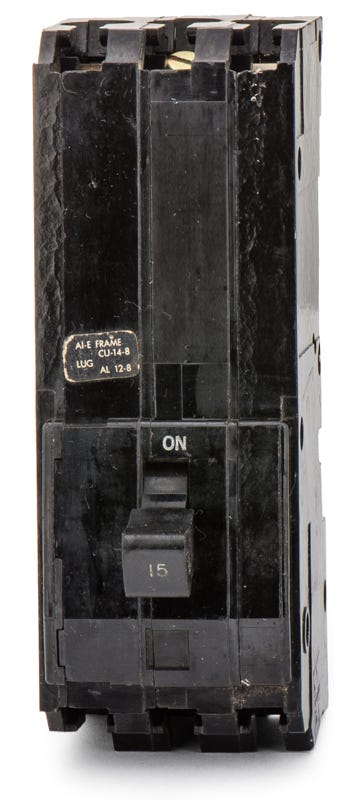

Square D A1B315 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
A1B315
Molded Case Circuit Breaker
Brand
Square D
SKU
A1B315
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D A1B315 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Delivering 15A of thermal-magnetic protection, the Square D A1B315 is a 3-pole molded case circuit breaker for commercial and industrial applications. It ensures reliable defense against overloads and short circuits. This legacy bolt-on breaker is manufactured to fit seamlessly into older Square D NA1B panelboards. It accepts 14-8 AWG copper or aluminum wire via the included load side lugs. With a 10kAIC rating at 240VAC, the unit features a long body profile and the Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | A1B315-R |
| Series | A1B |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NA1B Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Long Body |
Product FAQs
4 answersWhich panelboards are compatible with the Square D A1B315?
This legacy circuit breaker is engineered specifically to mount into older Square D NA1B panelboards. It features a distinct long-body profile and will not fit into modern QO, NQ, or I-Line distribution systems.
Can I replace an A1B315 with a standard QOB breaker?
No. Although both are bolt-on breakers manufactured by Square D, the A1B series has a unique mounting configuration and long-body profile designed exclusively for NA1B panelboards. A standard QOB breaker is not physically interchangeable.
Is the Square D A1B315 breaker still in active production?
No, the A1B series is an obsolete product line. Replacements are sourced to maintain existing vintage commercial and industrial infrastructure that utilizes NA1B panelboards.
Does the A1B315 include a visual trip indicator?
Yes, this breaker features Square D Visi-Trip technology, which provides a clear visual indication when the breaker has tripped due to an overload or short circuit.
